Binsfeld TorqueTrak 10K torque sensor

TorqueTrak 10K

The TorqueTrak 10K from Binsfeld Engineering is a non-contact telemetry system ideal for real-time measurement of torque. The system is perfect for short-term data collection and diagnostic testing. It is designed to operate in harsh field conditions and is suitable for a wide range of applications.

Key advantages for you:

User-friendly operation
Adjustable gain for users
Live measurement
Quick data capture
Function in tough field environments.

For sales or commercial inquiries please contact us at marine@insatech.com.

The Benefits Elaborated

The TorqueTrack 10K has several benefits, which has been listed below. We explain it more in-depth here:

Hassle-free operation and compatibility with various shaft sizes and torque levels.
No need for machine modifications or disassembly; calibration is performed off the shaft, with an intuitive display and keypad on the receiver.
Take full control with an infrared remote, handling transmitter functions such as channel selection, gain/range adjustment, shunt calibration, and low-power standby mode.
Enjoy dependable data transmission via clean, noise-free analog voltage or digital RS-232 output.
Extend transmitter battery life with a standby power mode, eliminating the need for battery disconnection.
Utilize up to 16 channels with a 500 Hz frequency response, allowing for simultaneous system use.
The rugged transmitter housing, featuring a V-groove and tape slot, is reinforced and injection-molded, ideal for demanding applications.
Customize the gain to optimize the strain/torque signal for your needs.
Keep your equipment protected on the go with the included durable, watertight carrying case.

Binsfeld RX10K Receiver For Torquetrak 10K 16 9

How does the TorqueTrack 10K benefit you?

We have listed the main advantages for you with the TorqueTrack 10K from Binsfeld Engineering below:

Hassle-free operation
No need for machine modifications or disassembly
Take full control with an infrared remote
Enjoy dependable data transmission
Extend transmitter battery life
Utilize up to 16 channels
Rugged transmitter housing
Customize the gain
Keep your equipment protected.

See also a more in depth explanation above here.

Need our help? Contact us now.

Typical Applications

The TorqueTrak 10K is designed to operate in harsh field conditions and is suitable for a wide range of applications., including:

Marine propulsion systems
Industrial machinery
Wind turbines.

Exactly what you need? Contact us here.

Simplified Operation for Long-lasting Accuracy in Torque Data

Control with Infrared Remote

Employ the infrared remote control for transmitter gain adjustments, remote shunt calibration activation, or switching the transmitter to standby power mode.

Streamlined System Adjustments

The multiline LCD receiver display and keypad simplify system tweaks, ensuring a straightforward experience.

Extended Battery Life

Low power consumption in the rugged transmitter leads to longer battery life, while advanced electronics guarantee precise and dependable torque data output.

Contents of the TorqueTrak 10K

The TorqueTrack 10K consist of a receiver, a transmitter and battery combo, as well as a remote, which all is explained below.

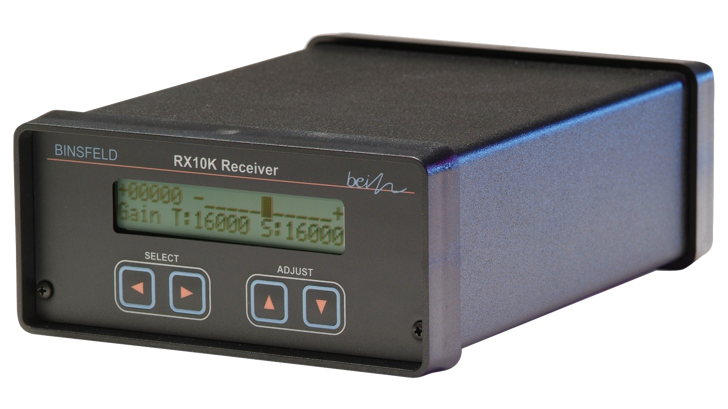

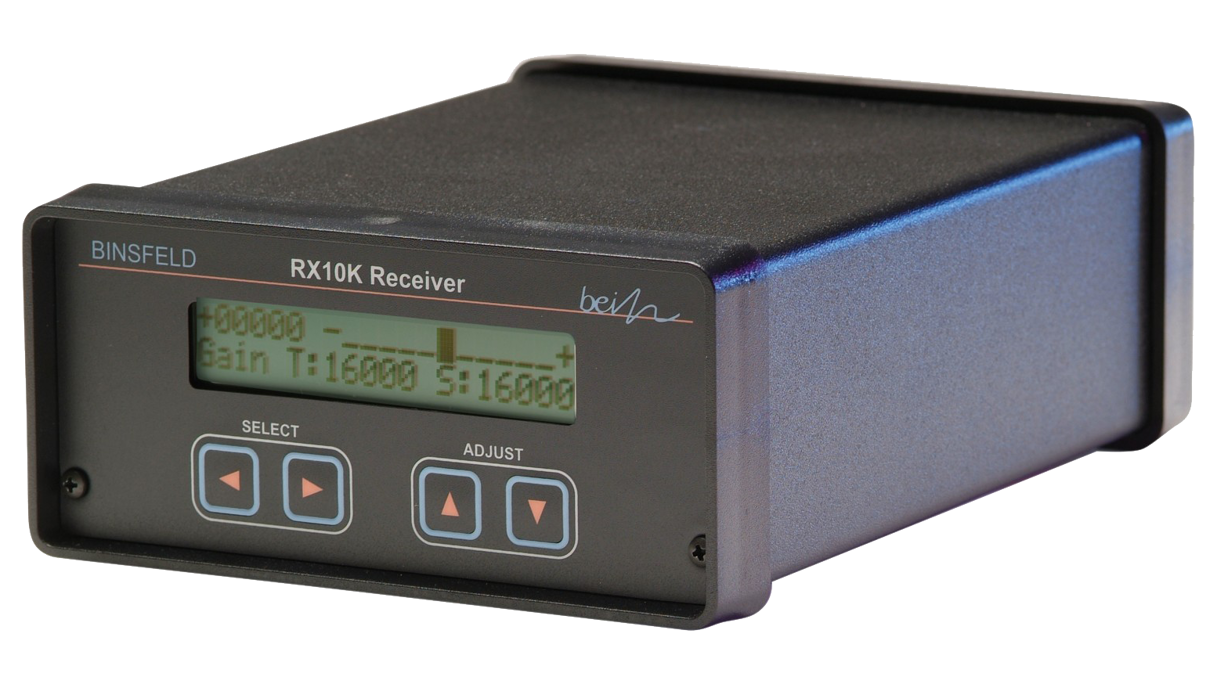

RX10K Receiver

The RX10K is a digital telemetry receiver that receives and processes the signals sent by the TorqueTrak 10K transmitter. It can be used with up to 16 transmitters simultaneously, allowing for the measurement of multiple rotating shafts at the same time. The RX10K features a user-friendly interface, providing real-time data, and a range of customization options to meet specific application requirements.

Need more information? Contact us here.

Insatech Binsfeld Torquetrak 10K Torque Sensor 16 9

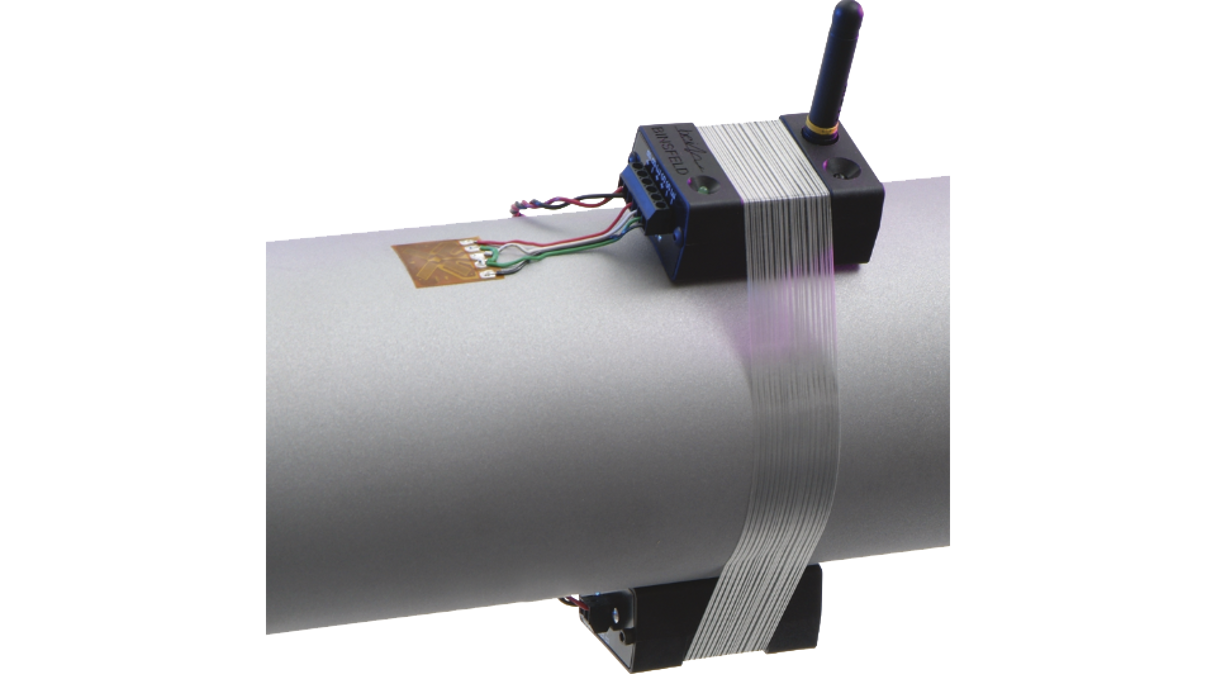

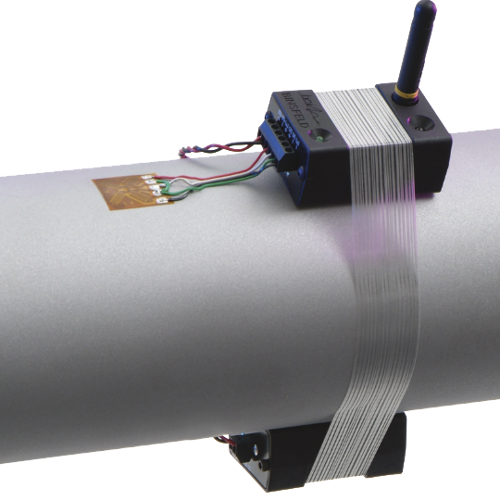

TX10K-S transmitter

The TX10K-S is a digital telemetry transmitter that wirelessly transmits torque data from rotating shafts to the RX10K receiver. It is designed to be easy to install, with a compact size and non-contact sensing technology that eliminates the need for additional shaft couplings or modifications.

Please, contact us if you need help!

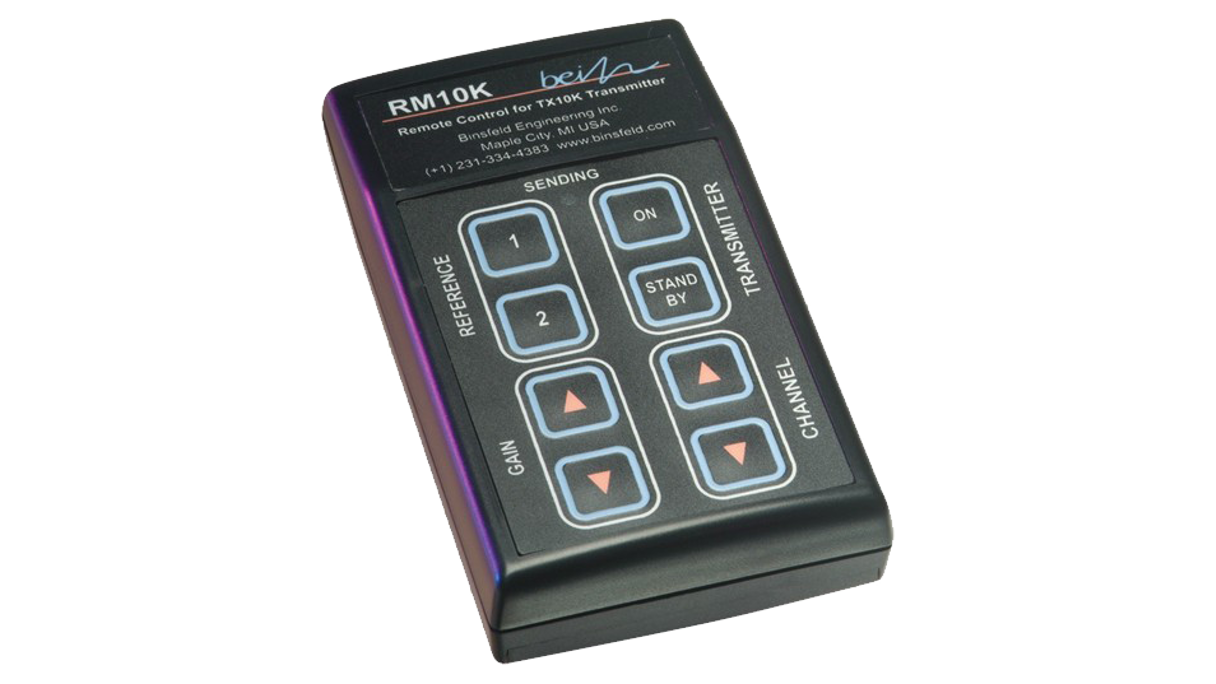

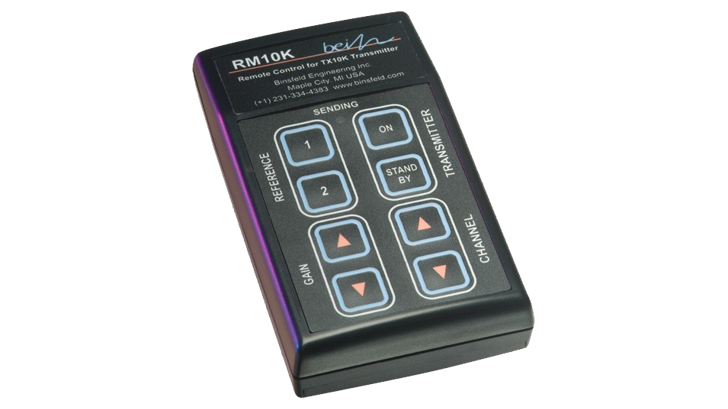

RM10K Remote Control

The RM10K is a handheld remote control that provides wireless access to the TorqueTrak 10K system. It allows users to select channel, gain/range, shunt calibration 1 and 2 and power standby.

Exactly what you need? Contact us here.

Binsfeld RM10K Remote For Torquetrak 10K 16 9

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Technical Specifications
Resolution	14 bits
Gain error	±0.25 % Reading (max), 25 °C ambient @ TX10K gain = 4000
Gain Temperatur Coefficient	±0.005 % Reading / °C (max), 0...50 °C ambient @ TX10K gain = 4000
Offset error	±0.16 % FS (max), 25 °C ambient @ TX10K Gain = 4000
Offset temperature Coefficient	±0.004 % FS / °C (max), 0...50°C ambient @ TX10K Gain = 4000
Frequency response	0...500 Hz (-3 dB @ 500 Hz).Several low pass filter options. @ RX10K filter setting = 500 Hz
Delay	4.2 msec, typical @ RX10K filter setting = 500Hz
Sample transmission rate	2400 samples / sec
Parts specifications	Please see the datasheet under download for specifications of the: TX10K-S Strain Transmitter RM10K Remote Control RX10K Receiver

Manual - Binsfeld TorqueTrak 10K User guide
English | pdf

Download
Technical specifications - Binsfeld TorqueTrak 10K Datasheet
English | pdf

Download
