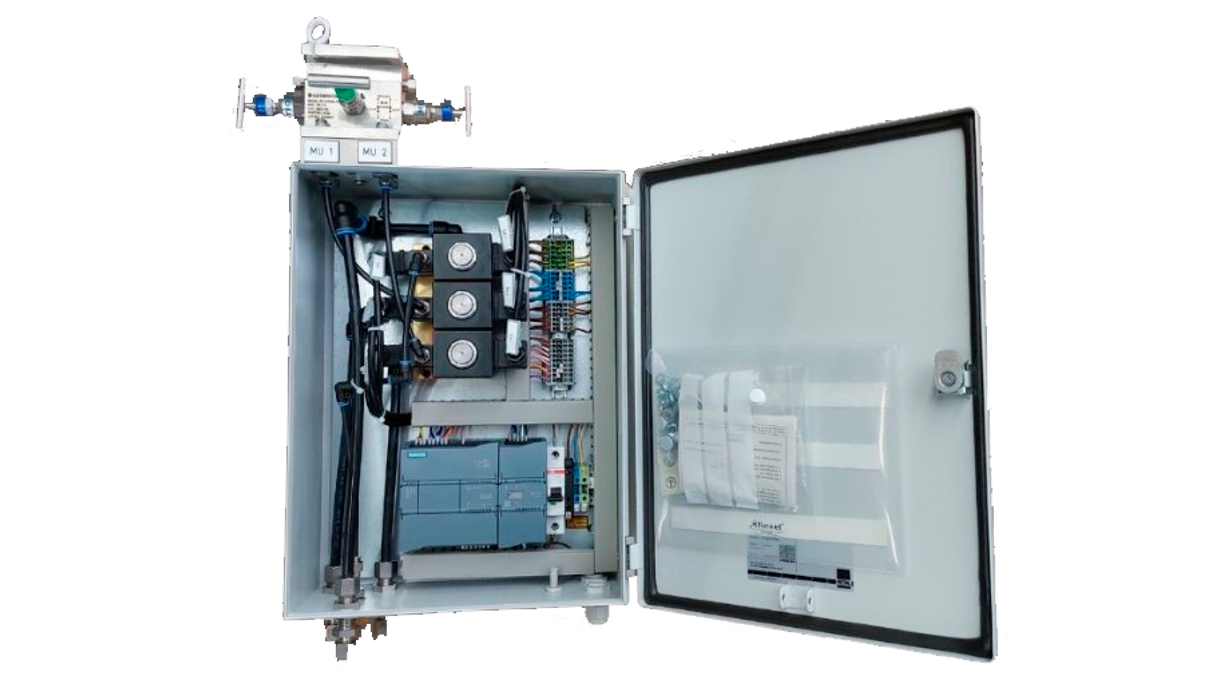

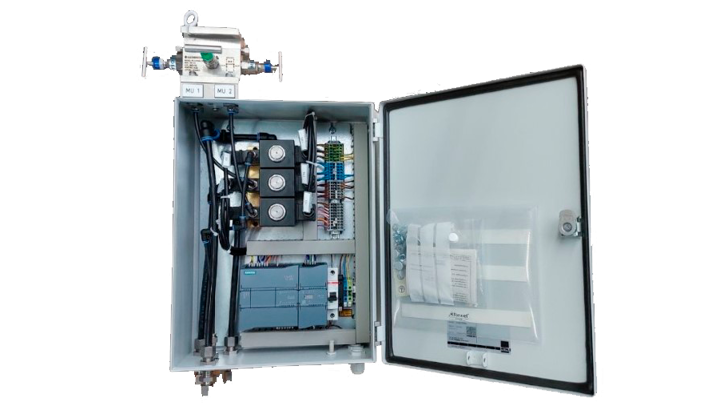

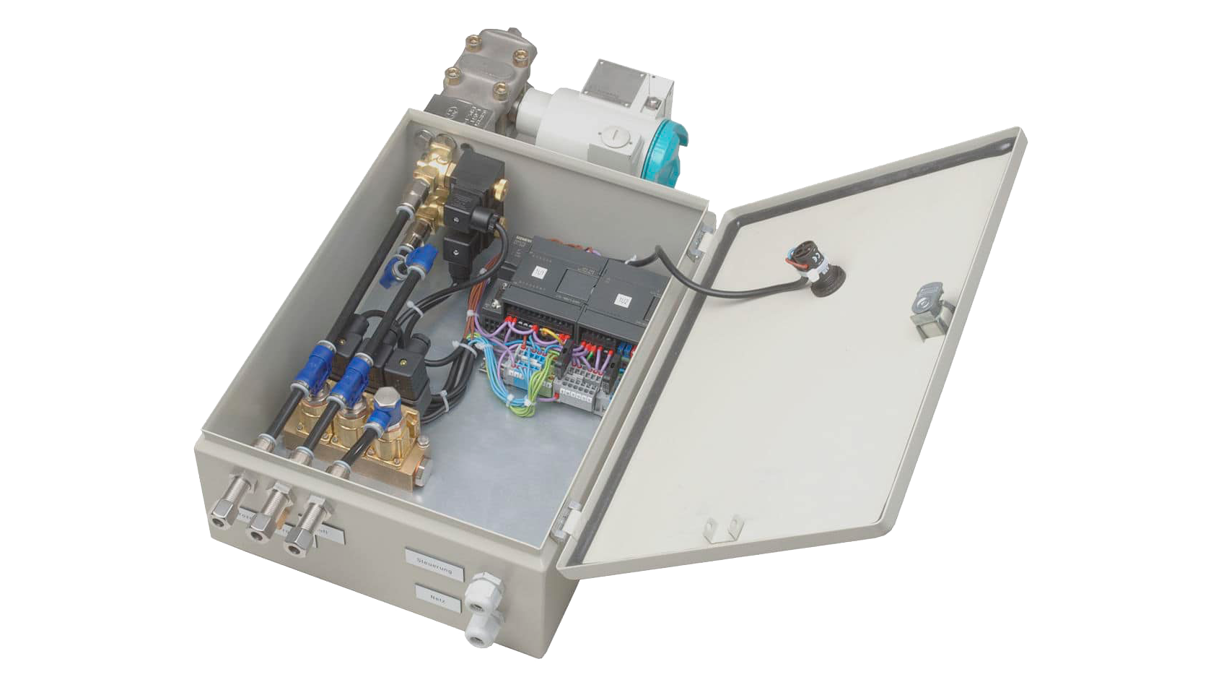

Systec Controls air-flushing system LSP1 can flush the absolute pressure pipes of one differential pressure measurement transmitter or of two pressure measurement transmitters individually.
Features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
When used with the deltaflow sensor, the LSP air-flushing system enables reliable measurement of heavily dust-laden gases.
Connected to both the deltaflow probe and the differential pressure transmitter, the LSP system efficiently purges the pressure channels of dust, dirt, and condensation.
Developed and field-tested in close collaboration with leading power plant operators, the LSP is also successfully deployed in safety-critical and shut-off applications.
Automated Flushing Mechanism: Utilizes a programmable logic controller (PLC) to initiate flushing cycles via a potential-free contact or an integrated timer. Flushing intervals are adjustable through bridge settings, offering flexibility to match process requirements.
Sequential Valve Operation: Employs a series of magnetic valves (V1 to V5) to control the flushing sequence, ensuring that each pressure channel is purged effectively without interrupting the measurement process.
Pressure Integrity: Designed to prevent unintended pressure application to DP transmitters during flushing, thereby avoiding potential zero-point deviations or transmitter damage.
Maintenance-Friendly Design: Constructed with high-quality components for longevity and minimal maintenance. The valve unit is easily removable for servicing, and standard connections facilitate straightforward integration.
Versatile Applications: Ideal for use in power plants, chemical industries, incineration facilities, and other settings where gas flows are contaminated with dust, dirt, or condensation.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Systec Controls |
||||||||||||||||||
| Supply | 230VAC (optional 24VDC ), 6bar compressed air |
||||||||||||||||||
| Size (BxHxT) | 250 × 400 × 120 mm |
||||||||||||||||||
| Adjustment of the flushing time | Potentiometer |
||||||||||||||||||
| Adjustment of the flushing intervals | Bridges |
||||||||||||||||||
| Pneumatic connections | Ermeto or pressure hose fitting, others upon request |
||||||||||||||||||
| Electrical connections | PG 13,5 or others upon request |
||||||||||||||||||
