CIT 200

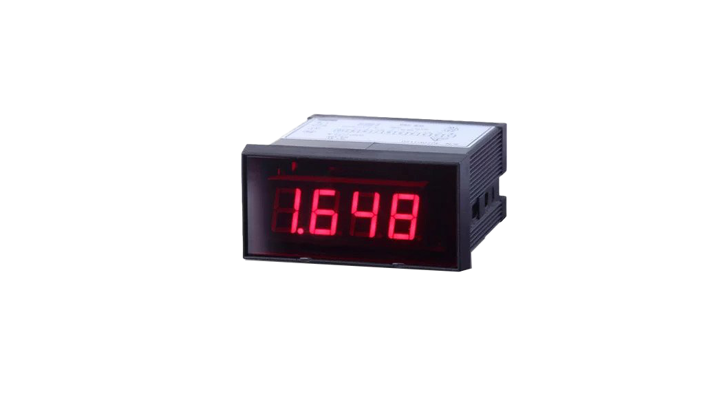

The CIT 200 from BD Sensors is a process display measuring 72 x 36 mm. Moreover, this is a perfect display panel for silo battery and the marine industry.
For sales or commercial inquiries please contact us at marine@insatech.com.
BD Sensors CIT 200
Functionality range
The CIT 200 display from BD Sensors has a functional range within:
- Free scalable display
- 4 characteristic curve functions selectable (linear, root, square function or max. 20 free selectable Supporting points)
- Display brightness and filter adjustable
- Programming via infrared remote-control IR 1 (optional).
Standard CIT 200 Features
The CIT 200 display has the following features that benefits you:
- 4-digit LED display
- Input signal: 0/4 ... 20 mA, 0/1 ... 5 V, 0/2 ... 10 V
- Communication interface RS-485 (Modbus RTU)
- Front panel housing 72 x 36 mm.
Additional Available Features
If you have a specific need the CIT 200 pressure transmitter is available with optional features like the input signal PT 100 / PT 500 / PT 1000.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input type | 8: 0/4 … 20 mA, 0/1 … 5 V, 0/2 … 10V 3: Pt100 , Pt500, Pt1000 |
||||||||||||||||||
| Supply | 1:10 … 30 VDC 2: 230 VAC 8: 110 VAC |
||||||||||||||||||
| Special version | 000: Standard 010: sealing frame IP65 080: operating temperature -20°C…50°C 0P0: IP65 + operating temp. -20…50°C 999: customer |
||||||||||||||||||
| Accessories | Z900033: infrared remote control IR 2 |
||||||||||||||||||
-
Data Sheet - CIT 200 - BD Sensors
English | pdf -
Owners Manual - CIT 200-3 - BD Sensors
English | pdf -
Owners Manual - CIT 200 - 8 - BD Sensors
English | pdf -
Certificate - Conformity Declaration - CIT 200 - BD Sensors
English | pdf
