CIT 350

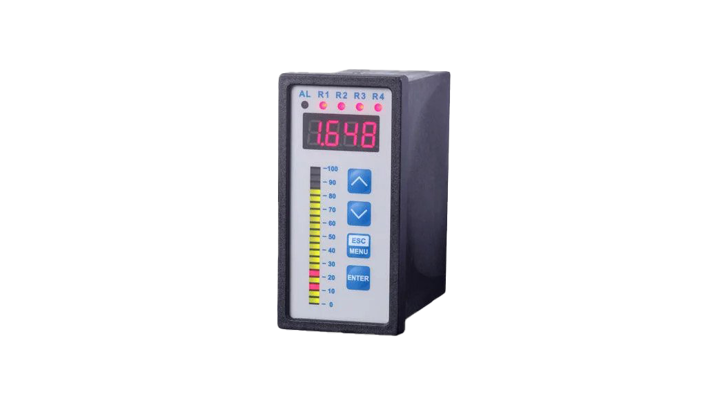

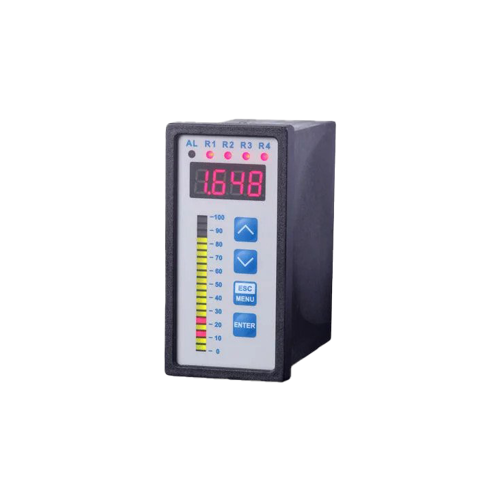

The CIT 350 from BD Sensors is a process display measuring 96 x 48 mm with contacts and analog output. The display is typically used for filter controlling and in the marine industry for various applications.
For sales or commercial inquiries please contact us at marine@insatech.com.
The CIT 350 display from BD Sensors has a functional range within:
The CIT 350 display has the following features that benefits you:
If you have a specific need the CIT 350 pressure transmitter is available with optional features like an output 2/4 relay / OC or a output 4 … 20 mA / 0 … 10 V.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input type | 8: 0/4 … 20 mA, 0/1 … 5 V, 0/2 … 10V |
||||||||||||||||||
| Number of outputs | 0: without 2: 2 3: 3 4: 4 |
||||||||||||||||||
| Output type | 0: Without 1: 2x / 4x SPST relay 2: 2x / 4x Open collector 3: 2x SPST relay + 1x 0/4…20 mA active 4: 2x Open collector + 1x 0/4…20 mA active 9: 2x SPST relay + 1x 4…20 mA passive A: 2x Open collector + 1x 4…20 mA passive B: 2x SPST relay + 1x 0/1…5 V, 0/2…10V C: 2x Open collector + 1x 0/1…5 V, 0/2…10V |
||||||||||||||||||
| Supply | 3: 16…35 VAC / 19…50 VDC 4: 85…260 VAC / VDC |
||||||||||||||||||
| Special version | 000: Standard 010: sealing frame IP65 080: operating temperature -20°C…50°C 0P0: IP65 + operating temp. -20…50°C 999: customer |
||||||||||||||||||
| Accessories | Z900030: hat rail adapter 96 mm |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
