DCL 551

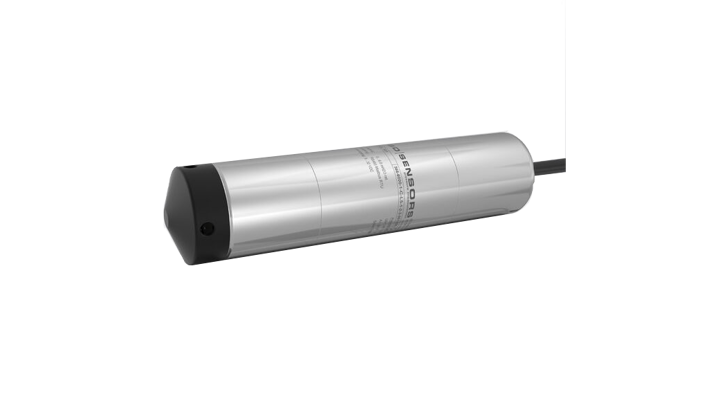

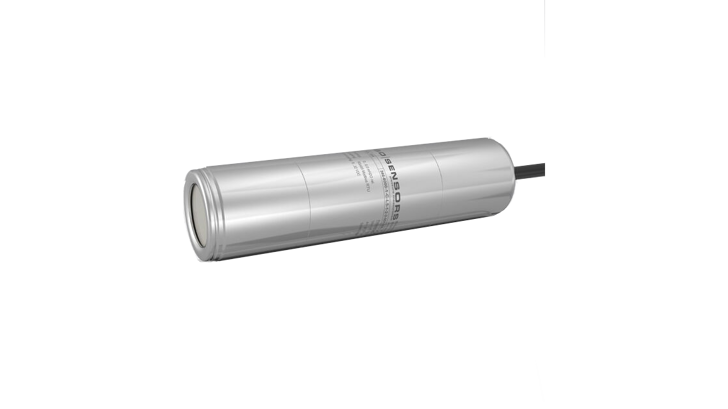

The DCL 551 is a level probe from BD Sensors in stainless steel, which has been designed to measure hydrostatic level in various liquids like sewage, viscous, and pasty media. The probe’s basic element is a vigorous capacitive ceramic sensor that is high overpressure capable.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DCL 551 submersible probe is precise and has the following features that benefits you:
The probe is using the RS485 interface, which is based on the communication protocol by Modbus RTU. Thus, it is an open protocol where the data is transferred in binary form.
The DCL 551 from BD Sensors is applicable in various settings including the maritime industry.
Moreover, it is especially suitable for following media:
If you have a specific need the DCL 551 submersible probe is available with the optional feature; diaphragm ceramics Al2O3 99,9%.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 565: in bar 566: in H2O |
||||||||||||||||||
| Input | [mH2O] 0400: 0.4 [bar] 0400: 0.4 |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) 9: customer |
||||||||||||||||||
| Diaphragm | 2: ceramics Al2O3 96% C: ceramics Al2O3 99.9% 9: customer |
||||||||||||||||||
| Digital Output | L5: RS485 Modbus RTU 9: customer |
||||||||||||||||||
| Seals | 1: FKM 9: customer |
||||||||||||||||||
| Electrical connection | 2: PUR-cable (black, Ø 7.4 mm) (Note 1) 9: customer |
||||||||||||||||||
| Accuracy | standard 3: 0.35 % FSO option 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special Version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: shielded cable with integrated ventilation tube for atmospheric pressure reference |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
