LMK 331

The LMK 331 is a screw-in transmitter from BD Sensors, which has been designed to measure level and process. It is applicable to measure also pressure of liquids, oils, and gases. Furthermore, the semi-flush pressure sensor makes it possible to also use the LMK 331 in more viscous or polluted media.

Additionally, this screw-in transmitter is available in an intrinsically safe version or a functionally safe version (SIL 2), which complete the range of possibilities you have with the LMK 331.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard LMK 331 Features

The screw-in transmitter LMK 331 is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 400 mbar up to 0 ... 60 bar
  • Accuracy: 0.5 % FSO
  • Pressure port G 3/4" flush.

Furthermore, the screw-in transmitter can be used in various media including:

  • Sewage water, sludge
  • Aggressive media
  • Fuels and oils
  • Water.

If you want to use the transmitter in more aggressive media, the version of the LMK 331 with PVDF pressure port is recommended.

LMK331 Bdsensors 1024X16x9

Typical applications

The LMK 331 from BD Sensors is applicable in various settings:

  • Maritime industry
  • Mechanical and plant engineering
  • Energy industry
  • Medical technology
  • Environmental industry.

Get more information here

Additional Available Features

If you have a specific need the LMK 331 screw-in transmitter is available with optional features like:

  • IS-version (only for 4... 20 mA / 2-wire), Ex ia = intrinsically safe for gases and dusts
  • SIL 2 application according to IEC 61508 / IEC 61511
  • Pressure port PVDF for aggressive media
  • Various types of electrical and mechanical connections
  • Customer specific versions.



If you have additional needs - contact us here

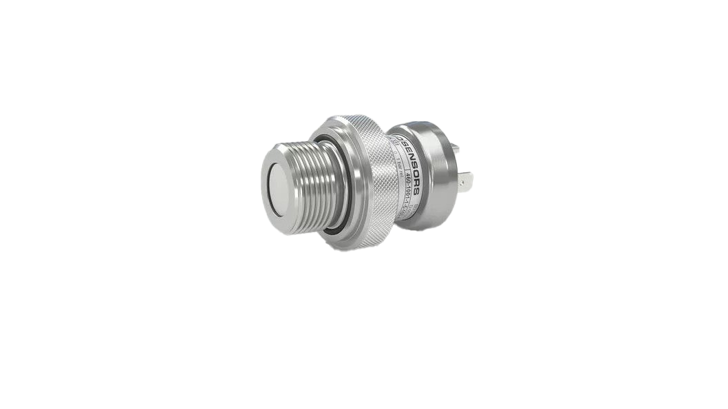

LMK331 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

460: gauge in bar

461: gauge in H2O
Input

[mH2O]
4000: 4
6000: 6
1001: 10
1601: 16
2501: 25
4001: 40
6001: 60
1002: 100
1602: 160
2502: 250
4002: 400
6002: 600

[bar]
4000: 0.4
6000: 0.6
1001: 1.0
1601: 1.6
2501: 2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2502: 25
4002: 40 (Note 1)
6002: 60 (Note 1)
9999: customer
Analogue output

1: 4 … 20 mA / 2-wire

2: 0 … 20 mA / 3-wire

3: 0 … 10 V / 3-wire

E: intrinsic safety 4 … 20 mA / 2 wire (Note 2)

1S: SIL2 4 … 20 mA / 2-wire

ES: SIL2 with intrinsic safety 4 … 20 mA / 2-wire (Note 2)

9: customer
Accuracy

5: 0.5 % FSO

9: customer
Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

TA0: cable outlet with PVC cable (IP67) (Note 3)

TR0: cable outlet, cable with ventilation tube (IP68) (Note 4)

M10: male plug M12x1 (4-pin) / metal for analog output

850: compact field housing stainless steel 1.4301 (304)

999: customer
Mechanical connection

K00: G3/4" DIN 3852 with flush sensor

999: customer
Seals

1: FKM

3: EPDM

9: customer
Pressure port

1: stainless steel 1.4404 (316L)

option for pN ≤ 2 5 bar
B: PVDF (Note 5)

9: customer
Diaphragm

2: ceramics Al2O3 96 %

9: customer
Special version

000: standard

999: customer
Notes

1: only possible for pressure port of stainless steel

2: intrinsic safety not possible with plastic pressure port

3: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request

4: code TR0 = PVC cable, cable with ventilation tube available in different types and lengths

5: permissible medium temperature: -30 … 60 °C.
