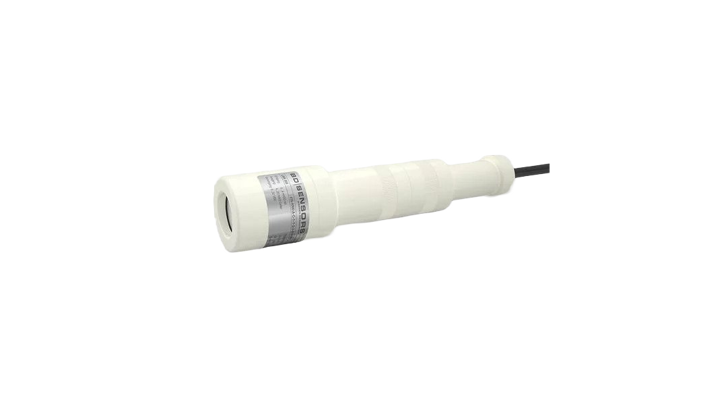

LMK 858
The LMK 858 from BD Sensors is a separable plastic immersion probe, which is designed to measure level in aggressive media like acids and alkalis), desalination plants, and for use in more viscous media such as sludge.

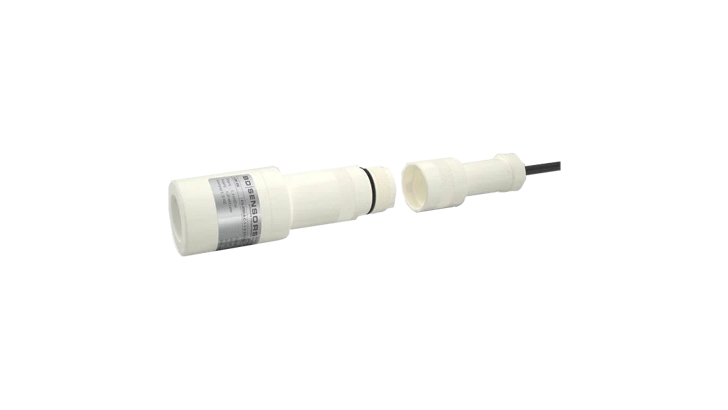

Moreover, the probe’s head can be separated from the cable part, which both reduces maintenance or service tasks, as well as it simplifies storage.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMK 858 submersible probe is precise and has the following features that benefits you:
Furthermore, the probe’s basic element is the pressure sensor with a membrane that consist of high-purity ceramic (99,9 % purity), which is extremely vigorous and accurate. This means that you can reliably detect even the smallest fill levels.
The LMK 858 from BD Sensors is applicable in various settings:
The probe can also be used for various media including sewage water, sludge, and aggressive media.
Moreover, the LMK 858 is highly applicable outside building as there was emphasis on high surge and lightning protection in the development process of the probe.
If you have a specific need the LMK 858 submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 415: in bar 416: in mH2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Housing | R: PP-HT 9: customer |
||||||||||||||||||
| Diaphragm | 2: ceramics Al2O3 96 % C: ceramics Al2O3 99,9% 9: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire 9: customer |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM 9: customer |
||||||||||||||||||
| Electrical connection | 1: PVC-cable (grey, Ø 7.4 mm) (Note 1) 2: PUR-cable (black, Ø 7.4 mm) (Note 1) 3: FEP-cable (black, Ø 7.4 mm) (Note 1) 9: customer |
||||||||||||||||||
| Accuracy | standard 3: 0.35 % FSO option 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Cable length | 999: in m |
||||||||||||||||||
| Special version | 000: standard 106: prepared for pipe mounting (Note 2) 999: customer |
||||||||||||||||||
| Notes | 1: shielded cable with integrated ventilation tube for atmospheric pressure reference 2: pipe is not part of the supply. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
