LMP 307T

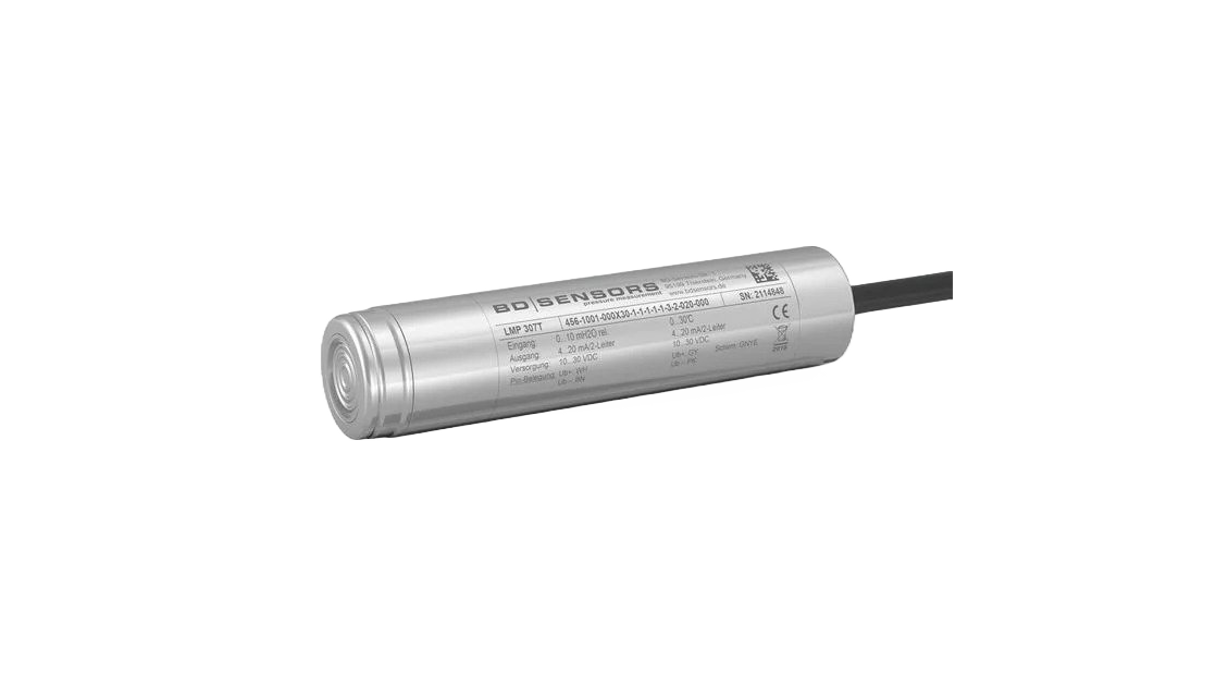

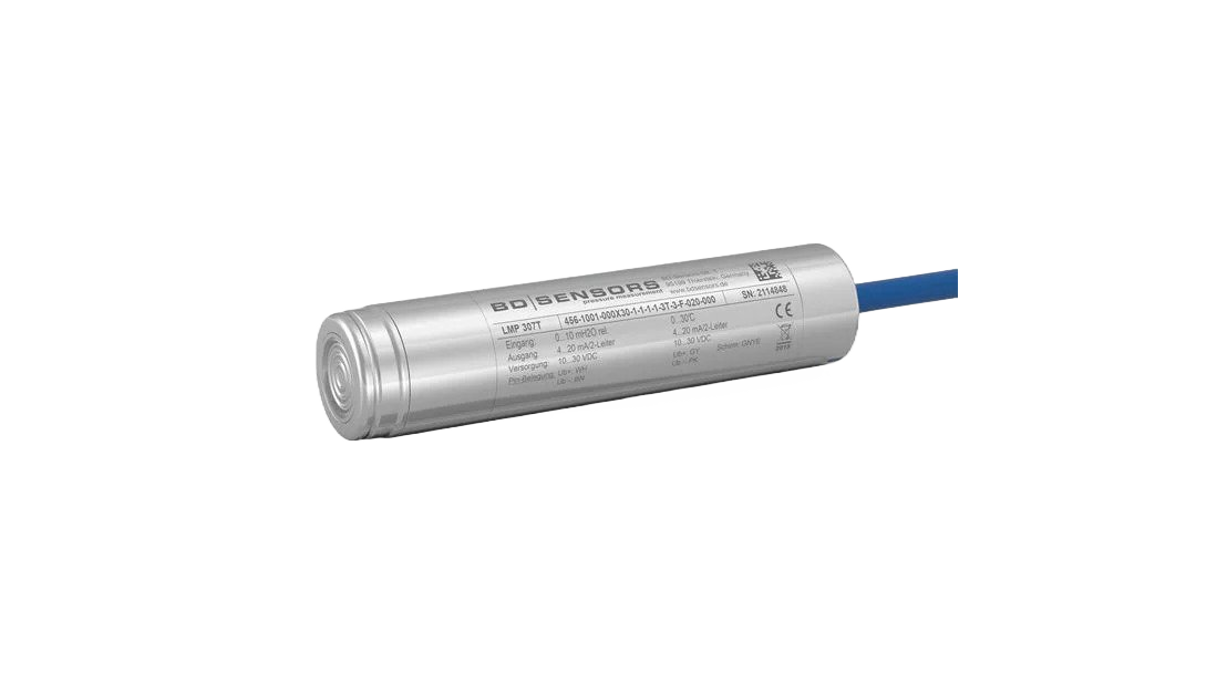

The LMP 307T from BD Sensors is a submersible probe in stainless steel, which is developed to measure level and temperature continuously in water and in clean to lightly soiled liquids.
You will get the advantage of being able to record the level and temperature simultaneously with independent signal amplification. Thus, the maintenance and wiring costs are decreased.
For sales or commercial inquiries please contact us at marine@insatech.com.
The LMP 307T submersible probe is precise and has the following features that benefits you:
Additionally, to the classical signal processing of the level, the 4 … 20 mA analogue signal in 2-wire technology is provided, which gives an additional signal circuit that independent of the level and converts the temperature.
The LMP 307T from BD Sensors is applicable in various settings:
Moreover, the probe can be used for various media including water fuels, and oils. Thus, the LMP 307T is applicable in areas like:
If you have a specific need the LMP 307T submersible probe is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 455: in bar 456: in H2O |
||||||||||||||||||
| Input | [mH2O] [bar] |
||||||||||||||||||
| Input temperature in °C | 000x30: 0 … 30 000x50: 0 … 50 000x70: 0 … 70 999999: customer |
||||||||||||||||||
| Housing | 1: stainless steel 1.4404 (316L) 9: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) 9: customer |
||||||||||||||||||
| Output pressure | 1: 4 … 20 mA / 2-wire |
||||||||||||||||||
| Output temperature | 1: 4 … 20 mA / 2-wire |
||||||||||||||||||
| Seals | 1: FKM 3: EPDM DVGW/KTW 3T: EPDM (Note 1) 9: customer |
||||||||||||||||||
| Accuracy | standard for PN > 0.4 bar 3: 0.35 % FSO standard for PN ≤ 0.4 bar 5: 0.5% FSO option 1 for PN > 0.4 bar 2: 0.25 % FSO 9: customer |
||||||||||||||||||
| Electrical connection/ cable length | PVC-cable (grey, Ø 7.4 mm) (Note 2) 1 005: 5 m 1 010: 10 m 1 015: 15 m 1 999: special length in m PUR-cable (black, Ø 7.4 mm) (Note 2) 2 005: 5 m 2 010: 10 m 2 015: 15 m 2 999: special length in m FEP-cable (black, Ø 7.4 mm) (Note 2) 3 010: 10 m 3 999: special length in m TPE-U-cable (blue, Ø 7.4 mm) (Note 2) DVGW/KTW (Note 1) F 999: special length in m |
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: drinking water certification only possible with EPDM seal (code 3T) in combination with TPE-U cable (code F) 2: shielded cable with integrated ventilation tube for atmospheric pressure reference. |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
