DM17 Bd Sensors Square

DM 17

The battery-powered digital pressure gauge DM17 from BD Sensors is designed for high-pressure applications and demanding environments. This compact model features a stainless steel diaphragm and a welded pressure sensor, making it suitable for oxygen applications and meeting the strictest requirements for particle-free operation.

Advantages of the DM 17 include:

  • Robust design
  • High pressure resistance
  • Suitable for oxygen applications

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DM 17 Features

The digital pressure gauge, DM 17, offers the following features:

  • Nominal pressure: 0 ... 10 bar up to 0 ... 600 bar
  • Accuracy: 0.05% FSO BFSL (class 0.5)
  • Stainless steel sensor
  • Rotatable and adjustable housing for increased flexibility during installation and use

The compact digital pressure gauge DM 17 is battery-powered and boasts an adjustable housing, rendering it exceedingly suitable for mobile pressure monitoring. An unusual and commendable feature of the DM 17 is its welded pressure sensor. This design bolsters its robustness and capability, ensuring reliable performance even in the most challenging environments. The welded structure guarantees a hermetic seal, enhancing the unit's durability and operational longevity.

Typical Applications

The DM17 is designed for high-pressure applications and demanding environments where robustness and reliability are essential. It can be used with the following media:

  • Fuel
  • Oil
  • Oxygen

Need more information? Contact us here

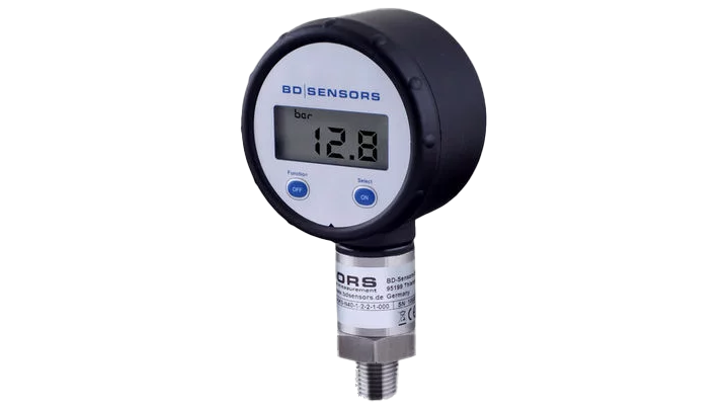

DM17 Bd Sensors 16 9

Additional Available Features

If you have a specific need for your measurement, DM 17 is available with optional features such as:

  • Min/Max function with reset
  • Auto-zero
  • Pressure unit setting
  • Automatic shut-off

Does it match your need - contact us here

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Pressure

M03: gauge
Input [bar]

6001: 6.0
1002: 10
1602: 16
2502: 25
4002: 40
6002: 60
1003: 100
1603: 160
2503: 250
4003: 400
6003: 600
9999: customer
Accuracy [BFSL]

B8: 0.5%

99: customer
Mechanical connection

200: G1/2" EN 837

N40: 1/4" NPT

400: G1/4" EN 837

999: customer
Seals

2: without

9: customer
Pressure port

1: Stainless steel 1.4571 (316Ti)

9: customer
Diaphragm

Z: Stainless steel 1.4542 (630)

9: customer


Front foil

1: standard

N: neutral

9: customer
Special version

000: standard

007: oxygen application

999: customer
  • Data Sheet - DM 17 - BD Sensors
    English | pdf
  • Owners Manual - DM 17 - BD Sensors
    English | pdf
  • Certificate - Conformity Declaration - DM 17 - BD Sensors
    English | pdf
