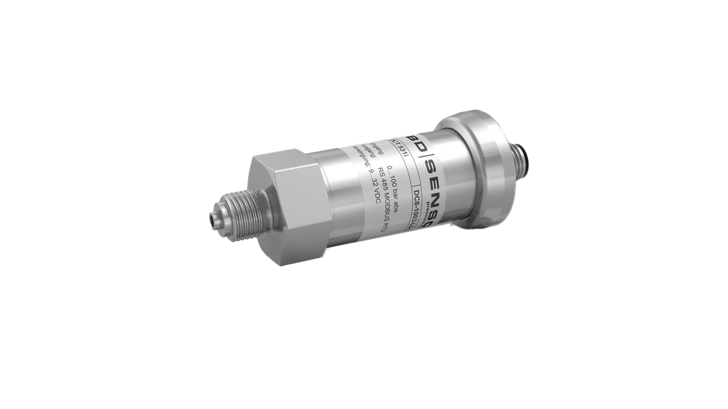

DCT 531i
The DCT 531i from BD Sensors is a digital pressure transmitter, which is characterized by the great accuracy and exceptional temperature behavior. Thus, this sensor is ideally suited in settings and applications with necessitates precise pressure measurement. For example, regarding test benches, leakage test etc.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DCT 531i pressure transmitter is precise and has the following features that benefits you:
You will get a reliable and vigorous data transmission because of the integrated interface RS485 (based on the MODBUS RTU protocol). Thus, this transmitter will word without difficulties over longer distances as well.
Moreover, the DCT 531i is connected directly to a master e.g., is coupled to a SPS, which means that the conversion losses you might experience of an analog input card are avoided.
The DCT 531i from BD Sensors is applicable in various settings:
The transmitter is available with different mechanical and electronical connections, which makes it possible to use the DCT 531i in a variety of applications without experiencing any challenges.
If you have a specific need the DCT 531i pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | DC7: gauge DC8: absolute |
||||||||||||||||||
| Input [bar] | 1000: 0.10 (Note 1) |
||||||||||||||||||
| Output | L5: RS485 Modbus RTU |
||||||||||||||||||
| Accuracy | standard for pN ≥ 0.25 bar standard for pN < 0.25 bar 2: 0.25% FSO 9: customer |
||||||||||||||||||
| Electrical connection | N11: male plug M12x1 (5-pin) / metal 999: customer |
||||||||||||||||||
| Mechanical connection | 100: G1/2" DIN 3852 200: G1/2" EN 837 300: G1/4" DIN 3852 400: G1/4" EN 837 F00: G1/2" DIN 3852 with semi-flush sensor (Note 2) H00: G1/2" DIN 3852 open pressure port (Note 2) N00: 1/2" NPT N40: 1/4" NPT 999: customer
|
||||||||||||||||||
| Seal | 1: FKM 3: EPDM 2: without (welded version) (Note 3) 9: customer |
||||||||||||||||||
| Special version | 111: standard 999: customer |
||||||||||||||||||
| Notes | 1: absolute pressure possible from 0.4 bar 2: not possible for nominal pressure pN > 40 bar 3: welded version only with pressure ports according to EN 837, possible for pN ≤ 40 bar |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
