DCT 533P

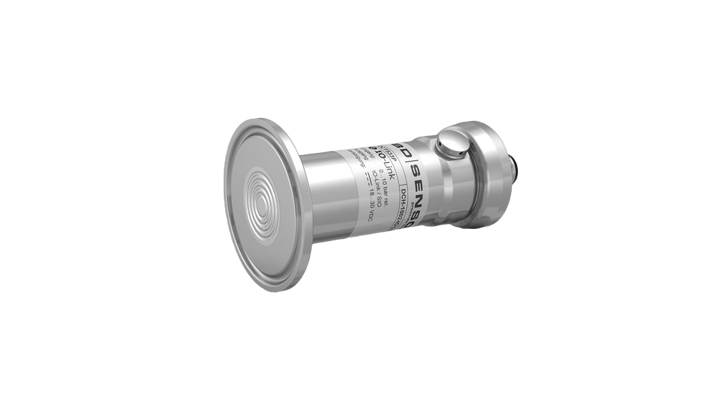

The DCT 533P pressure transmitter from BD Sensors is applicable in various settings, as well as for applications that requires a totally flush pressure port.
Furthermore, this sensor is design specifically to prevent condensation inside the pressure transmitter. Thus, you will not experience failure when using the DCT 533P within large temperature changes.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DCT 533P pressure transmitter is precise and has the following features that benefits you:
The DCT 533P comes with the integrated IO-link interface as a standard, as mentioned above.
Moreover, this interface can help increase productivity, as well as it supports you regarding service and maintenance. Thus, all properties can be read and qualified with the IO-link, which can help you in accessing the state of the system or the processes.
The DCT 533P from BD Sensors is applicable in various settings:
If you have a specific need the DCT 533P pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | DCH: gauge DCG: absolute (Note 1) |
||||||||||||||||||
| Input [bar] | 1000: 0.10 (Note 1) |
||||||||||||||||||
| Output | IO:IO-Link / SIO |
||||||||||||||||||
| Accuracy | standard for pN ≥ 0.4 bar 3: 0.35 % FSO standard for pN< 0.4 bar 5: 0.50 % FSO option for pN ≥ 0.4 bar 2: 0.25% FSO 9: customer |
||||||||||||||||||
| Electrical connection | M17: male plug M12x1 (4-pin) / metal 999: customer |
||||||||||||||||||
| Mechanical connection | Z00: G1/2" DIN 3852 flush (pN ≥ 1 bar) ZS1: G1" DIN 3852 flush KS1: G1" cone C61: Clamp DN 25 DIN 32676 (pN ≤ 16 bar) C62: Clamp DN 32 DIN 32676 (pN ≤ 16 bar) P41: Varivent® DN 40/50 (pN ≤ 25 bar) 999: customer
|
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) 9: customer
|
||||||||||||||||||
| Seal | for clamp, Varivent® 0: without for inch thread - standard 1: FKM for inch thread - option 7: FFKM 2: without (welded version) (Note 3) 9: customer |
||||||||||||||||||
| Filling fluid | 1: silicone oil 2: food compatible oil (FDA) 9: customer |
||||||||||||||||||
| Special version | 03P: standard 23P: with cooling element up to 300°C 999: customer |
||||||||||||||||||
| Notes | 1: absolute pressure possible from 0.4 bar Varivent® is a brand name of GEA Tuchenhagen GmbH |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
