DCT 553P

The DCT 553P is a pressure transmitter from BD Sensors and is ideal in application, where a dead space-free process connection is required. Because of the ceramic pressure sensor, it is characterized by a high overload capability, as well as an exceptional surface quality.

Moreover, the specifically design of the sensor prevents creation of condensation inside the transmitter. Thus, you will not experience failure when using the DCT 553P within large temperature changes.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DCT 533P Features

The DCT 533P pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: from 0 ... 100 mbar up to 0 ... 40 bar
  • Accuracy: 35 % (Opt. 0,25%) FSO
  • IO-Link according to specification V 1.1
  • Data transfer 38.4 kBaud
  • Smart sensor profile
  • Hygienic version
  • CIP / SIP cleaning up to 150 °C
  • Ingress protection IP 67 / IP 69
  • Diaphragm with low surface roughness.

The DCT 533P comes with the integrated IO-link interface as a standard, as mentioned above.

 Moreover, this interface can help increase productivity, as well as it supports you regarding service and maintenance. Thus, all properties can be read and qualified with the IO-link, which can help you in accessing the state of the system or the processes.

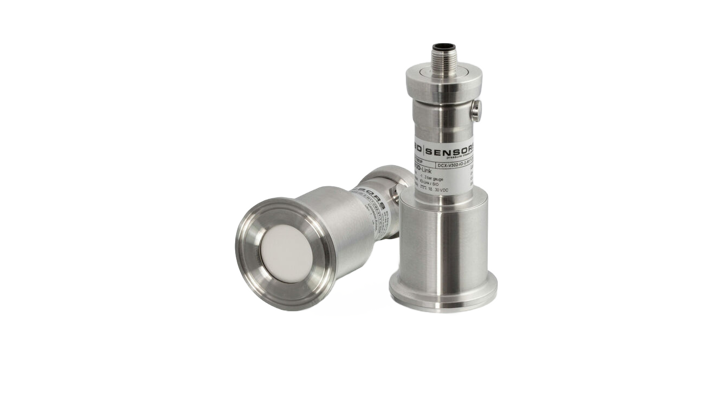

DCT553P Bdsensors 1024X16x9

Typical applications

The DCT 553P from BD Sensors is applicable in various settings:

  • Maritime industry
  • Mechanical and plant engineering
  • Food and beverage
  • Pharmaceutical industry.

Get more information here

BD Sensors Logo Overview
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

298: gauge

296: absolute (Note 1)
Input

[mH2O]
0400: 0.4
0600: 0.6
1000: 1.0
1600: 1.6
2500: 2.5
4000: 4.0
6000: 6.0
1001: 10
1601: 16
2501: 25
4001: 40
6001: 60
1002: 100
1602: 160
2002: 200

[bar]

1000: 0.10
1600: 0.16
2500: 0.25
4000: 0.40
6000: 0.60
1001: 1.0
1601: 1.6
2501: 2.5
4001: 4.0
6001: 6.0
1002: 10
1602: 16
2502: 25
4002: 40
x102: -1 ... 0
9999: customer
Output

IO:IO-Link / SIO
Accuracy

standard

3: 0.35 % FSO

option for pN< 0.6 bar

2: 0.25% FSO

9: customer
Electrical connection

M17: male plug M12x1 (4-pin) / metal

999: customer
Mechanical connection

M00: G 1 1/2" DIN flush (DIN 3852)

C62: Clamp DN 32 DIN 32676 (pN ≤ 16 bar)

C63: Clamp DN 50 (DIN 32676)

P41: Varivent® DN 40/50 (pN ≤ 25 bar)

999: customer


Seal

1: FKM

3: EPDM

9: customer
Pressure port

1: stainless steel 1.4404 (316L)

9: customer
Diaphragm

C: ceramics Al2O3 99.9 %

9: customer
Special version

03P: standard

999: customer
Notes

1: absolute pressure from 0.04 bar up to 0.25 bar on request

Varivent® is a brand name of GEA Tuchenhagen GmbH
