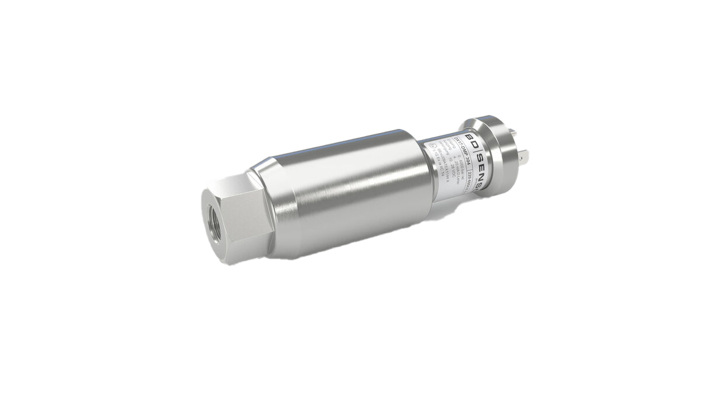

DMP 304
The DMP 304 high-pressure transmitter from BD Sensors type has been specifically designed for applications with high demand on precision and reliability. Thus, the DMP 304 series is built on a compensated strain gauge, bonded onto a stainless-steel diaphragm.
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 304 pressure transmitter is precise and has the following features that benefits you:
The DMP 304 from BD Sensors is applicable in various settings including:
Because of the rugged stainless-steel housing on the DMP 304 transmitter it can bed used in extreme conditions and in IS-required areas without any problem.
If you have a specific need the DMP 304 pressure transmitter is available with optional features like:
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 220: gauge |
||||||||||||||||||
| Input [bar] | 2004: 2000 4004: 4000 5004: 5000 6004: 6000 9999: customer |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety 4 … 20 mA / 2-wire 3: 0 ... 10 V / 3-wire 9: customer |
||||||||||||||||||
| Accuracy | Standard 5: 0.50 % FSO option 2: 0.25% FSO 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) TA0: cable outlet with PVC cable (IP67) (Note 1) TR0: cable outlet cable with ventilation tube (IP68) (Note 2) M10: male plug M12x1 (4-pin), metal BG0: MIL-/Bendix (type PT 02 A 10-6 P) 999: customer |
||||||||||||||||||
| Mechanical connection | V00: 9/16" UNF internal thread P00: M16x1.5 internal thread D28: M20x1.5 internal thread 999: customer |
||||||||||||||||||
| Special version | 041: adjustable 999: customer |
||||||||||||||||||
| Notes | 1: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 ... 70 °C); others on request |
||||||||||||||||||
