DMP 331 Pi

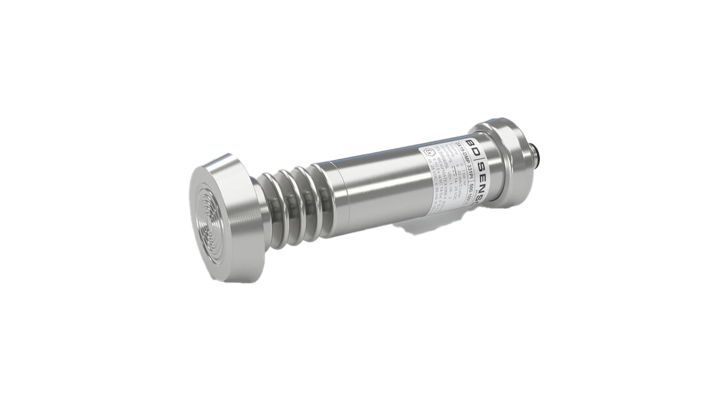

The DMP 331Pi from BD Sensors is a precision pressure transmitter, which is a development of the well-tested and used DMP 331P. The specifically designed piezoresistive stainless steel sensor sends a signal that is processed by the newly developed digital electronic system. This performs an effective compensation of sensor-specific deviations including:
For sales or commercial inquiries please contact us at marine@insatech.com.
The DMP 331Pi pressure transmitter is precise and has the following features that benefits you:
Furthermore, the temperature of -40 to 125 °C in the field application can be expanded by integrating a cooling element up to 300 °C.
The DMP 331Pi from BD Sensors is applicable in various settings including:
If you have a specific need the DMP 331Pi pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 500: gauge 501: absolute (Note 1) |
||||||||||||||||||
| Input [bar] | 4000: 0.4 (Note 1) |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety (ia) and 4 … 20 mA / 2-wire 3: 0 … 10 V / 3-wire 9: customer |
||||||||||||||||||
| Accuracy | 1: 0.1 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | 100: male and female plug ISO 4400 200: male plug Binder series 723 (5-pin) A00: male plug Binder series 723 (7-pin) and female plug Binder series 423 (7-pin) TA0: cable outlet with PVC cable (IP67) (Note 2) TR0: cable outlet, cable with ventilation tube (IP68) (Note 3) M10: male plug M12x1 (4-pin) / meta 850: compact field housing, stainless steel 1.4301 (304) (Note 4) 999: customer
|
||||||||||||||||||
| Mechanical connection | Z00: G1/2" with flush (Note 3) welded diaphragm (DIN 3852) (Note 5) Z31: G1" with flush welded diaphragm (DIN 3852) C61: Clamp DN 25 / 1" (DIN 32676) / 3A C62: Clamp DN 32 / 1 1/2" (DIN 32676) / 3A C63: Clamp DN 50 / 2" (DIN 32676) / 3A C69: Clamp 3/4" (DIN 32676) / 3A M73: dairy pipe DN 25 (DIN 11851) (Note 4) M75: dairy pipe DN 40 (DIN 11851) (Note 4) M76: dairy pipe DN 50 (DIN 11851) (Note 4) P41: Varivent® DN 40/50 / 3A 999: customer |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) H: Hastelloy® ® C-276 (2.4819) T: Tantalum 9: customer |
||||||||||||||||||
| Seals | 0: without (for clamp or dairy pipe) 1: FKM (for inch thread - standard) 7: FKM (for inch thread - option) 9: customer |
||||||||||||||||||
| Filling fluids | 1: silicone oil 2: food compatible oil (FDA) / 3A 9: customer |
||||||||||||||||||
| Special version | 111: standard 121: RS232 interface (Note 6) 211: with cooling element up to 300 °C 221: RS232 interface with cooling element up to 300 °C (Note 6) 999: customer |
||||||||||||||||||
| Notes | 1: Absolute pressure possible from 1 bar |
||||||||||||||||||
