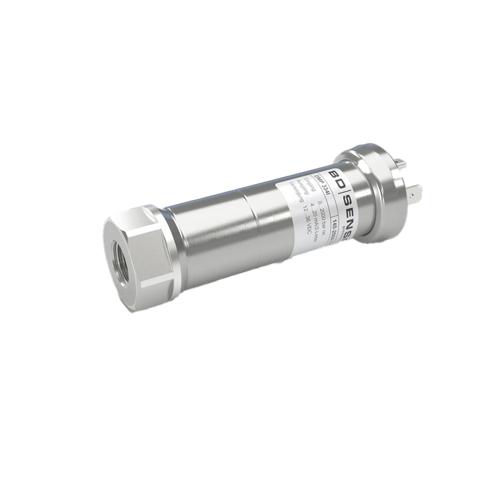

Dmp334i Bdsensors 1024 Square

DMP 334i

The DMP 334i pressure transmitter from BD Sensors is a reliable further development of the approved industrial pressure transmitter DMP 334. The basic element of this consistent transmitter is a thin film sensor welded with a pressure port.

The digital electronics is integrated in the sensor and actively compensates for specific deviations as non-linearity and thermal error. This makes it possible to offer a high-pressure transmitter, which has exceptional metrological qualities.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Standard DMP 334i Features

The DMP 334i pressure transmitter is precise and has the following features that benefits you:

  • Nominal pressure: 0 ... 600 up to 0 ... 2.200 bar
  • Accuracy: 0.1 % FSO
  • Pressure sensor welded
  • Turn-down 1:10
  • Excellent accuracy
  • Extremely robust and excellent long-term stability.

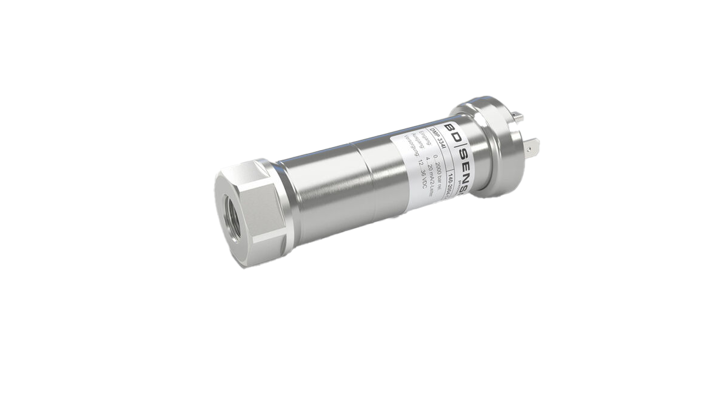

Dmp334i Bdsensors 1024X16x9

Typical applications

The DMP 334i from BD Sensors is applicable in various settings including:

  • Maritime industry
  • Mechanical and plant engineering
  • Utility vehicles / mobile hydraulics.

Get more information here

Additional Available Features

If you have a specific need the DMP 334i pressure transmitter is available with optional features like:

  • Communication interface for adjusting offset, span and damping
  • Pressure port M20 x 1.5 or 9/16 UNF
  • Different kinds of electrical connections.

Does it match your need - contact us here

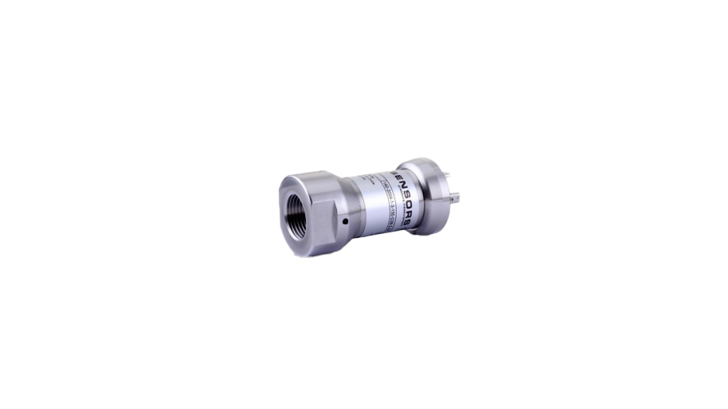

Dmp334i 1 Bdsensors 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Model/ Type
Pressure

140: gauge
Input [bar]

6003: 600 (Note 1)

1004: 1000

1604: 1600

2004: 2000

2204: 2200

9999: customer
Output

1: 4 … 20 mA / 2-wire

9: customer
Accuracy

1: 0.1 % FSO

9: customer
Electrical connection

100: male and female plug ISO 4400

200: male plug Binder series 723 (5-pin)

A00: male plug Binder series 723 (7-pin) and female plug Binder series 423 (7-pin)

TA0: cable outlet with PVC cable (IP67) (Note 2)

M10: male plug M12x1 (4-pin) / metal

850: compact field housing stainless steel 1.4301 (304)

999: customer
Mechanical connection

200: G1/2" EN 837 (Note 3)

D28: M20x1.5 internal thread

V00: 9/16 UNF Internal thread

999: customer
Seals

2: without (welded version)

9: customer
Special version

111: standard

121: RS232 interface (Note 4)

999: customer
Notes

1: only available with pressure port G1/2" EN 837
2: standard: 2 m PVC cable without ventilation tube (permissible temperature: -5 … 70 °C), others on request
3: According to EN 837, the pressure port and the complement, at pressure over 1000 bar must be preferably made of stainless steel with a tensile strength of RP > 260 N/mm² in accordance with DIN 17440. The maximum allowed pressure is 1600 bar!
4: RS232 interface only possible with electrical connection Binder serie 723/423 (7-pin) software, interface and cable for DMP 334i with option RS232 have to be order separately (ordering code: CIS Set 510; software appropriate for Windows® 95, 98, 2000, NT version 4.0 or newer and XP)
  • Data Sheet - DMP 334i - BD Sensors
    English | pdf
  • Owners Manual - DMP 334i - BD Sensors
    English | pdf
  • Certificate - Conformity Declaration - DMP 334i - BD Sensors
    English | pdf
  • Article - Mounting instructions - DMP 334i - BD Sensors
    English | pdf
