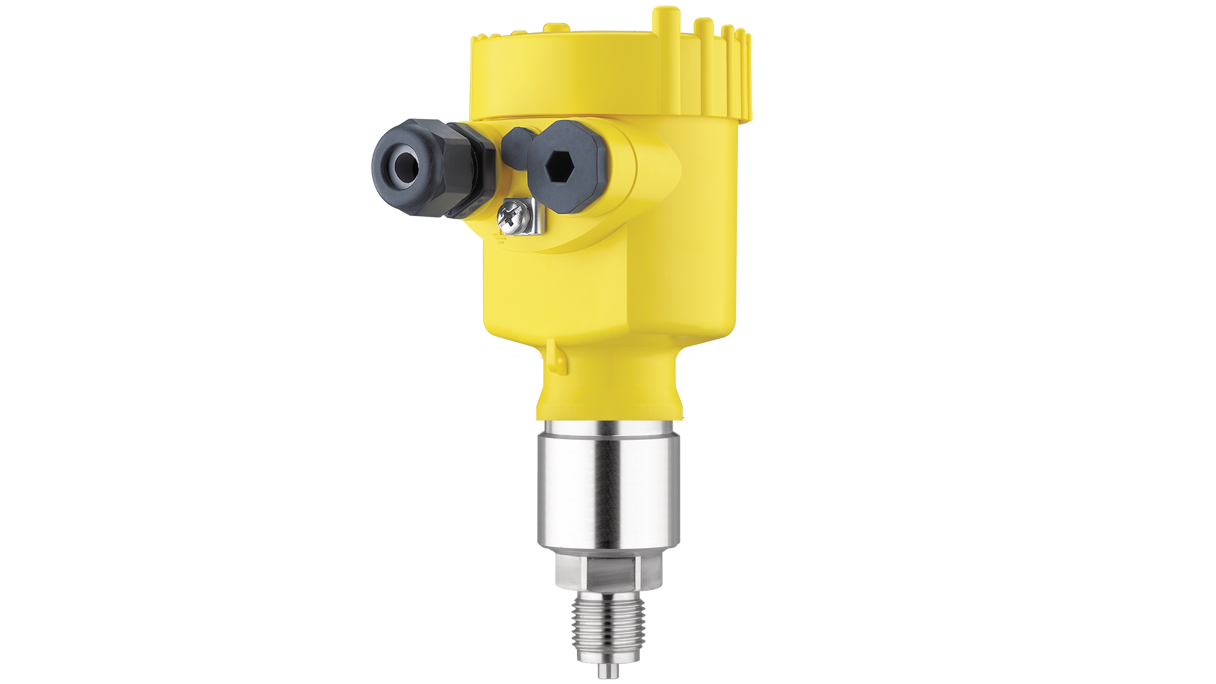

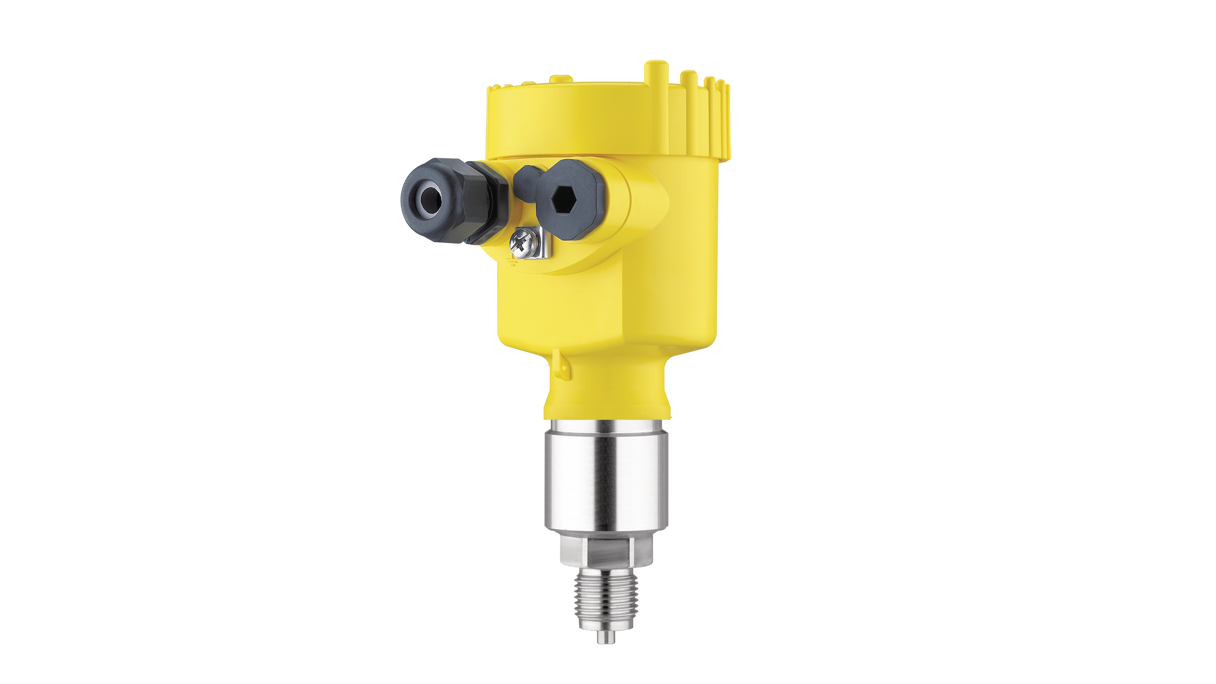

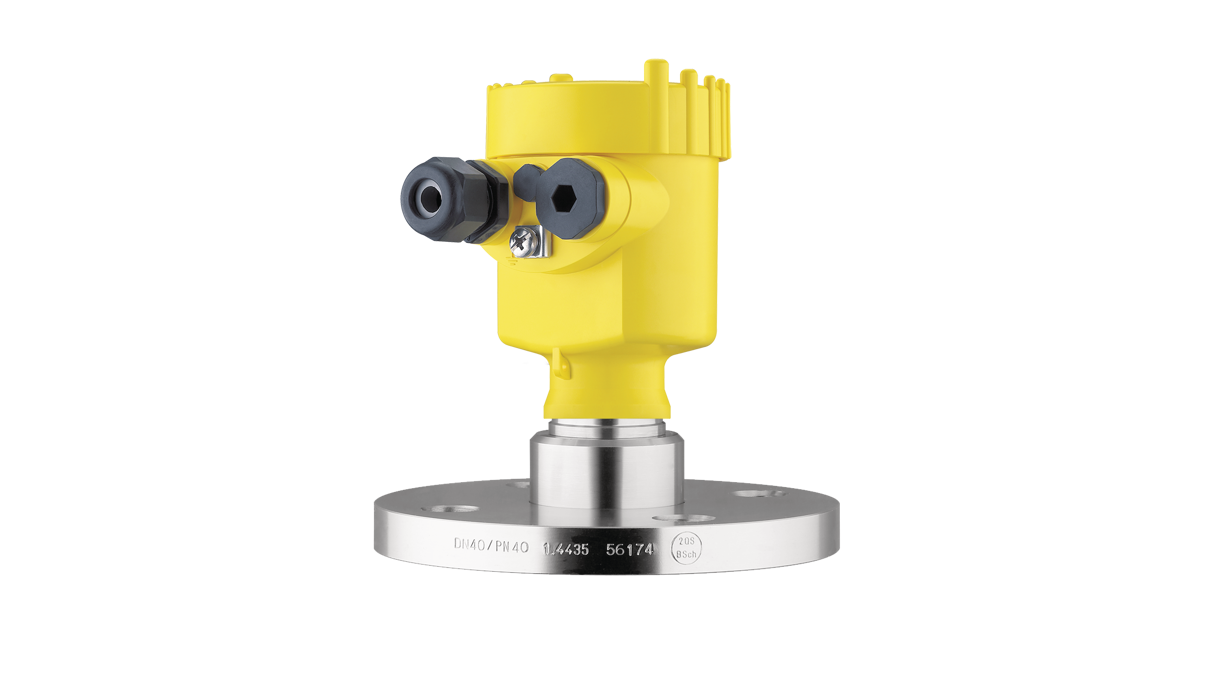

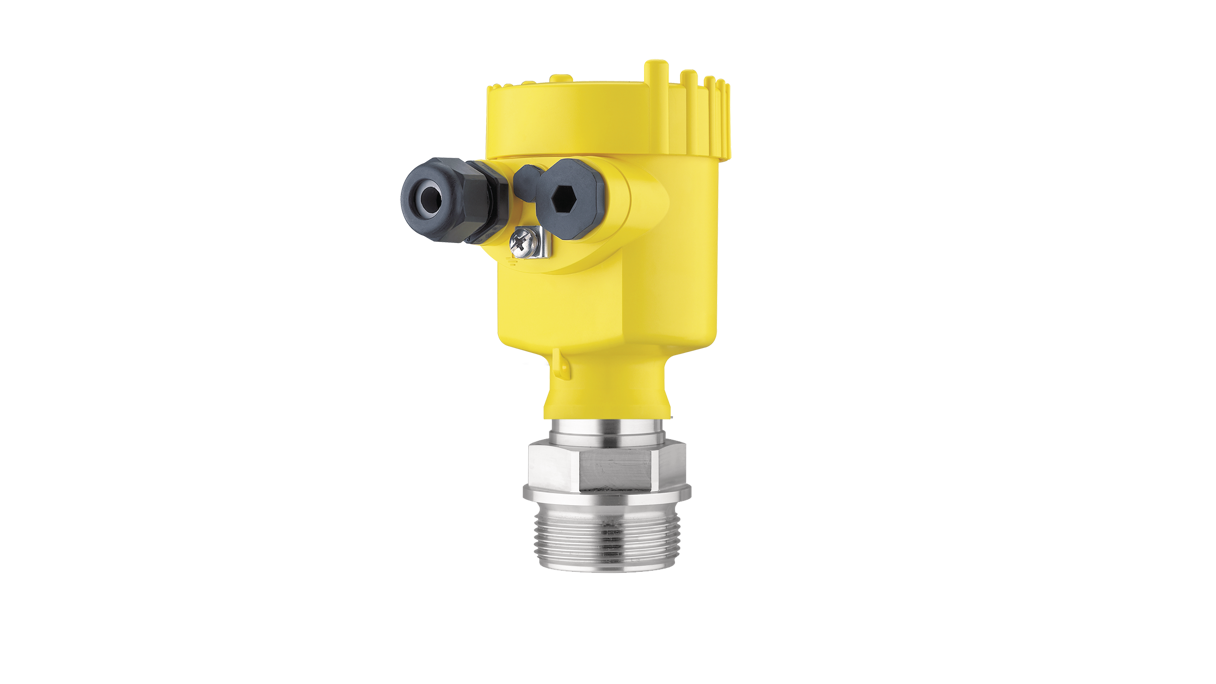

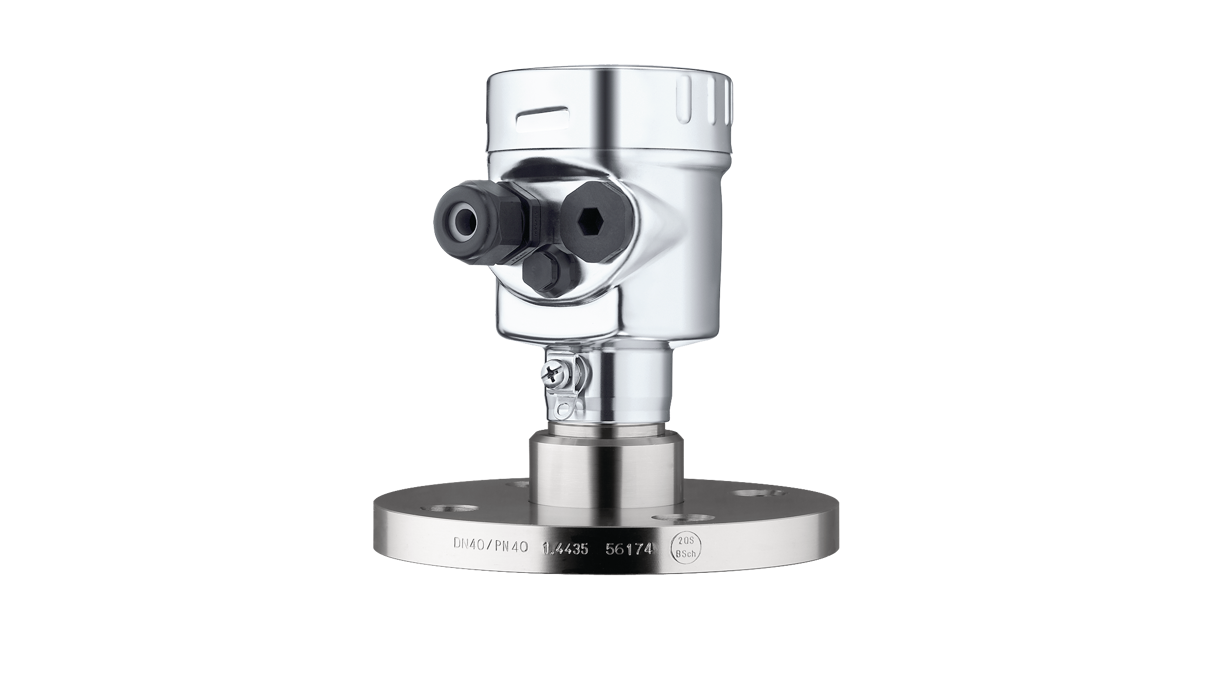

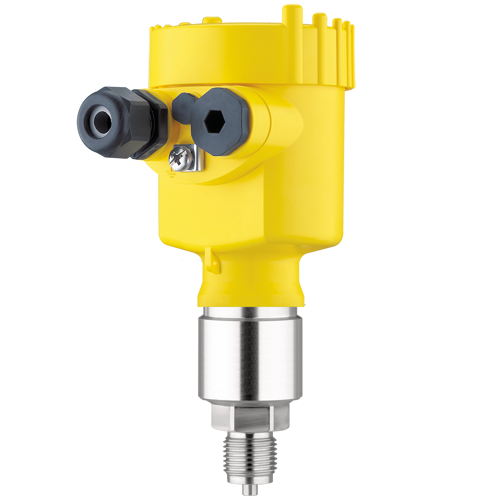

VEGABAR 82 with dry ceramic measuring cell is a versatile pressure transmitter with many possibilities. Can be used universally for the measurement og gases, vapours and liquids. It is a robust all-rounder.
For sales or commercial inquiries please contact us at marine@insatech.com.
The measuring cell is the durable Certec® measuring cell which has been further developed to also have a built-in temperature sensor in the front of the measuring cell. This temperature sensor uses it to compensate for the temperature shock, but at the same time it has the advantage of getting the media temperature out via an output signal.
With the VEGABAR 80 series it is possible to make an electronic differential pressure measurement. The pressure transmitters in the VEGABAR 80 series can be ordered with a slave electronics which can be directly connected to a standard VEGABAR 80 series pressure transmitter, whereby the 2 pressure transmitters now act as a differential pressure transmitter.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range - Pressure | -1 ... 100 bar |
||||||||||||||||||
| Process temperature | -40 ... 150 °C |
||||||||||||||||||
| Process pressure | -1 ... 100 bar |
||||||||||||||||||
| Accuracy | 0.05 % |
||||||||||||||||||
| Output |
|
||||||||||||||||||
| Protection rating |
|
||||||||||||||||||
| Ambient temperature | -40 ... 80 °C |
||||||||||||||||||
| Materials, wetted parts |
|
|---|---|
| Seal material |
|
| Housing material |
|
| Threaded connection |
|
|---|---|
| Flange connection |
|
| Hygenic fittings |
|
| Scope |
|
|---|---|
| Explosion protection |
|
| Foodstuffs/Pharma |
|
| Ship approval |
|
| Overfill protection |
|
| SIL qualification | SIL2 |
