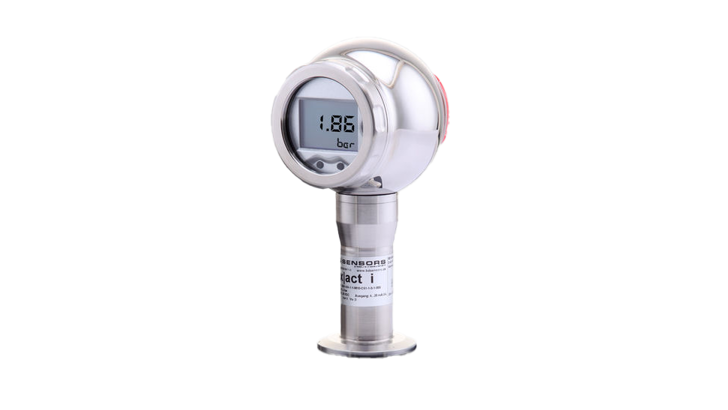

x|act ci
The x|act ci from BD Sensors is a precise pressure transmitter with a special-developed capacititive ceramic sensor, which can be delivered in pure ceramic that has a high overpressure ability and exceptional media stability.
This sensor measures the pressure of a various medias including:
For sales or commercial inquiries please contact us at marine@insatech.com.
The x|act ci pressure transmitter is precise and has the following features that benefits you:
Furthermore, we have numerous process connections available e.g. inch thread or hygienic versions like Varivent, dairy pipe or Clamp.
The x|act ci from BD Sensors is applicable in various settings including:
The x|act ci sensor is applicable in the settings above because of the robust stainless steel globe housing that has a high ingress protection IP 67. Moreover, the sensor has all the characteristics for a residue-free and antibacterial cleaning.
If you have a specific need the x|act ci pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 51E: gauge
|
||||||||||||||||||
| Input [bar] | 1600: 0.16 |
||||||||||||||||||

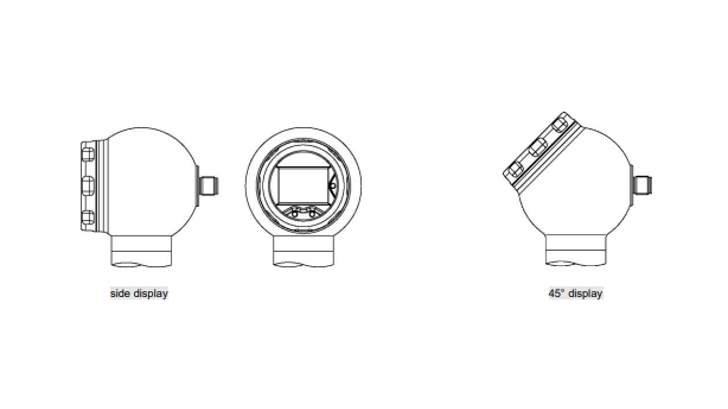

| Design | KH: side display K4: 45° display |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety (ia) and 4 … 20 mA / 2-wire I: intrinsic safety (ia), 4 … 20 mA / 2-wire, and with HART®-communication 9: customer |
||||||||||||||||||
| Accuracy | pN < 1 bar B: 0.2 % FSO pN ≥ 1 bar 1: 0.1 % FSO 9: customer |
||||||||||||||||||
| Electrical connection | M10: male plug M12x1 (4-pin) 999: customer |
||||||||||||||||||
| Mechanical connection | M00: G 1 1/2" DIN flush (DIN 3852) C62: Clamp DN 32 / 1 1/2" (DIN 32676) / 3A C63: Clamp DN 50 / 2" (DIN 32676) / 3A M75: dairy pipe DN 40 (DIN 11851) (Note 1) M76: dairy pipe DN 50 (DIN 11851) (Note 1) P41: Varivent® DN 40/50 F20: flange DN 25 / PN 40 (DIN 2501) F23: flange DN 50 / PN 40 (DIN 2501) F14: flange DN 80 / PN 16 (DIN 2501) DRD: DRD Ø 65 mm (Note 5) 999: customer |
||||||||||||||||||
| Diaphragm | C: ceramics Al2O3 99,9 % 9: customer |
||||||||||||||||||
| Seals | 1: FKM |
||||||||||||||||||
| Pressure port | standard
option for G 1 1/2" flush
|
||||||||||||||||||
| Special version | 000: standard 999: customer |
||||||||||||||||||
| Notes | 1: Cup nut resp. mounting flange is included in the delivery (already pre-assembled) |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
