Sensor type a and b

For measuring temperatures in closed pipelines and containers with gaseous or liquid media, e.g. air, steam, gas, water or oil. Field of application up to 1,150°C, max 50 bar and media velocities of up to 25 m/sec.

For sales or commercial inquiries please contact us at marine@insatech.com.

Temperatur sensor type A

Sensor Pt100 and Pt1000 in acc. with DIN IEC EN 60751.
Thermo couple in acc. with DIN IEC 584-1.
Mechanical and thermal stress in accordance with DIN 43772.
Measuring inset: interchangeable, short reaction time.
Outer protective sheath: Stainless acid-proof steel.
Media temperatures up to 850°C.
Ambient temperature up to 200°C.
Modular construction and standard length minimizes the number of spare parts.
Can be delivered with head mounted transmitter.
Approved by: GOST and GOST Metrology

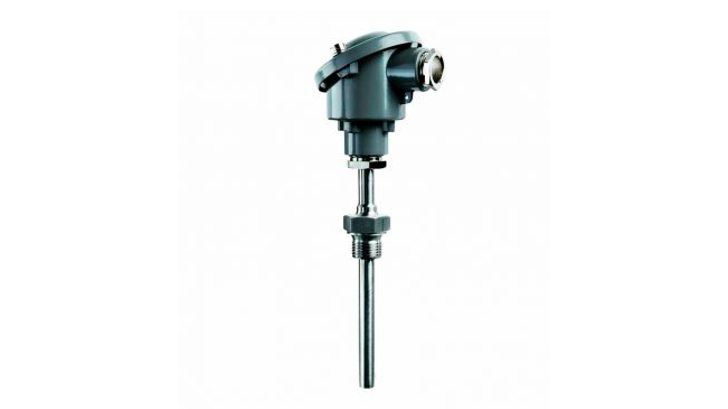

Temperature sensor type B

Pt100 or Pt1000 resistance thermometer in accordance with IEC 60751
Thermo couple in acc. with DIN IEC 584-1
Mechanical and thermal stress in accordance with DIN 43763
Process attachment: welded
Measuring inset: interchangeable, short reaction time
Outer protective sheath: stainless acid-proof steel
Modular construction and standard length minimizes the number of spare parts
Can be delivered with head mounted transmitter
Marine approved by: DNV, LR, GL, NK, RINA, ABS and BV
Approved by: GOST and GOST Metrology

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Specifications & Manuals

Datasheet - Temperature sensor type A - Kjærulf Pedersen
English | pdf

Download
Datasheet - Temperature sensor type B - Kjærulf Pedersen
English | pdf

Download
