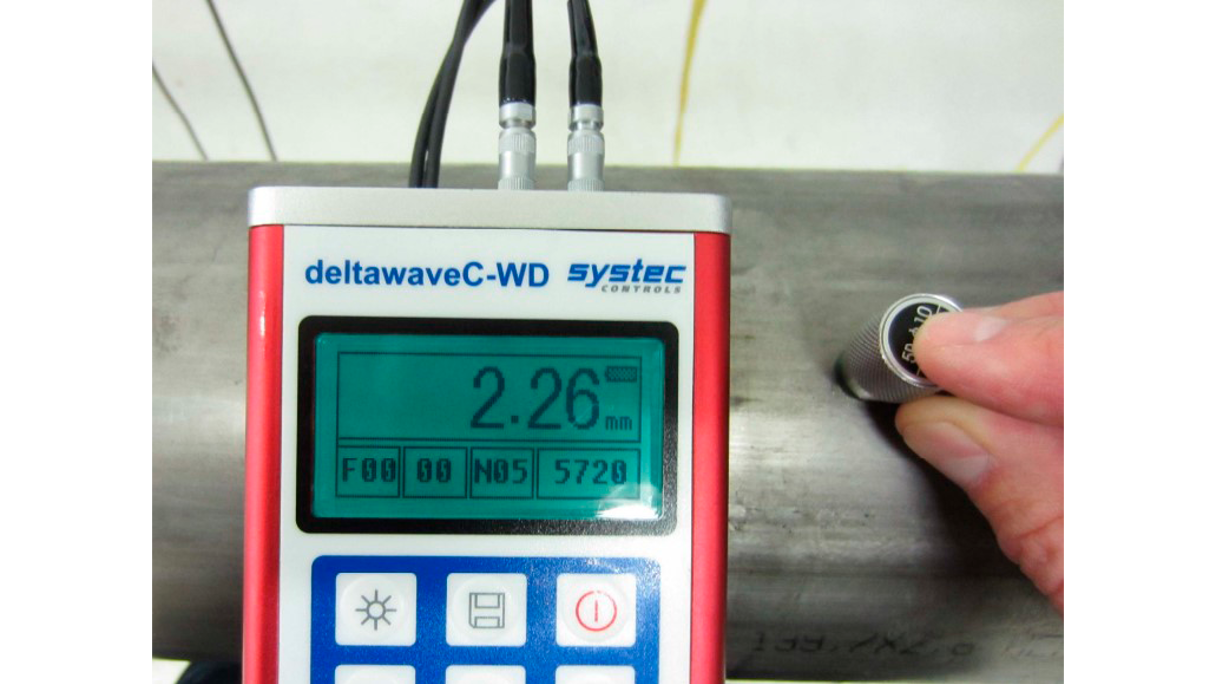

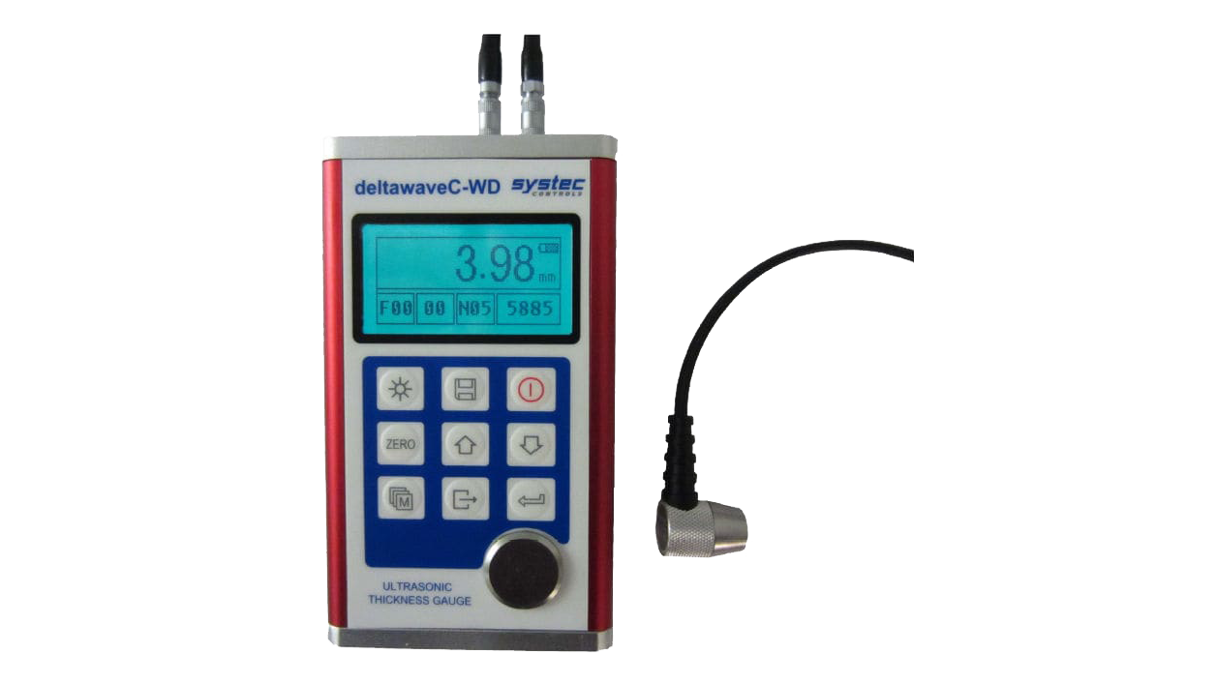

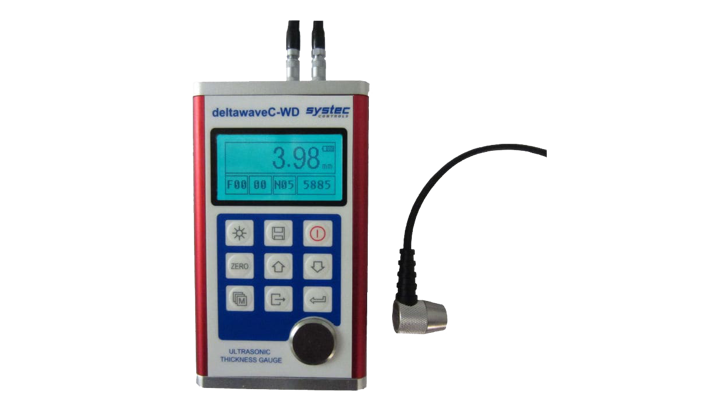

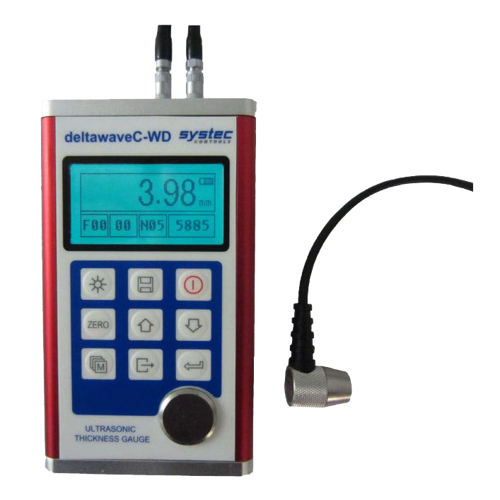

Deltawave C-WD is the new ultrasonic thickness gauge for precise and easy measurements of thickness of pipes and components.
Features:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The thickness measurement is possible for most materials like steel, metals and plastics. deltawaveC-WD offers a broad measuring range and a convenient and easy user interface. This and the robust aluminium enclosure makes it a user-friendly all-rounder for numerous applications and a reliable tool for our ultrasonic flowmeter deltawaveC-WD.
With DeltawaveC make your installations even easier. Instead searching the pipe data, just measure the wall thickness within seconds! DeltawaveC-WD measures your wall thickness of metal, plastic or glass pipes with an accuracy of down to 0.1mm!
The free deltawaveC-WD-software makes your setup even easier and faster. Perform your setup on a PC and simply upload it via USB to your flowmeter. You can print and store several setups on your PC and on your deltawaveC-WD for fast field service. For documentation, printing of the setups and analysis of the ultrasonic signals are also possible.
The new advanced filter technology implemented in deltawaveC-WD improves the quality of difficult measurements significant. The anti-noise-filter reduces most efficient noise from bad pipe walls, particles and aeration and ambient noise from machinery and high power electronics.
The deltawaveC-WD comes with a range of practical features that ensure easy handling and precise measurements:
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brand | Systec Controls |
||||||||||||||||||
| Measuring Principle | Ultrasonic transit time |
||||||||||||||||||
| Display | 128x64 LCD with backlight |
||||||||||||||||||
| Resolution | 0.1mm |
||||||||||||||||||
| Units | Metric / US |
||||||||||||||||||
| Languages | D, UK, IT, F, ESP |
||||||||||||||||||
| Accuracy | +/- (0.5% of thickness +0.04mm) |
||||||||||||||||||
| Supported materials | Common materials (PVC, PE, Steel, copper,…) |
||||||||||||||||||
| Measurement range | 1…230mm (Steel) |
||||||||||||||||||
| Operating Temperature | -20…+70°C |
||||||||||||||||||
| Ultrasonic Transducers | 5 MHZ |
||||||||||||||||||
| Dimensions | HxBxT = 132 x 76.2 x 32mm |
||||||||||||||||||
| Weight | 345 g |
||||||||||||||||||
| Material of enclosure | Aluminium |
||||||||||||||||||
| Power supply | 2x Mignon Typ AA 1.5V |
||||||||||||||||||
