Sensitron SMART 3G D2 Insatech

The Sensitron SMART 3G D2 is a fixed gas detector for Zone 1 hazardous areas, certified to ATEX Category 2 and rated SIL2 (hardware) / SIL3 (software). It detects flammable, toxic, VOC, and refrigerant gases using a choice of catalytic, infrared, electrochemical, or PID sensors - all within a single platform suited for marine and industrial installations.

Key Advantages:

  • Zone 1 / ATEX Category 2 certified for use in explosive atmospheres
  • Four sensor technologies covering flammable, toxic, VOC, and refrigerant gases
  • SIL2 / SIL3 rated for functional safety requirements
  • Non-intrusive field calibration via magnetic pen - no need to open the housing
  • Standard 4–20 mA output with optional RS485 / Modbus communication
  • Continuous self-diagnostics with zero follower drift compensation

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Request a quote for the Sensitron SMART 3G D2

Detectable Gases

The SMART 3G D2 is available in sensor-specific variants. The gas type must be matched to the correct sensor at time of order.

Catalytic sensor: Flammable gases: methane (CH₄), LPG, butane, propane, and other hydrocarbons

Electrochemical cell: Toxic gases and oxygen: carbon monoxide (CO), ammonia (NH₃), oxygen (O₂), and others

Electrochemical cell (intrinsically safe): Chlorine (Cl₂), sulphur dioxide (SO₂), nitrogen dioxide (NO₂)

Infrared (IR): Flammable gases, CO₂, SF₆, and refrigerant gases

PID: VOC (volatile organic compounds)

Fixed Gas Detection for Hazardous Areas

For marine applications, Zone 1 hazardous area detectors are typically required in engine rooms, pump rooms, battery compartments, refrigeration machinery spaces, and other enclosed areas where flammable or toxic gas accumulation is possible in normal operating conditions.

Beyond marine, the SMART 3G D2 is equally suited to a wide range of industrial and commercial installations - including chemical and process plants, food and beverage refrigeration facilities, parking structures, tunnels, and offshore platforms. The C2's wide sensor range - covering ammonia, methane, carbon monoxide, oxygen, refrigerants, and VOCs - makes it a practical choice for installations covering multiple gas hazard types within a single site or vessel.

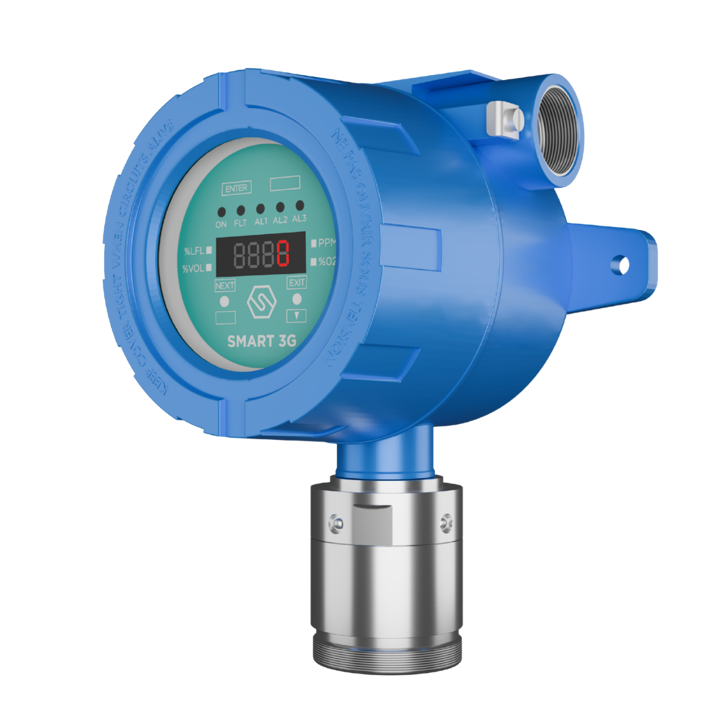

Sensitron SMART 3G D2 Insatech (2)

Why SIL Rating Matters for Gas Detection

SIL (Safety Integrity Level) certification under IEC 61508 is increasingly specified for safety-critical instrumentation on vessels carrying hazardous cargo, LNG carriers, and offshore installations. The SMART 3G D2 carries SIL2 hardware and SIL3 software certification, meaning it has been independently assessed for its ability to perform its safety function on demand and its probability of dangerous failure.

For operators subject to class society requirements, ISM Code audits, or flag state inspections that reference functional safety standards, a SIL-rated detector provides documented evidence of system integrity - not just product certification. Insatech can supply the relevant Sensitron certification documentation on request.

Contact us now for more information

Have a question about the Sensitron SMART 3G D2?

Our technical team can help you select the right sensor configuration, confirm certification documentation, and provide pricing and availability for your vessel or installation.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications
Application

Zone 1, Category 2 (classified and non-classified areas)
Gas types detected

Flammable, toxic, VOC, refrigerant
Sensor technologies

Catalytic bead, infrared (IR), electrochemical cell, PID
Output signal

Standard 4–20 mA (3-wire)
Relay outputs

3 relays (standard)
Communication

Optional RS485 / Modbus protocol
Display

4-digit display + 5 status LEDs
Visual indicator

Multi-colour high-brightness LED crown
Calibration

Non-intrusive, via magnetic pen
Self-diagnostics

Continuous
Drift compensation

Zero follower function
ATEX certification

II 2G Ex db IIC T5 Gb (standard)
ATEX (IS version)

II 2G Ex db [ib] IIC T6 Gb (intrinsically safe sensors)
Optional ATEX

II 2G D (dust) with optional adapter
SIL rating

SIL2 hardware / SIL3 software

Data Sheets

  • Smart 3G-D2 - Catalytic Sensor
    English | pdf
  • Smart 3G-D2 - Electrochemical Sensor
    English | pdf
  • Smart 3G-D2 - Intrinsically Safe Detector
    English | pdf
  • Smart 3G-D2 - Infrared Sensor
    English | pdf
