Detectiveiq Crowcon Insatech

The Crowcon DetectiveIQ is an award-winning portable area monitor designed for temporary and dynamic worksites - turnaround and shutdown procedures, hot work maintenance, confined space entry, and hazardous environments where fixed detection is impractical. It detects up to 7 gases simultaneously in real time, achieves over 101 days battery life in diffusion mode, and connects via Bluetooth® Mesh to form a network of up to 25 interconnected units for fenceline and perimeter monitoring. An optional pump module extends sampling reach to 30 metres. ATEX Ex II 1G Ex ia da IIC T4 - Category 1, Zone 0 rated.

Key Advantages:

  • Zone 0 rated - ATEX Ex II 1G Ex ia da IIC T4, IECEx and CSA US certified
  • Detects up to 7 gases simultaneously in real time
  • 101+ days battery life in diffusion mode (MPS/TOX/O₂ combination)
  • Bluetooth® Mesh - network of up to 25 interconnected units for fenceline monitoring
  • Optional pump module - gas sampling up to 30 metres
  • IP66 and IP68 rated - floats

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Request a quote for the Crowcon DetectiveIQ

Product features

Real-time detection of up to 7 gases
The DetectiveIQ monitors up to 7 gases simultaneously with T90 response times under 20 seconds. Modular sensor trays support a wide range of sensor types - electrochemical, IR, MPS™, pellistor, PID, and long-life O₂ - and are swappable in the field with minimal tools.

Industry-leading battery life
Over 101 days in diffusion mode for MPS/TOX/O₂ configurations - meaning the DetectiveIQ can be deployed for the duration of an extended shutdown without battery management becoming an operational concern. PID configurations achieve 20 days in diffusion mode; pump mode configurations 15 days (pellistor) and 9 days (with PID).

Bluetooth® Mesh - fenceline and perimeter monitoring
Up to 25 DetectiveIQ units can be interconnected via Bluetooth® Mesh for fenceline deployment and perimeter monitoring - providing coordinated area coverage across a large temporary worksite without fixed infrastructure.

Optional pump module - 30 m sampling reach
The optional pump module extends gas sampling reach to 30 metres, allowing the DetectiveIQ to monitor remote or hard-to-access locations from a safe distance - relevant for confined space pre-entry atmosphere testing and remote hazard point monitoring.

Effortless serviceability
Minimal screws and parts simplify field servicing. The outer casing, boot, and handle are replaceable, and pull-in/pull-out sensor trays allow rapid sensor changes with reduced downtime. 6-monthly calibration intervals minimise routine maintenance requirements.

Rugged construction - floats
IP66 and IP68 rated. Floats. Operating range -20°C to +55°C. Built from ASA and Pebax materials for durability in demanding outdoor and industrial environments.

Crowcon Connect integration
Real-time alarms, compliance dashboards, location tracking, device configuration, and reporting via the cloud-hosted Crowcon Connect platform - accessible from any connected device.

Area Monitoring for Shutdowns, Turnarounds, and Temporary Worksites

Fixed gas detection systems protect permanent installations. But some of the most hazardous gas detection scenarios occur in temporary, dynamic, or variable environments - turnaround and shutdown operations, maintenance in confined spaces, hot work permit procedures, and temporary construction or demolition activities within industrial facilities.

In these environments, fixed systems either are not present or do not cover the temporary hazard zone created by the work activity. Workers rely on personal detectors for individual protection, but personal detectors do not provide area coverage - they alarm when the wearer is personally exposed, not when gas is present in the broader workspace.

The DetectiveIQ fills this gap. Deployed at the perimeter of a temporary worksite or at hazard points within a confined space entry operation, it provides continuous area monitoring for up to 7 gases regardless of worker position. Its 101-day battery runtime in diffusion mode covers extended shutdowns without recharging, and its IP66/IP68 rating and floating capability make it suitable for wet, outdoor, and marine environments where standard equipment would fail.

For operations on offshore platforms, vessels in dry dock, or industrial facilities undergoing major maintenance, the DetectiveIQ provides the area coverage layer that personal detectors alone cannot replicate.

Contact us for product selection advice

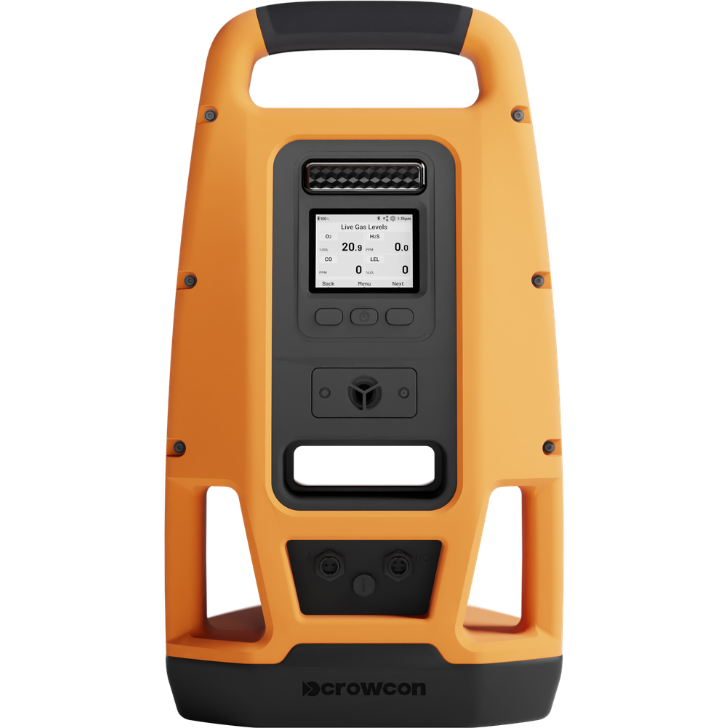

Detectiveiq Crowcon Front Insatech

Personal Detectors vs Area Monitors - Understanding When You Need Both

A complete portable gas detection programme for hazardous work operations typically requires both personal detectors and area monitors - and understanding the distinction is important for specifying the right equipment.

Personal detectors (UnoIQ, DuoIQ, Gas Pro, T4, T4x) - worn by individual workers. Protect the wearer from personal exposure. Do not provide coverage for the broader work area or for other workers nearby. Essential for all workers entering a hazardous area.

Area monitors (DetectiveIQ) - deployed at fixed points within a temporary worksite. Provide continuous coverage of a defined area regardless of worker position. Alarm when gas is detected in the zone - protecting all workers present, not just the individual wearing a detector. Essential for confined space entry operations, shutdown and turnaround work, and any operation where multiple workers enter and exit a hazardous space over an extended period.

For confined space entry specifically, best practice - and the requirement under most flag state, class society, and industrial safety frameworks - is to test the atmosphere before entry using a portable detector with a pump or aspirator, then monitor continuously during the work activity using both personal detectors on workers and an area monitor at the entry point.

Contact our team to discuss the right combination of personal and area detection for your specific operation.

Have a question about the Crowcon DetectiveIQ?

Our team can advise on sensor configuration, Bluetooth® Mesh network setup, pump module requirements, and whether the DetectiveIQ suits your shutdown, confined space, or temporary worksite application.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications
Product

Crowcon DetectiveIQ
Type

Portable area monitor
Dimensions (standard)

298 × 536 × 268 mm
Weight

8.1 kg
Material

ASA & Pebax
Maximum gases detected

7 simultaneously
Response time (T90)

<20 seconds
Alarms

97 dB audible (at 30 cm), visual - low/high, TWA, STEL
Display

Colour LCD display
Data logging

Up to 8,640 event logs
Battery - MPS/TOX/O₂ (diffusion)

101+ days
Battery - PID/MPS/TOX/O₂ (diffusion)

15 days
Battery - PID/pellistor/TOX/O₂ (pump)

9 days
Pump sampling

Optional pump module — up to 30 m
Connectivity

Bluetooth® Mesh — up to 25 interconnected units
Calibration interval

6 months
Ingress protection

IP66 and IP68 — floats
Operating temperature

-20°C to +55°C
Humidity

0–95% RH
Sensors

Electrochemical, IR, MPS™, pellistor, PID, long-life O₂
ATEX

Ex II 1G Ex ia da IIC T4
IECEx

Ex ia da IIC T4
INMETRO

Ex ia da IIC T4
CSA US

Class I, Division 1, Groups A, B, C, D, Ex ia da IIC T4
Warranty

2 years (sensor warranty separate)

Detectable gases and ranges

Gas Range Resolution
Methane (CH₄) 0–100% LEL 1% LEL
Carbon dioxide (CO₂) 0–5% vol. 0.01% vol.
Carbon monoxide (CO) 0–5,000 ppm 1 ppm
Carbon monoxide (CO) + hydrogen sulphide (H₂S) 0–500 ppm CO / 0–100 ppm H₂S 1 ppm CO / 0.1 ppm H₂S
Hydrogen sulphide (H₂S) 0–1,000 ppm 0.1 ppm
Flammable gases — MPS ATEX (5-pin) 0–100% LEL 1% LEL
Flammable gases — MPS UL (5-pin) 0–100% LEL 1% LEL
Oxygen (O₂) 0–25% vol. 0.1% vol.
Propane (C₃H₈) 0–100% LEL 1% LEL
VOC 0–20,000 ppm 1 ppm
