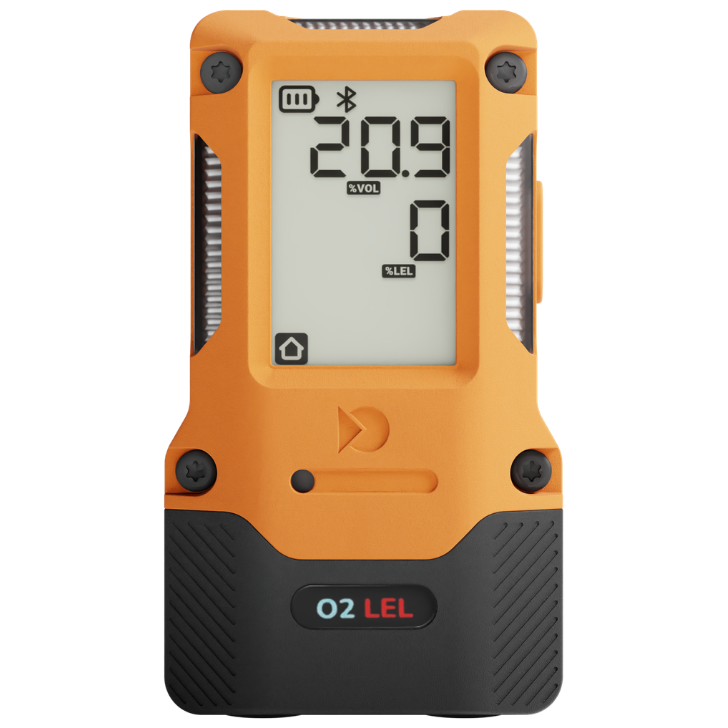

Crowcon DuoIQ

The Crowcon DuoIQ is an award-winning compact dual gas detector built for personal protection against two simultaneous gas hazards. Sharing the same platform, form factor, and Zone 0 ATEX certification as the UnoIQ, it adds dual gas detection without significantly increasing size or weight - at 139.8 g, it remains one of the most compact dual gas detectors available. Modular pre-calibrated sensor trays are field-swappable, battery life reaches up to 20 days at 8-hour shifts for tox/O₂ combinations, and Crowcon Connect integration provides cloud-hosted safety monitoring and compliance management.

Key Advantages:

Zone 0 rated - ATEX Ex II 1G Ex ia IIC T4 Ga, IECEx and CSA US certified
Dual gas detection - monitors two gases simultaneously
Up to 20 days battery life at 8-hour shifts (tox/O₂ combination)
Modular pre-calibrated sensor trays - field-swappable without manufacturer intervention
IP66 and IP68 rated - drop tested to 6 metres

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Request a quote for the Crowcon DuoIQ

Product features

Dual gas detection in a compact form factor
The DuoIQ monitors two gases simultaneously without the size and weight increase typically associated with multi-gas detectors. At 139.8 g and the same dimensions as the UnoIQ, it provides dual gas coverage in a form factor workers are comfortable wearing throughout a full shift.

Modular, serviceable sensor trays
Pre-calibrated sensor trays are swapped in the field without manufacturer intervention. The detector recognises the new tray automatically and is ready to use immediately - reducing downtime and service overhead across large fleets.

Extended battery life
Up to 20 days at 8-hour shifts for tox/O₂ + tox sensor combinations. IR and pellistor combinations provide shorter runtimes. Recharge from 0–80% in 2 hours, 0–100% in under 3 hours.

IQhub integration
Automated bump testing in under 10 seconds and calibration in under 30 seconds via the Crowcon IQhub docking station. Compliance records generated and stored automatically.

Crowcon Connect
Cloud-hosted platform providing real-time alarms, compliance dashboards, location tracking, device configuration, and reporting for all connected devices. Calibration certificates are stored and retrievable directly from Crowcon Connect - simplifying audits and inspections.

One button operation
Single button design with backlit segment display - simple to operate in demanding conditions and suitable for use with work gloves.

Rugged construction
IP66 and IP68 rated, drop tested to 6 metres, operating range -20°C to +55°C.

Two Gas Hazards, One Detector - When Dual Gas Detection Is the Right Specification

Many working environments present more than one gas hazard simultaneously. Confined space entry typically requires monitoring for oxygen depletion alongside at least one toxic gas - usually CO or H₂S depending on the space. Maintenance in engine rooms may involve both flammable gas and CO risk. Pump room entry on a product tanker may require both H₂S and flammable gas monitoring simultaneously.

The conventional response is to specify a larger multi-gas detector. But where exactly two gas hazards need to be covered and minimising equipment bulk and cost per unit matters - as it does in marine environments where crew may be equipped individually for routine maintenance and inspections - a dual gas detector provides the right balance of coverage and practicality.

The DuoIQ covers this requirement without compromising on certification - Zone 0 / ATEX Category 1 rated, IECEx certified, and built on the same platform as the UnoIQ - making it suitable for the most demanding classified hazardous area applications on board vessels and offshore installations.

UnoIQ vs DuoIQ - Single or Dual Gas?

The UnoIQ and DuoIQ share the same platform, dimensions, certifications, connectivity, and accessories. The practical distinction is straightforward:

UnoIQ - single gas detection. Up to 31 days battery life at 8-hour shifts for toxic and O₂ sensors. The right choice where one specific gas hazard is present and maximum battery runtime or lowest cost per unit is the priority.

DuoIQ - dual gas detection at the same form factor. Up to 20 days battery life at 8-hour shifts for tox/O₂ combinations. The right choice where two gas hazards need to be monitored simultaneously without moving to a larger multi-gas unit.

If your application involves more than two gas types - for example full confined space entry monitoring covering O₂, CO, H₂S, and flammable gas - the Gas Pro multi-gas range covers up to five gases simultaneously. Contact our team to confirm which configuration suits your specific hazard profile.

Have a question about the Crowcon DuoIQ?

Our team can advise on sensor combination selection, IQhub compatibility, Crowcon Connect setup, and whether the DuoIQ or another model in the Crowcon range suits your application.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com

Worldwide delivery from Insatech

Insatech delivers products to customers worldwide, supporting both individual product orders and ongoing supply needs for businesses, resellers, and agents.

We regularly supply customers across Europe, North America, the Middle East, and Asia-Pacific, including Germany, Spain, Italy, the USA, Canada, the UAE, Singapore, the Netherlands, the United Kingdom, Greece, India, Hong Kong, France, Norway, Sweden, Poland, Latvia, Japan, Portugal, Cyprus, Belgium, and Australia.

With reliable international delivery and experience handling global orders, we help ensure that the products you need can reach you wherever your business is located.

See how we deliver worldwide

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Technical Specifications
Product	Crowcon DuoIQ
Type	Dual gas portable detector
Dimensions (standard)	96 × 55 × 32 mm
Dimensions (deep tray)	106 × 55 × 32 mm
Weight	139.8 g (configuration dependent)
Response time (T90)	<10 seconds (sensor dependent)
Alarms	95 dB audible, visual, vibration - low/high, TWA, STEL
Display	Backlit segment display
Data logging	Up to 500 event logs
Battery — tox/O₂ + tox	7 days continuous / 20 days at 8-hour shifts
Battery — tox/O₂ + IR	1 day continuous / 4 days at 8-hour shifts
Battery — tox/O₂ + pellistor	1 day continuous / 3 days at 8-hour shifts
Recharge time	0–80% in 2 hours / 0–100% in under 3 hours
Connectivity	NFC + optional Bluetooth® (Crowcon Connect)
Ingress protection	IP66 and IP68
Drop tested	6 metres
Operating temperature	-20°C to +55°C
Humidity	0–95% RH
Sensors	Electrochemical, IR, pellistor, long-life O₂
ATEX	Ex II 1G Ex ia IIC T4 Ga
IECEx	Ex ia da IIC T4 Ga
INMETRO	Ex ia IIC T4 Ga
CSA US	Class I, Division 1, Groups A, B, C, D T4
Warranty	2 years (sensor warranty separate)

Detectable gases and ranges

Gas	Range	Resolution
Ammonia (NH₃)	0–100 ppm	0.1 ppm
Butane (C₄H₁₀)	0–100% LEL	1% LEL
Carbon dioxide (CO₂)	0–2% vol.	0.01% vol.
Carbon monoxide (CO)	0–250 ppm	1 ppm
Chlorine (Cl₂)	0–10 ppm	0.1 ppm
Hydrogen sulphide (H₂S)	0–100 ppm	0.1 ppm
Methane (CH₄)	0–100% LEL	1% LEL
Nitrogen dioxide (NO₂)	0–20 ppm	0.1 ppm
Oxygen (O₂)	0–25% vol.	0.1% vol.
Ozone (O₃)	0–1 ppm	0.1 ppm
Sulphur dioxide (SO₂)	0–20 ppm	0.1 ppm
