UNIOQ Crowcon Insatech

The Crowcon UnoIQ is a compact, rechargeable single gas detector built for personal protection in demanding environments. It features modular pre-calibrated sensor trays swappable in the field, up to 31 days battery life at 8-hour shifts, and Crowcon Connect connectivity via Bluetooth® and NFC. ATEX Category 1 - Zone 0 rated. Upgradeable to dual gas detection.

Key Advantages:

  • Zone 0 rated - ATEX Ex II 1G Ex ia IIC T4 Ga, IECEx and CSA US certified
  • Up to 31 days battery life at 8-hour shifts (toxic and O₂ sensors)
  • Modular sensor trays - field-swappable without manufacturer intervention
  • Crowcon Connect - cloud-hosted safety monitoring and asset management
  • IP66 and IP68 rated - drop tested to 6 metres

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Request a quote for the Crowcon UnoIQ

Product features

Modular, serviceable sensor trays
Sensor trays are pre-calibrated and designed to be swapped in the field without manufacturer intervention. A new tray is inserted, the detector recognises it automatically, and the unit is back in service immediately - no specialist tools, no service return required.

Extended battery life
Up to 31 days at 8-hour shifts for toxic and O₂ sensors. IR and pellistor sensor variants provide shorter runtimes depending on sensor load. Recharge from 0–80% in 2 hours, 0–100% in under 3 hours.

IQhub integration
Dock-and-go functionality with the Crowcon IQhub docking station. Automated bump testing in under 10 seconds and calibration in under 30 seconds - with compliance reporting generated automatically.

Crowcon Connect
Cloud-hosted platform for real-time safety monitoring and asset management - covering live alarms, compliance dashboards, location tracking, device configuration, and reporting. Accessed via Bluetooth® or NFC.

Upgradeable to dual gas
The UnoIQ can be upgraded to dual gas detection, providing a path to expanded coverage without replacing the unit.

One button operation
Single button design with backlit segment display - simple to operate in demanding conditions and suitable for use with work gloves.

Rugged and reliable
IP66 and IP68 rated, drop tested to 6 metres, operating range -20°C to +55°C. Built for real working environments across marine, offshore, industrial, and construction applications.

Zone 0 Rated - What the ATEX Category 1 Classification Covers

The UnoIQ carries ATEX Ex II 1G Ex ia IIC T4 Ga certification - Category 1, rated for Zone 0. This is the highest ATEX classification for gas detection equipment and means the UnoIQ can be used in Zone 0, Zone 1, and Zone 2 classified areas. Zone 0 designates spaces where an explosive atmosphere is present continuously, for long periods, or frequently - including the interior of storage tanks, cargo tanks, and similar enclosed spaces on vessels and offshore installations.

For ship operators and safety managers specifying personal gas detection for confined space entry into cargo tanks and similar Zone 0 spaces, a Category 1 / Zone 0 rated detector is the correct specification. The UnoIQ's Zone 0 rating combined with its wide gas coverage - including H₂S, CO, NH₃, O₂, CH₄, and Cl₂ - makes it a practical choice for the most demanding confined space entry applications in marine and offshore environments.

Contact us for product selection advice

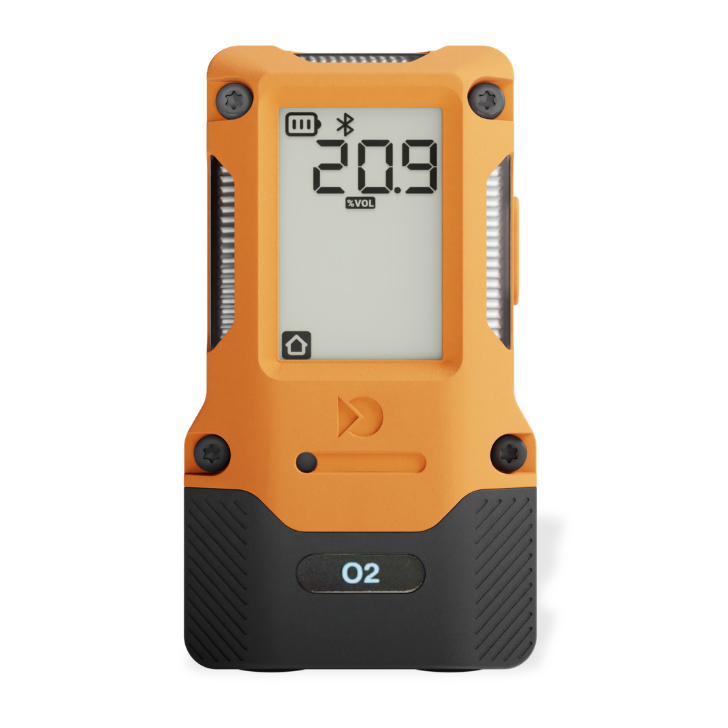

UNIOQ Crowcon Front Insatech

Managing a Gas Detector Fleet - What Crowcon Connect Adds

For safety managers, vessel superintendents, and facilities operators running multiple gas detectors across a site, fleet, or organisation, the administrative burden of compliance maintenance - bump testing, calibration, event logging, certificate management - grows quickly with the size of the fleet.

Crowcon Connect addresses this directly. The cloud-hosted platform aggregates real-time data from all connected UnoIQ devices - showing live gas readings, alarm events, device status, and compliance status in one dashboard. Calibration and bump test records are generated automatically via IQhub and stored centrally, removing manual logging from the process. Location tracking supports accountability across large or distributed operations.

For operators managing gas detection across multiple vessels, sites, or contractors, Crowcon Connect provides the visibility and documentation trail that compliance programmes require - without the manual overhead that typically comes with it.

Have a question about the Crowcon UnoIQ?

Our team can advise on sensor type selection, IQhub compatibility, Crowcon Connect setup, and whether the UnoIQ or another model in the Crowcon range suits your application.

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications
Product

Crowcon UnoIQ
Type

Single gas portable detector
Dimensions (standard)

96 × 55 × 32 mm
Dimensions (deep tray)

106 × 55 × 32 mm
Weight

134.2 g (configuration dependent)
Response time (T90)

<10 seconds (sensor dependent)
Alarms

95 dB audible, visual, vibration - low/high, TWA, STEL
Display

Backlit segment display
Data logging

Up to 500 event logs
Battery — toxic and O₂

10 days continuous / 31 days at 8-hour shifts
Battery — IR sensor

1 day continuous / 4 days at 8-hour shifts
Battery — pellistor sensor

1 day continuous / 3 days at 8-hour shifts
Recharge time

0–80% in 2 hours / 0–100% in under 3 hours
Connectivity

NFC + optional Bluetooth® (Crowcon Connect)
Ingress protection

IP66 and IP68
Drop tested

6 metres
Operating temperature

-20°C to +55°C
Humidity

0–95% RH
Sensors

Electrochemical, IR, pellistor, long-life O₂
ATEX

Ex II 1G Ex ia IIC T4 Ga
IECEx

Ex ia da IIC T4 Ga
INMETRO

Ex ia IIC T4 Ga
CSA US

Class I, Division 1, Groups A, B, C, D T4
Warranty

2 years (sensor warranty separate)

Detectable gases and ranges

Gas Range Resolution
Ammonia (NH₃) 0–100 ppm 0.1 ppm
Butane (C₄H₁₀) 0–100% LEL 1% LEL
Carbon dioxide (CO₂) — non-IS 0–2% vol. 0.01% vol.
Carbon monoxide (CO) 0–250 ppm 1 ppm
Chlorine (Cl₂) 0–10 ppm 0.1 ppm
Hydrogen sulphide (H₂S) 0–100 ppm 0.1 ppm
Methane (CH₄) 0–100% LEL 1% LEL
Nitrogen dioxide (NO₂) 0–20 ppm 0.1 ppm
Oxygen (O₂) 0–25% vol. 0.1% vol.
Ozone (O₃) 0–1 ppm 0.1 ppm
Sulphur dioxide (SO₂) 0–20 ppm 0.1 ppm

Datasheets

Manuals

Certificates

  • ATEX Certificate - UnoIQ/DuoIQ
    English | pdf
  • IECEx Certificate - UnoIQ/DuoIQ
    English | pdf
  • cCSAus Certificate - UnoIQ/DuoIQ (Toxic & Oxygen)
    English | pdf
