Ghibson Actuator pneumatic

Pneumatic actuators - MT Series from Ghibson

Double and single acting actuators for valves with 90 ° rotation. The side stops can be adjusted by ± 10 ° so that the maximum rotation is 110 ° and the minimum is 70 °. However, they can be changed to higher or lower angles on request.

Features and advantages:

  • Compact
  • Lifetime lubrication
  • Bi-directional travel stop
  • Multitude options

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

MT Series Pneumatic Actuators in 2 Models

Gibson's MT Series pneumatic actuators are built upon robust rack and pinion technology, are compact, and resistant to the harshest environmental conditions encountered in the marine industry.

2 models available

Model MT: Double acting

Mod. MTS: Single acting spring return

Versatile and customizable

The MT series actuators offer a multitude of options to cater to diverse industrial applications and varying ambient conditions, whether you require:

  • IP65 NAMUR
  • IP67 boxes
  • Explosion-proof boxes
  • Pneumatic positioners
Need more information? Contact us

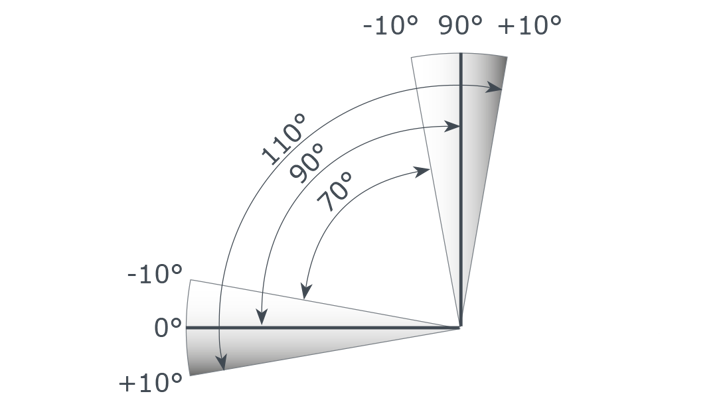

Adjustment Angel Pneumatic Actuator Ghibson

Feature: Bi-directional travel stop

MT series actuators come equipped with a bi-directional travel stop.

Positioned on the sides, these stops allow an adjustment of ±10° in both closing and opening directions, ensuring a range of adjustment between 70° and 110° of actuator stroke.

If needed, stops can be modified on request to allow higher closing/opening angles.

Exactly what you need? Contact us here

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Contact us now

Technical Specifications

Clean and dry air Pmax 10 bar

  • O-rings NBR: -20 ° C / + 100 ° C
  • O-ring FKM: -15 ° C / + 150 ° C
  • O-ring Silicone: -50 ° C / + 80 ° C

ISO 5211 / DIN 3337, Star connection


Magnet valve, positions, switch boxes

  • Model MT: Double acting
  • Model MTS: Single acting (spring return)

Product specifications and manuals

  • Brochure - Actuators Pneumatic, Electric and Hydraulic - Ghibson
    English | pdf
