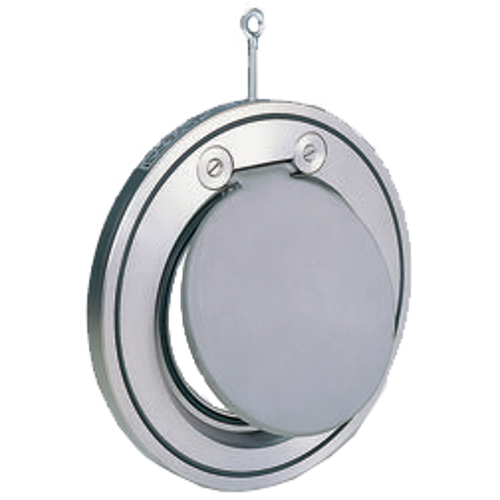

Kvadrat Medium Ghibson Kontraventil GS (1)

Ghibson - Wafer check valve GS 011

This swing type valve from Ghibsons GS series is available with DN 40 to DN 500 - 1 1/4 "to 20". Moreover, it is small in size, low in weight, and can be installed horizontally or vertically. Available with house in galvanized steel and flap, spring, and screws in stainless steel.

Features with GS 011:

  • Pmax 25-52 bar depending on flanges
  • Swing type - for upwards and horizontal flow
  • No leackage with soft seat
  • Low head losses

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Flanges

  • DN 40 to DN 500, PN 6 to PN 16 and ANSI 150 - Pmax 25 bar
  • DN 40 to DN 300, ANSI 300 - Pmax 52 bar
  • Other pressure steps

Require another material for this valve?

Depending on your application, consider:

  • GS 015 made of stainless steel
  • GS 095 made of Super Duplex and INCONEL 718

Need more information? Contact us

169 Ghibson Wafer Kontraventil GS 011

GS 015 made of stainless steel

GS 011 check valves are now obsolete.

Consider the GS 015:

  • Stainless steel, making it suitable for aggressive environments
  • Pmax: 25-52 Bar depending on flange
  • Easy mounting
  • Low head losses

Ghibson - Wafer check valve GS 015

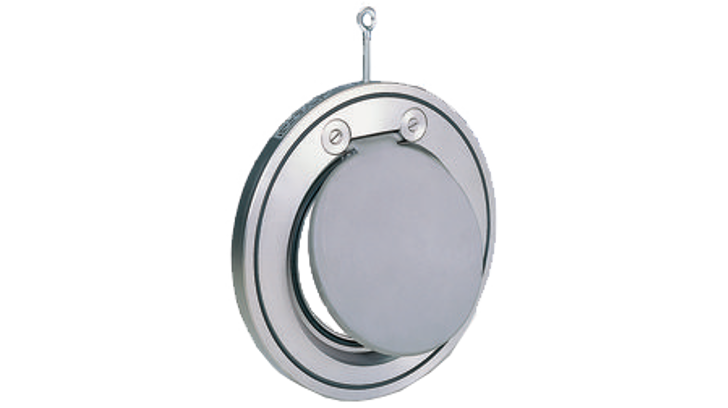

169 Medium Ghibson Kontraventil GS (1)

Get in Touch with Our Experts

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Technical Specifications
For flanges
  • DN 40 to DN 500, PN 6 to PN 16 and ANSI 150 - Pmax 25 bar
  • DN 40 to DN 300, ANSI 300 - Pmax 52 bar
  • Other pressure steps on request
Materials
  • House: Galvanized steel
  • Flap:
    • Stainless steel (DN 40 - DN 200)
    • Galvanized steel (DN 250 - DN 500)
  • O-ring: NBR, EPDM, FKM, PTFE
  • Screws and pins: Stainless steel
  • Spring: Stainless steel

Other materials on request
Certificate

Possibility of 3.1 material certificate

Product specifications and manuals

  • Brochure - Check Valve - Ghibson
    English | pdf
  • Certificate - Check Valve GA, GB, GN, GT, PED - Ghibson
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
