Kvadrat Medium Ghibson Kontraventil GT

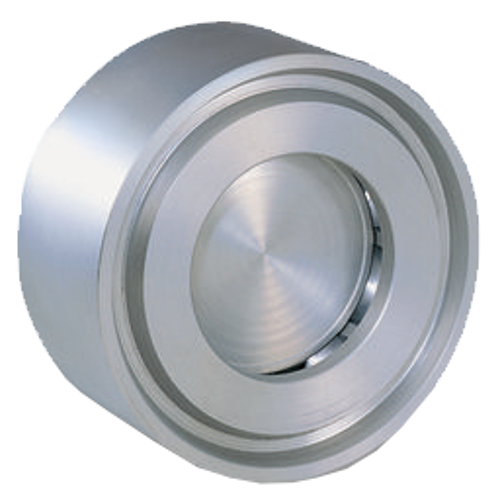

Ghibson - Wafer check valve GT 015 is available in DN 15 to DN 100 - 1/2 "to 4", Pmax 160 bar. Moreover, it is small in size, low in weight, and can be installed in all positions. Available with house, disc, spring, and seat in stainless steel. Usable also as vacuum breacker, overpressure and bottom valve.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

For flanges

  • PN 63 to PN 160, ANSI 600 to ANSI 900

169 Ghibson Wafer Kontraventil GA 015
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
For flanges

PN 63 to PN 160, ANSI 600 to ANSI 900

Ghibson - special spring table

Opening pressure
  • From 20 to 500 mbar
  • Opening pressure with special springs (± 10%)
Materials
  • House: Stainless steel
  • Disc: Stainless steel
  • O-ring: NBR, EPDM, FKM, PTFE
  • Spring: Stainless steel. Hastelloy on request
  • Seat: Stainless steel
Certificate

Possibility of 3.1 material certificate

Product specifications and manuals

  • Ghibson - Brochure, check valve
    English | pdf
  • Ghibson - Certificate Check GA, GB, GN, GT, PED
    English | pdf
