With valves in the UBB series, it is possible to achieve two different kinds of functions: Can work as a spring-loaded, direct acting pressure-reducing regulator or as a pressure-relief valve. The valve acts both pressure-reducing and counter-pressure controlling.
For sales or commercial inquiries please contact us at marine@insatech.com.
Used in a wide range of industrial applications for process gases (including air).

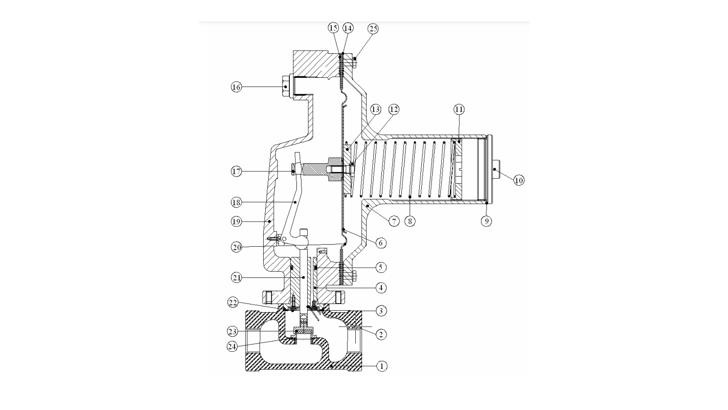

The large diaphragm provides accurate control even at low pressures, and the built-in lever principle provides good shut-off density. Easy to install and maintain due to the simple construction.
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Function | Reduction / pressure relief / back pressure |
||||||||||||||||||
| Size | From 1/2 "to 1 1/2" |
||||||||||||||||||
| Connection | Thread (F-NPT or GAS / BS) |
||||||||||||||||||
| Seat | Single |
||||||||||||||||||
| Pressue step | Max ANSI 150 |
||||||||||||||||||
| CV | From 0.04 to 4.95 |
||||||||||||||||||
| Valve housing | Steel or stainless steel |
||||||||||||||||||
| Trim | Stainless steel (standard) |
||||||||||||||||||
| Membrane | NBR |
||||||||||||||||||
| Input pressure | 10 bar(g) |
||||||||||||||||||
| Pressure control range | 3.4 to 610 mbar(g) |
||||||||||||||||||
| Temperature |
|
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
