INSATECH Silver (Free) Ionisation Test Colour2

Silver (Free) Ionisation Testing Solutions

The INS-K100109 Silver (Free) Ionisation Test Kit is a portable system for the rapid analysis of ppb levels of silver in hot and cold water systems. A test range of 0-100 ppb, using a 100ml water sample, makes the kit ideal for all operating ranges.

Key Advantages for you:

  • Portability
  • Rapid analysis
  • Wide test range
  • Easy to use
  • Compliance and efficiency

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Insatech Silver (Free) Ionisation Test Kit

Water treatment systems that electrolytically generate copper and silver ions for the control of bacteria (including planktonic legionnella) in hot and cold water systems are becoming more and more common.

Silver concentration should be a minimum of 20ppb and higher with hard water feed. It is important that installers of ionisation systems take into consideration regulations on maximum allowable copper and silver levels (The Water Supply (Water Quality) Regulations), as well as local water quality.

Hardness and pH are two important factors that can affect the efficiency of the whole process. Copper ions are also required to complete the synergy.

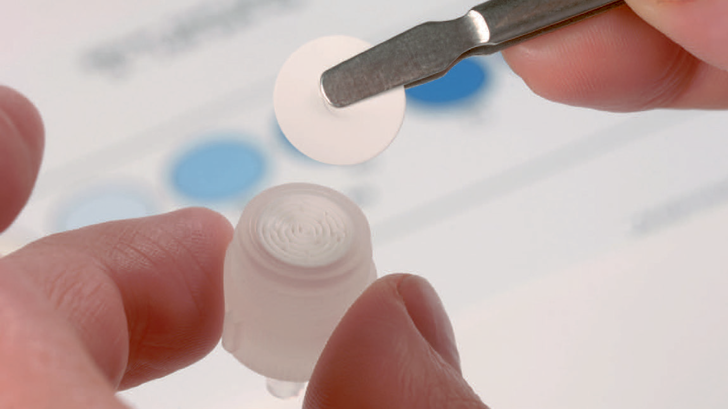

INSATECH Silver (Free) Ionisation Test (1)

Contents of the INS-K100109 Silver (Free) Ionisation Test Kit

The INS-K100109 Silver (Free) Ionisation Test Kit contains the following:

  • 1 x Marine Plastic Case and Foam
  • 1 x Silver Indicator Reagent (65ml) 100 Tests
  • 1 x Silver Buffer Reagent (40g) 100 Tests
  • 1 x 13mm 8μm Filter Papers 100 Tests
  • 1 x 13mm Filter Holder
  • 1 x 65ml Syringe
  • 1 x Tweezer
  • 1 x Colour Reference Card
  • 1 x Instruction Manual

Need our help? Contact us now.

Content of INS-P100590 Silver (Free) Ionisation Consumables Pack

INS-P100590 Silver (Free) Ionisation Consumables Pack contains the following:

  • 1 x Silver Indicator Reagent (65ml) 100 Tests
  • 1 x Silver Buffer Reagent (40g) 100 Tests
  • 1 x 13mm 8μm Filter Papers 100 Tests

Exactly what you need? Contact us here.

Ships On Water From Silver (Free) Ionisation Test

How to Use the Silver (Free) Ionisation Testing Solutions

The test can be completed in just a few minutes, ensuring accurate operating conditions and efficiency. This method is ideal for monthly monitoring of sentinel outlets and representative taps on a rotational basis.

Just follow these 3 steps:

  1. Add the reagents to 100ml of sample water
  2. Filter the mixture through a small membrane
  3. Compare the color of the membrane with the standard color chart

Need more information? Contact us here.
