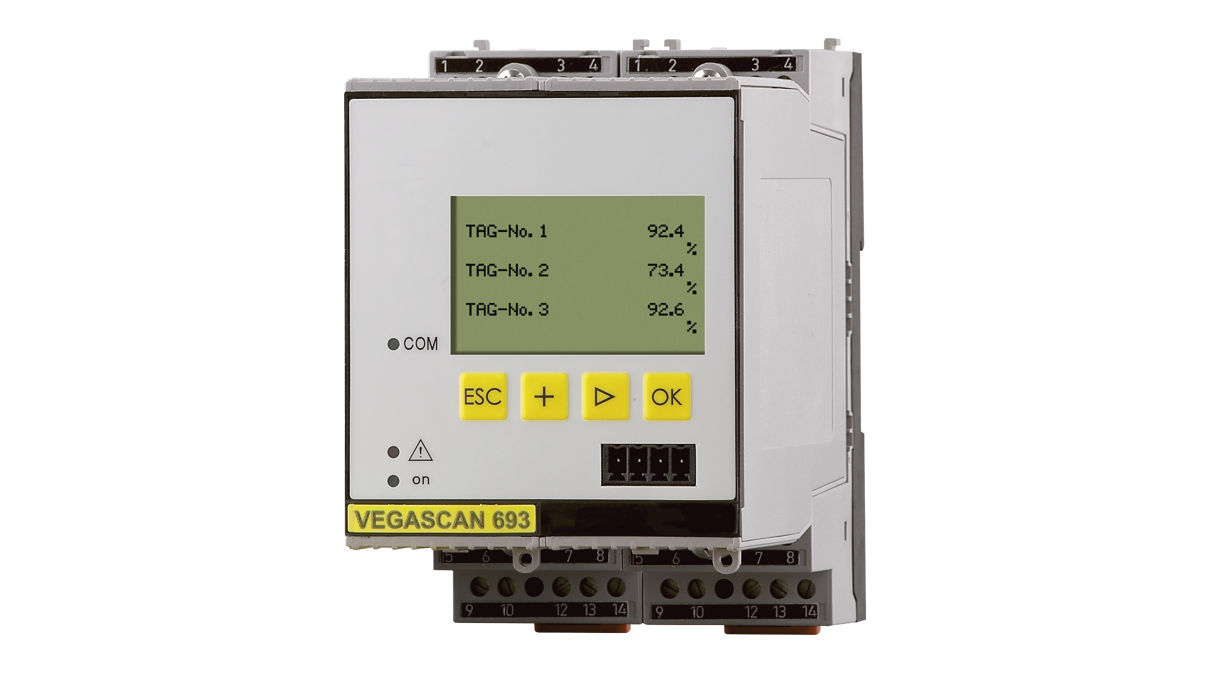

In a continuous measurement, the level from the container is detected by a sensor. The signal is passed to VEGASCAN 693, which performs the signal processing.
- Scans for 15 HART sensors.
- Modem or Ethernet interface.
- Adjustment via PACTware.
- Connection to the process level via Ethernet or HART.
- Mounting on DIN rail including base.
- WEB server and Email service.
Input / Output:
Sensor input: Up to 15 HART sensors in multidrop mode.
Relay output: 1 x error signal.
Density class: IP 30.
Supply voltage: 20… 250V AC, DC.
approvals:
Default: ATEX II (1) G D EEx ia IIC.
Option: ATEX II (1) G D [EEx ia] IIC + Ship Approval.
Connections:
Standard: RS 232 / Modem connection incl. data logger.
Option: Ethernet incl. data logger.
