VEGA pressure transmitter
VEGABAR 86 with dry ceramic measuring cell is a suspended pressure transmitter for level measurement.

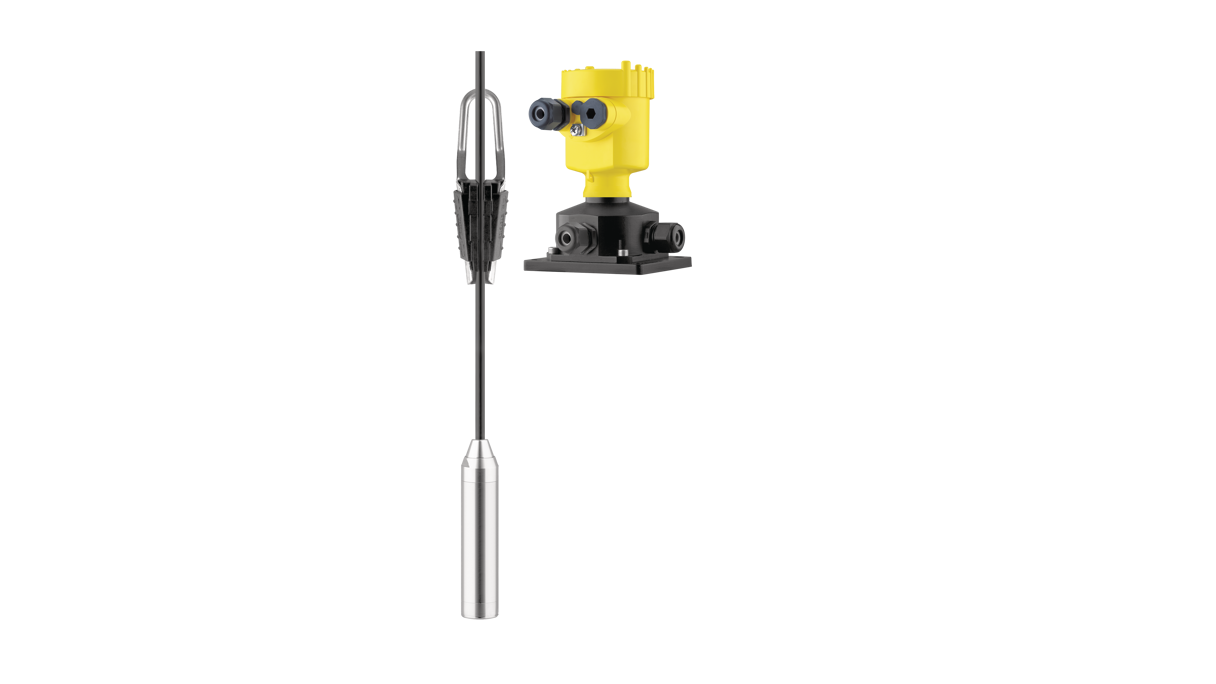

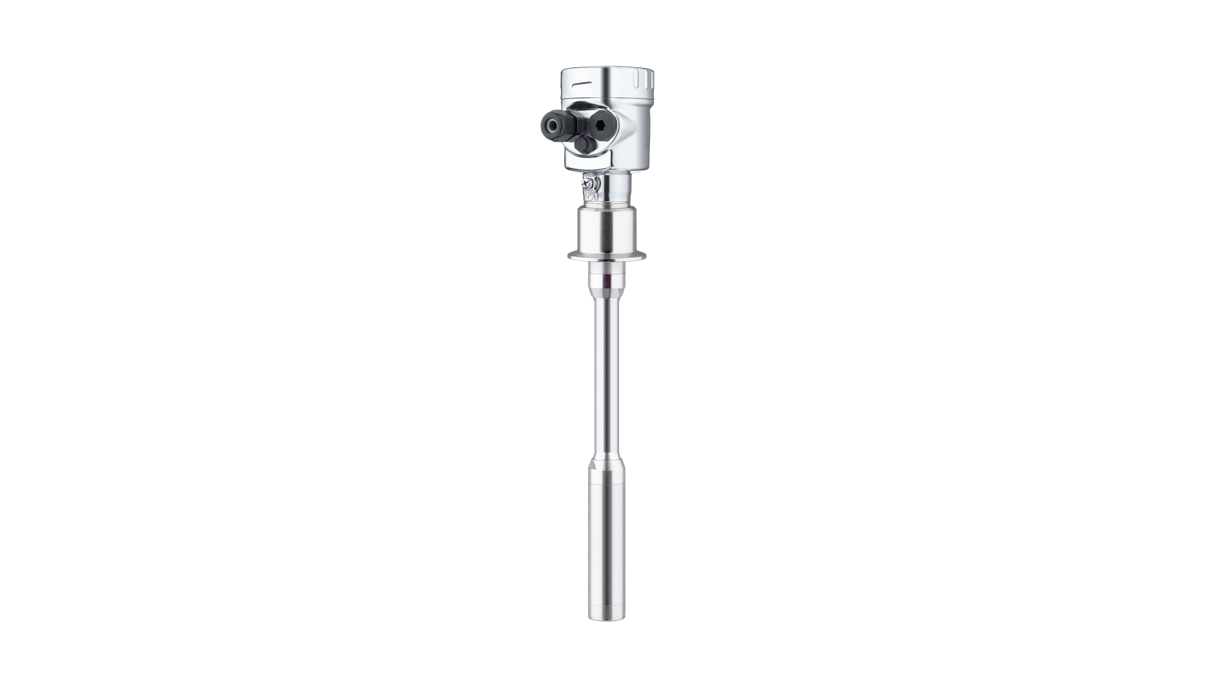

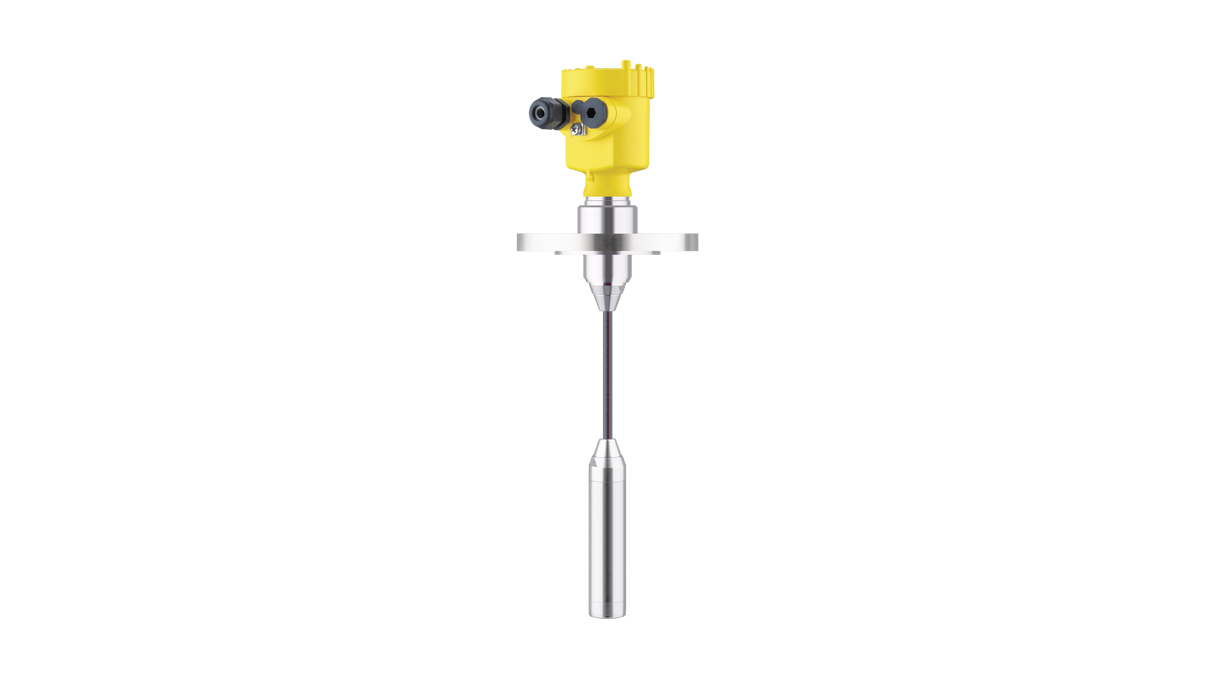

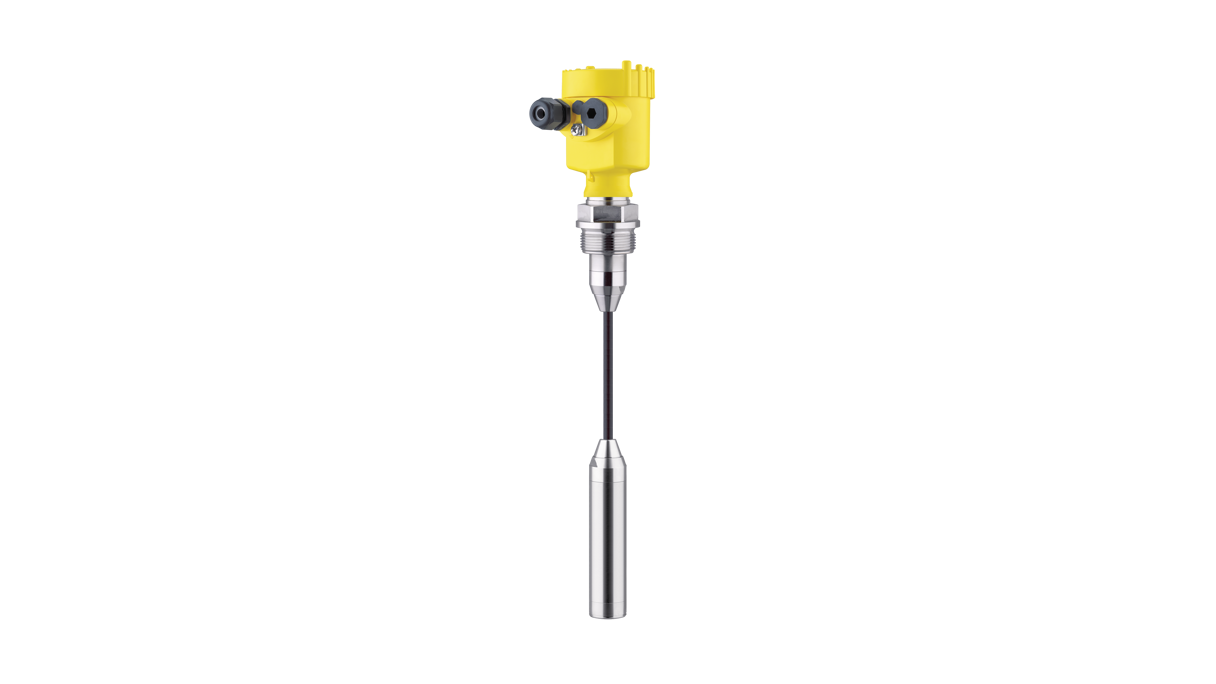

Available in different versions with stainless steel cable or pipe.
The measuring cell is the durable Certec® measuring cell which has been further developed to also have a built-in temperature sensor in the front of the measuring cell. This temperature sensor uses it to compensate for the temperature shock, but at the same time it has the advantage of getting the media temperature out via an output signal.

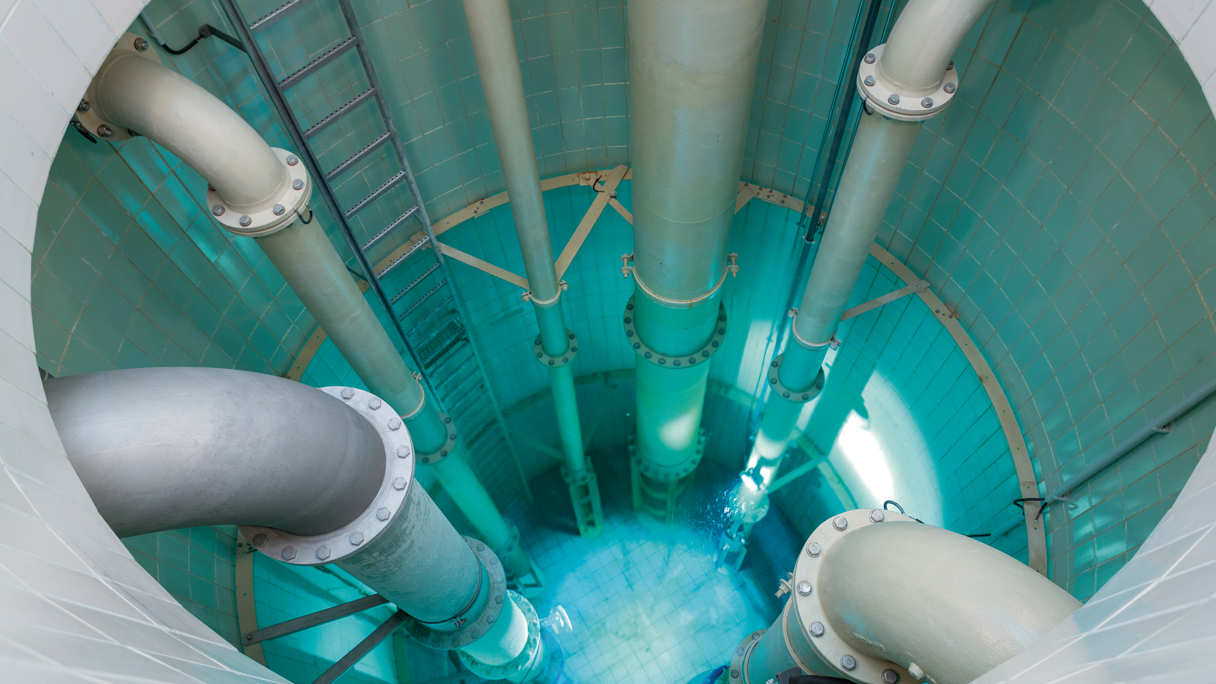

Used for water level / wastewater level applications in wells, basins or open tanks.
Measuring ranges from 0 to 25 bar.
Output signal two conductor 4 - 20 mA / HART.
Possibility for Foundation Fieldbus, Profibus PA and Modbus.
Process temperature between -20 ° C and 100 ° C.
Available with ATEX approval as well as ship approval.
Possibility of electronic differential pressure measurement.
With the new VEGABAR 80 series it is possible to make an electronic differential pressure measurement. The pressure transmitters in the VEGABAR 80 series can be ordered with a slave electronics which can be directly connected to a standard VEGABAR 80 series pressure transmitter, whereby the 2 pressure transmitters now act as a differential pressure transmitter.
