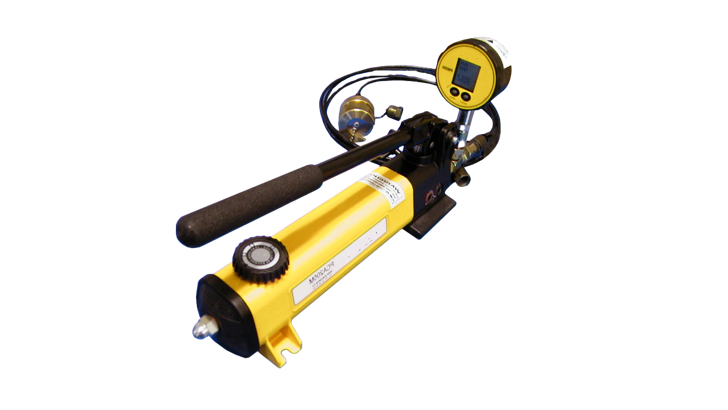

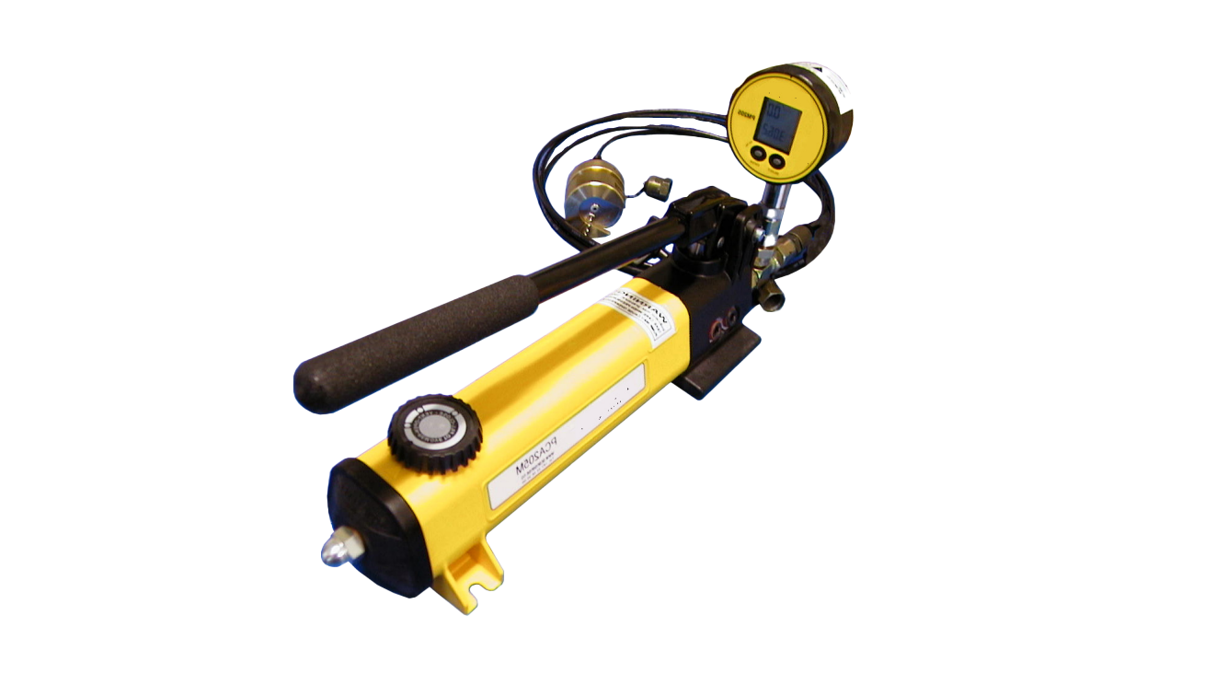

Pressure Calibrator PCA205M
The Pressure Calibrator PCA205M from IKM Instrutek is a digital pressure calibrator, which is microprocessor-controlled and offers high accuracy and versatility for digital pressure measurement and calibration.
Key advantages for you:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
MANO-Mode:
The PM205 system performs pressure measurements at a rapid rate of twice per second, providing real-time feedback. The top display showcases the current pressure reading, while the lower display presents the maximum or minimum pressure recorded since the last RESET.
PEAK-Mode:
In this mode, pressure is meticulously measured a staggering 5,000 times per second, with the results displayed twice per second. This high-frequency precision ensures that you get accurate and timely pressure information at your fingertips.
Experience the PM205's exceptional ZERO function, empowering you to establish a new zero reference value, effectively compensating for barometric pressure fluctuations.
This digital pressure meter boasts an internal battery, ensuring 1000 hours of uninterrupted operation in MANO-Mode, thanks to the AUTO SWITCHOFF feature that activates after 15 minutes of inactivity.
The Pressure Calibrator PCA205M from IKM has several benefits including, but not excluded to:
IKM Instrutek's calibrators are meticulously engineered to maintain exceptional accuracy and stability even in the harshest conditions.
These portable calibrators are trusted by offshore rig operators and leading ship owners across the globe.
Designed with precision and adaptability, this digital pressure calibrator is tailored for a range of industries, finding particular application in the marine sector, onboard ships, mobile offshore units, and various industrial fields.
The PCA205M model, furnished with the necessary certificates, emerges as an indispensable first-line instrument for pressure calibration and measurement tasks.
Remarkably lightweight at just 3.2 kg, it facilitates effortless on-site calibration.
Additionally, the unit comes complete with a 3 m high-pressure hose and a 40 mm test flange, ensuring comprehensive functionality.
A calibration is a comparison between a known measurement (a more accurate standard) and the measurement using your instrument.
A general rule of thumb is that the standard should be ten times more accurate than your own instrument. However, accuracy ratio of 3:1 may also be used in some cases. The objective of a calibration is simply to determine the accuracy of your measuring device.
Your instrument should be calibrated:
Hidden costs and risks associated with un-calibrated devices could be much higher than the cost of the calibration.
The multifunction calibrator logs calibration results electronically. Data can be downloaded via USB, ensuring traceability and easy reporting for audits or compliance documentation.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure range (R) | 0 - 300 bar |
||||||||||||||||||
| Accuracy RT (room temperature) | < 0,1 %FS |
||||||||||||||||||
| Total Error Band (0 to 50 °C) | < 0,2 % FS |
||||||||||||||||||
| Storage-/ Operating Temperature | -20 to 70 °C / 0 to 50 °C |
||||||||||||||||||
| Compensated Temperature Range | 0 to 50 °C |
||||||||||||||||||
| Power supply | 3.0V type CR2430 |
||||||||||||||||||
| Auto power off | 15 min. |
||||||||||||||||||
| Battery life |
|
||||||||||||||||||
| Standard process coupling | ¼” BSP MALE, Swivel |
||||||||||||||||||
| Dimensions | 458mm (l) x 98mm (w), 188mm (h) |
||||||||||||||||||
| Weight | 3,2 kg |
||||||||||||||||||
| Display | LCD |
||||||||||||||||||
| Selectable read out | bar, mbar/hPa, kPa, MPa, PSI, kp/cm2 |
||||||||||||||||||
| Peak function | Max. or Min. |
||||||||||||||||||
| Zero function | Yes |
||||||||||||||||||
| Readings per second | 5000 (PEAK mode) |
||||||||||||||||||
| Pressure test hose | 3m, M16x1,5mm, 700 ba |
||||||||||||||||||
| Protection class (CEI 529) | IP65 |
||||||||||||||||||
