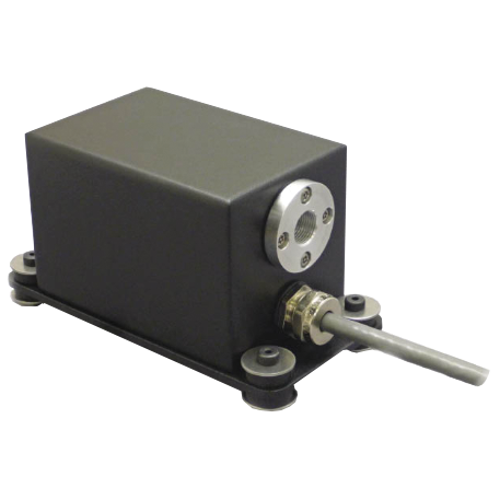

Metallic Waer Debris Sensor

The Parker Kittiwake Metallic Wear Debris Sensor goes beyond the scope of normal wear debris sensors and offers a high size resolution. With an unbeaten detection range, the sensor provides a debris count for both ferrous and non-ferrous metals.

Fully compliant with ASTM D7917

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Product Code: FG-K19567-KW

Oil analysis service should include Spectrometeric Analysis and ferrous density (PQ) results, indicating changes in the wear pattern, since an early warning of changes in the particle and wear debris levels will help to prevent all types of machinery failure.

The sensor can be mounted within almost any lubrication system, on any type of machine. The digital and analogue outputs, makes it easy to integrated the sensor into existing condition monitoring control systems.

Typical Applications for Metallic Wear Debris Sensor:

  • Wind Turbines
  • Mud Pumps
  • Large Gearboxes Bearings

Also available for hazardous areas: ATEX Metallic Wear Debris Sensor

Key Features

  • Easily integrated into existing condition monitoring and operating control systems with both digital and analogue outputs
  • Closed well IP67 appropriate for industrial applications
  • Metal cabinet provides strength and magnetic shielding
  • A big range of interface options.
  • Fully compatible with ASTM D7917 -14
  • Real time indication of condition
  • Most Sensitive MWDS
  • Instant indication
Ordering Information
Part Number

Description

FG-K19567-KW

Metallic Wear Debris Sensor

FG-K19944-KW

Metallic Wear Debris Sensor Evaluation Pack

(includes case, power supply & convertor box)

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Detection Range
  • >40 micron (0.04mm) [0.00157 inch] Ferrous
  • >135 micron (0.135 mm) [0.00531 inch] Non-Ferrous Metallic.

Output: Simultaneous quantification of metallic composition, size category and particle count.

Fluid Compatibility

Petroleum, synthetic oils and water/oil emulsions

Fluid environment

Max Fluid Pressure: <20 Bar (290 psi)

Fluid Temperature: -20°C to 85°C (-4°F to 185°F)

Flow Rate: 0.3 m/s to 1.9 m/s

Max Fluid Viscosity: 500 cST



Connections

1/2" BSPP female

Sensor Bore:10 mm ID x 120 mm L

Ambient Temperature

-20°C to 70°C (-4°F to 158°F)

Analogue Outputs
  • 2 x Opto isolated 4-20 mA
  • 1 x Alarm contacts (0.1A max)
  • RS232
  • RS485
  • Modbus RTU (over RS485)
  • CANopen
Input

+24 VDC +/- 10%, Calibration Push Button

Protecion rating

IP67

Weight:

3 kg

Specifications

  • Specification sheet - Metallic Wear Debris Sensor - Parker Kittiwake
    English | pdf
