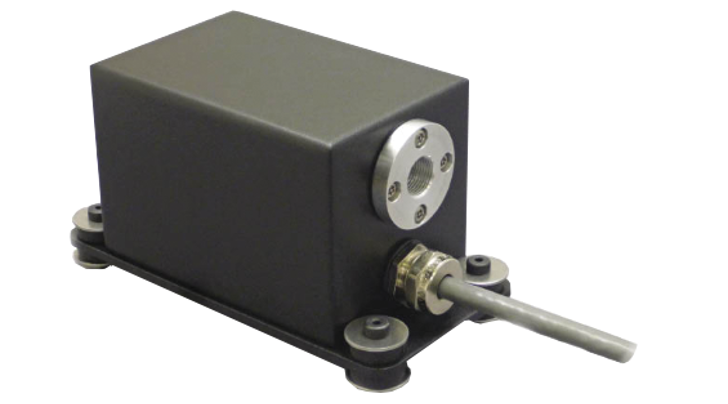

Early alert for bearing and gear wear debris at the earliest stage, also in hazardous areas. A world first, ATEX Zone 1 & 2 Approved Metallic Wear Debris Monitoring.
Fully compliant with ASTM D7917-14
For sales or commercial inquiries please contact us at marine@insatech.com.
Oil analysis service should include Spectrometeric Analysis and ferrous density (PQ) results, indicating changes in the wear pattern, since an early warning of changes in the particle and wear debris levels will help to prevent all types of failure.
The sensor can be mounted within almost any lubrication system, on any type of machine. The digital and analogue outputs, makes it easy to integrated the sensor into existing condition monitoring control systems.
| Ordering Information | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description |
||||||||||||||||||
| FG-K19400-EX | EX WEAR DEBRIS SENSOR Ex mb llB T5, -40°C < Ta < 65°C Gb |
||||||||||||||||||
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Detection Range |
Output: Simultaneous quantification of metallic composition, size category and particle count. |
||||||||||||||||||
| Fluid Compatibility | Petroleum, synthetic oils and water/oil emulsions |
||||||||||||||||||
| Fluid environment | Max Fluid Pressure: <20 Bar (290 psi) Fluid Temperature: --40 to 90°C (-40 to 194°F) Flow Rate: 0.28 m/s (1.3 Litres/minute) to 1.9 m/s (9 Litres/minute) Max Fluid Viscosity: 500 cST
|
||||||||||||||||||
| Connections | 1/2" NPT x 17 mm deep Female threads Sensor Bore:10 mm ID x 120 mm L |
||||||||||||||||||
| Ambient Operating Temperature | -40°C to 65°C |
||||||||||||||||||
| Communications |
|
||||||||||||||||||
| Inputs | 20 to 28 Volts DC |
||||||||||||||||||
| Options |
|
||||||||||||||||||
| Protecion rating | IP66 |
||||||||||||||||||
| Approvals | ATEX Marking: II 2 G, Ex mb IIB T5, Ta = -40ºC to + 65ºC IECEx Marking: Ex mb IIB T5, -40ºC < Ta < 65ºC Gb |
||||||||||||||||||
