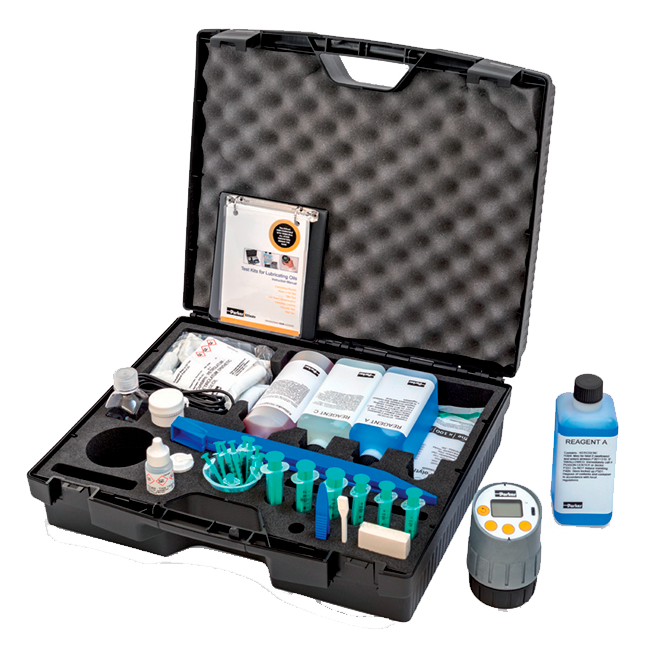

Parker Combined Water BN Cell

DIGI+ combined kit FG-K6-110-KW

The Parker FG-K6-110-KW is a portable oil analysis solution for comprehensive on-site condition monitoring. It measures water content, BN, salt contamination, insolubles, and viscosity - providing fast, reliable diagnostics to detect issues early and optimise maintenance in marine applications.

Key Features for you:

  • Simple to Use
  • Econ salt test, Econ insolubles test and Econ viscostick included
  • Prevent corrosion
  • Fully portable

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

Versatile, reliable, and time-efficient

Is that what you are looking for? Look no further!

DIGI+ Cell and Oil Test Kits from Parker Kittiwake is ideal on board of your vessel as it is compact, versatile, time-efficient, and reliable equipment for routine spot tests of lubricant oils.

With the DIGI+ Cell you will be able to test for both Water in Oil and Base Number of your lube oils. These kits provide quick diagnostic insights, ensuring your equipment is running efficiently.

Moreover, you do not need to be patient or have lots of waste time because the tests are typically done within 2 minutes once you have the sample.

ECON Salt Water Contamination Test Kit (FG-K1-005-KW)

With the ECON Salt Water Contamination Test Kit from Parker you can check the presence of salt in either lube oil, fuel, or hydraulic systems. This makes it easier for you to eliminate rapid corrosion and can be used to give rapid indication of any presence of salt despite evaporation of all water.

Furthermore, this salt water contamination test is fast and very easy to use by crew members on board of your vessel.

The ECON Salt Water Contamination Test Kit is included in the DIGI+ combined kit (FG-K6-110-KW+).

The FG-K1-005-KW contains:

1 x Reagent H Kittiwake (AS-K10110-KW)
1 x Salt test pads labelled (AS-K14211-KW)
1 x Overpack label, BI-K30378 (AS-K27086-KW)
1 x Syringe disposable 5 mL (BI-K10045)
1 x Tube test polypropylene TC051 (BI-K10053)
4 x Pipette disposable 1 mL (BI-K10056)
1 White polytop closure (BI-K10059)
1 x Module box large (CA-K21799)
1 x Inst. ECON test kits new (MA-K16803-KW)

The Right Solution for You – Get in Touch!

ECPN Salt Test Parker Kittiwake 1024X16x9
ECON Insolubles Test Kit FG K1 006 KW Parker 1024 16X9

ECON Kit Insolubles Test Kit (FG-K1-006-KW)

The FG-K1-006-KW, also known as the ECON Kiut Insolubles Test Kit, is designed to measure insolubles in lubricating oil, which are a buildup of combustion debris and oxidation products. Monitoring insolubles is crucial for maintaining engine health, as high levels can lead to lacquer formation on hot surfaces, piston ring sticking, and wear on cylinder liners and bearing surfaces. This test kit offers two test modes—% insolubles w/w by IP316 or % insolubles by the Mobil Soot Index—ensuring highly accurate results. Its straightforward, quick testing process delivers actionable insights to help prevent engine damage by detecting harmful substances like fuel ash, carbon, and oxidized oil products.

Specifications:

  • Range: Good/ Poor
  • Test Time: 1 hour (unattended)
  • Reagent: Non hazadous

We’re Here to Help – Reach Out Today!

ECON Viscostick (FG-K3-020-KW)

The ECON Viscostick from Parker gives you a simple go/no go result. Thus, it is easy to use and will usually detect 5-10% distillate fuel dilution of an SAE 30-40 engine oil. Moreover, it detects increases in viscosity because of oil contamination.

The application of the Viscostick includes:

  • Lubricating Oils
  • Viscous Hydraulics.

The Viscostic is included in various DIGI Plus Test Kits including; FG-K6-102-KW+, FG-K6-103-KW+, FG-K6-107-KW+, FG-K6-108-KW+, and FG-K6-110-KW+.

Order Directly from Us – Get in Touch

Viscostic Parker Kittiwake 1024X16x9

Improve your cost of operation

By testing your lubricant oil frequently, you can monitor and get rapid diagnostic insights of the quality of the oil and ensure that key properties are always optimal for the intended use.

Maintaining the BN based on measurements, can benefit your cost of operation by saving money on top-ups compared to the alternative, where topping up is done ‘blindly’ based only on a recommended schedule.

Furthermore, detection of a presence or increase of water in your lubricant oil could indicate that the lube oil piping needs some attention in one way or another.

Instructions for on-site and on-board test method

The DIGI Cell from Parker is ideal for oil condition monitoring, and is know for making testing easier and extremely accurate even when used in challenging conditions.

Some of the DIGI Cell's new features are:

  • Light weight construction
  • Improved menu structure
  • Improved back-lit screen display
  • Storage for up to 10 different oils
  • Store up to 50 individual test results
  • Download test results to PC over USB

See more instructions in the video here.

Learn more about the Digi cell plus

Product Code Information
Product Code

Function
FG-K6-101-KW+

DIGI+ water:

Water in oil test kit
FG-K6-102-KW+

DIGI+ water / viscosity kit:

Water in oil + Viscostcik
FG-K6-103-KW+

DIGI+ basic kit:

Water in oil + Salt test + Insolubles test + Viscostick
FG-K6-004-KW+

DIGI+ TBN test kit:

TBN oil test kit
FG-K6-107-KW+

DIGI+ industrial kit:

Combined water in oil/BN cell + Insolubles test + Viscostick
FG-K6-108-KW+

DIGI+ field kit:

Combined water in oil/BN cell + Insolubles test + Viscostick + AN test
FG-K6-110-KW+

DIGI+ combined kit:

Combined water in oil/BN cell + salt test + Insolubles test + Viscostick
FG-K6-971-KW+

DIGI+ clean oil kit:

Water in oil + Viscotube + AN test

Designed for maritime use


The DIGI+ Cell is built in a rugged and marine environment friendly design and are straight forward and very easy to use.

They come delivered with all necessary items to perform the tests, incl. reagents, syringes and sample cup.

The built-in battery will last for 5 years or 500 charge cycles, which is enough to cover the entire expected lifetime of the cell.

Go to Digi Cell Plus product page

Digi+ features

EasySHIP

All DIGI+ Test Kits are marked with the EasySHIP logo, which indicates that a non-hazardous version is available for shipping the water in oil cell.

The EasySHIP logo looks like this:



Reagent Packs

Most DIGI Plus Test Kits use chemical reagents to test the oil. As you use the test kits these will, thus, be consumed and need replacement. You can order these replacement reagents with short notice and get it delivered worldwide from us.

Moreover, the reagents are packed in accordance with IATA/IMDG/IRD Air/Marine/Road Transportation regulations.

These Reagent Packs include

  • Total Base Number(TBN) Reagent Pack (FG-K2-002-KW)
  • Water in Oil Reagent Pack( FG-K2-101-KW)
  • Insolubles Reagent Pack (FG-K2-003-KW)
  • Water/ TBN Insolubles Reagent Pack (FG-K2-404-KW).

Furthermore, you can also see all the additional accessories here.

Multi-Parameter Oil Test Kits

The DIGI + Test Kits contains all the necessary equipment and consumable for everything you need, when you monitor you oil condition.

When you get the test kit it is ready to use and is delivered in a heavy duty marine case with a foam set. This makes it easy for you or your crew to use on-board.

  • The multi-parameter oil test kits gives you:
  • Fast and accurate results for multiple oil parameters
  • Easy to use, portable kits
  • Possibility to make informed on-site maintenance decisions
  • Ability to act before any critical failure
  • Vigorous and trustable for use in harsh or remote settings.



How DIGI Plus Test Kits Ensure Accurate Readings

DIGI Plus Test Kits are designed to provide you precise and reliable readings for marine applications.

These kits utilize advanced technology to measure critical parameters such as water content and Total Base Number (TBN) in lubricants.

With easy-to-follow procedures and rapid testing capabilities, they deliver accurate results in minutes.

The robust design and high-quality components ensure consistent performance, helping you maintain optimal engine conditions and prevent potential issues.

By incorporating DIGI Plus Oil Test Kits into your routine maintenance, you can confidently monitor oil quality and enhance the longevity of their equipment.

Exactly what you need? Contact us now!

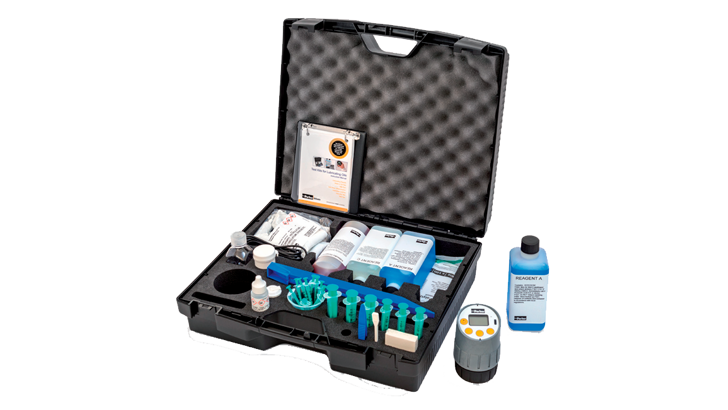

Parker Combined Water BN Cell 16X9
DIGI Plus Cell Cleaning Parker 1024 16X9

Maintenance Tips for Using Parker Kittiwake Test Kits

To ensure the longevity and accuracy of your DIGI+ Oil Test Kits, follow these essential maintenance tips.

The DIGI+ Cell, equipped with a color display, is designed to guide users through important test steps, including cell cleaning. After each oil calibration and test, cleaning is necessary. Follow these steps to ensure safety:

  1. Dispose of the contents with care.
  2. Thoroughly clean the DIGI+ body upper part and the sample cup (including the agitator for H2O testing). Make sure no reagent residue remains on the O-ring and threaded surfaces.
  3. Use a lint-free cloth to clean the exterior and keypad. If needed, use a mild solvent like isopropyl alcohol. Avoid using water, water-based cleaning products, or other solvents, as they may cause damage.

This cell is intended for lifetime use without the need for calibration or service - expected lifetime is 25,000 tests of 5 years whichever is sooner.

Additionally, there are no user-serviceable parts inside. For service, contact us and we will help you!
DIGI+ is built with precision components to ensure long-term measurement accuracy, eliminating the need for periodic recalibration. However, if quality systems or risk assessments necessitate accuracy verification, DIGI+ can be sent to a service center for accuracy checks and recalibration if necessary.

Need more information? Contact us now!

FAQ

Get in Touch with Our Experts

Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

Test Af Websitebillede FREJ ANAN HNI
For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com



Contact us now

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Contact us here

Parker logo



Why We Offer Parker Products

At Insatech, we choose Parker Hannifin because their products set the industry standard for innovation, reliability, and performance. Parker’s advanced technologies and durable components ensure long-term efficiency and safety in demanding marine and industrial applications. By integrating Parker’s instrumentation, valves, and system solutions, we deliver trusted, high-quality results that help our customers operate smarter and more sustainably.

Authorized Parker Hannifin Distributor



At Insatech, we deliver more than high-quality Parker Hannifin products - we provide complete Parker solutions. Combining engineering expertise, global support, and proven technology, our turnkey systems are built to meet real operational challenges. With tailored services and expert knowledge, we ensure efficiency, compliance, and long-term performance across marine, industrial, and process applications.

Get help and support

Two Insatech employees at a meeting
Specifications
Water in oil

0.02-1.00%, 0.1-10%, 0.1-20%, 100-3,000 ppm, 200-10,000 ppm
BN

5-150 BN
Test time

 3 minutes
Memory

10 x oil types / 50 SPID’s (Sample Point Identification)
Battery life

In use, 5 hours continuous / 50 tests whichever occurs first.
Lifetime 500 charge cycles or 3 years (typical - depending on usage)

Brochure & Guides

  • Catalog - Oil Test Solutions - Parker Kittiwake
    English | pdf
  • Quick Test Guide - Digi Cell Plus (DIGI+) - Parker Kittiwake
    English | pdf
  • Manual - DIGI Plus Test Cell - Parker Kittiwake
    English | pdf
  • DIGI+ Consumables, Spares & Contacts Information
    English | pdf
