Installation place: Bulkhead mounted in engine room or equivalent non-hazardous area.
Dimensions: 600 x 760 x 220 (Height x Width x Depth) Cable glands not included.
Weight: 44 Kg
Colour code: RAL 7032

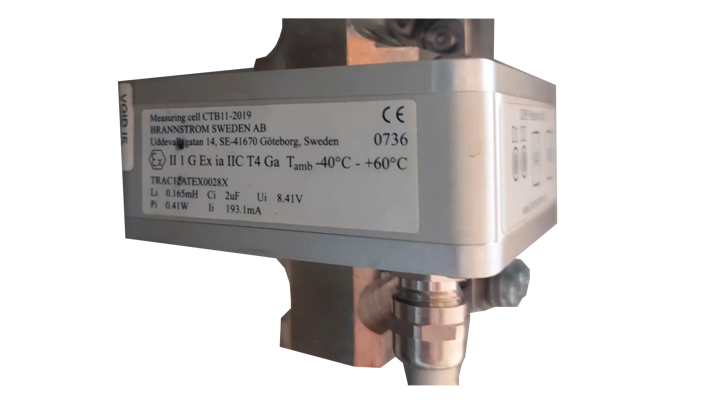

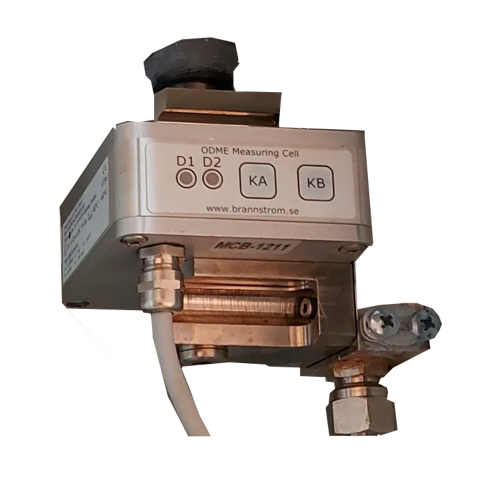

Physical arrangement: The Converting unit is built into an enamel lacquer coated steel cabinet, divided in two sections. The left-hand compartment contains electrical components for external equipment, e.g. relays, transformers, Zener barriers and connection terminals. The right hand compartment contains the tank and pump for the measuring cell cleaning solution, the solenoid valves for the pneumatically manoeuvred analysing valve and the pressure switch.
Electrical supply:
- The standard model is designed for electrically powered pump motor and has the following supply specification: 3 phase 440/380VAC +- 10% 60/50Hz 1200VA. The power supply should be equipped with a main switch or a detachable power supply connector and a fuse size of 3 x 10 A.
- Units equipped to control pneumatically or hydraulically powered pump motors. Available for electric power supplies of: 1 phase 220VAC +- 10% 50/60Hz 200VA or 1 phase 440/380VAC +- 10% 60/50Hz 200VA. The power supply should be equipped with a main switch or a detachable power supply connector and a fuse size of 6 A.
Main switch: Optionally the Converting unit can be equipped with main switch and designed for fuse sizes of 50A.
Heater: Optionally the Converting unit can be equipped with a heater output. The purpose with the heater is to avoid freezing in the sample pump.
Safety approvals: The Zener barrier module: II (1) [Eex ia] IIC SP03ATEX3617X Tamb: -20C to +60C Um: 250VAC/VDC
Air supply: Compressed air. 1m3/h, 4 - 6 bar clean and dry control air.
Communication: Computer unit communication. 2 wire 0.5mm2 pair twisted shielded cable. Two blue marked 2 wire 0.5mm2 shielded cables for signals from the analysing unit. Maximum length is 80 m. One 6 wire 0.5mm2 blue marked shielded cable for signals from the analysing unit. Maximum length is 80 m. Pneumatic signal for controlling the analysing unit valve. Pipe dimension 6/4mm.
Inputs: Two flow meter, two wire 4 – 20 mA current signal inputs. Pressure switch for monitoring of supplied air pressure, and in certain configurations, for monitoring of the overboard valve position. On demand the CLEANTRACK 1000 is equipped with a temperature sensor that monitors the temperature of the sample pump shaft seal. Be aware of cable length limitations
Outputs: A sample feed pump output: 1) The Standard unit is designed to supply an electrical pump motor and has a 3-phase sample feed pump motor supply output. 2) The optional unit designed to operate with pneumatically or hydraulically powered sample feed pump motor has the following outputs: a) Sample feed motor forward running output, intended to supply a pneumatic or hydraulic solenoid valve, 24VAC 0.5A. b) Sample feed pump motor backward running output, intended to supply a pneumatic or hydraulic solenoid valve, 24VAC 0.5A. 2 relay outputs optionally intended to supply 24VAC 0.5A solenoid sample point valves. See configuration information. Optionally the solenoid valves can be included in the delivery. Cleaning water valve control output. 24VAC 0.5A. Cleaning solution output. |
