Insatech Marine can supply replacement spare parts for all existing filters. Our spare parts are quality tested and in compliance with a high quality standard. We can offer the entire product range which could be requested by an OEM or end-user. Regardless if its an automatic fitler, a duplex or a simplex filter you can find these kinds of filter an almost all kinds of vessels.
58RESULTATER
NULSTIL
Tanktop Mounted Return Line Filters

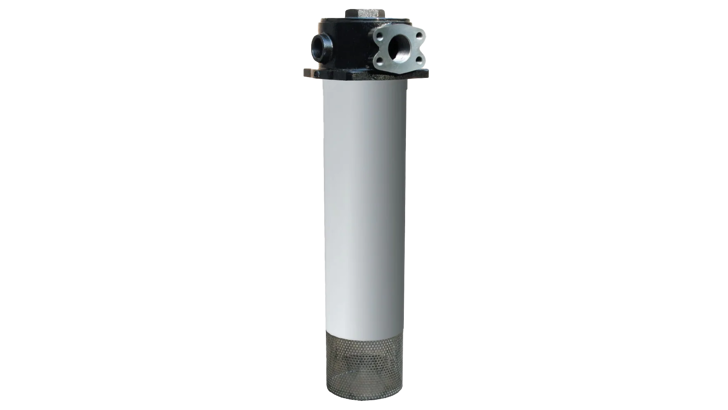

Parker STF Series
These return line filters, are the perfect solution for marine applications where the use of aluminum is restricted. Designed to handle a maximum flow of 500 l/min and a maximum pressure of 10 bar, making them an ideal choice for hydraulic system designers and specifiers seeking reliable filtration options.
Return Line Filters with Air Breather
Parker TPR Series
The Tanktopper Series I, II & III, are tanktop mounted return line filters with integrated air breather. Maximum pressure 10 bar. Maximum flow 650 l/min. An all-in-one, easy-to-mount filter range for more compact tank design.
Low Pressure In-line Filters

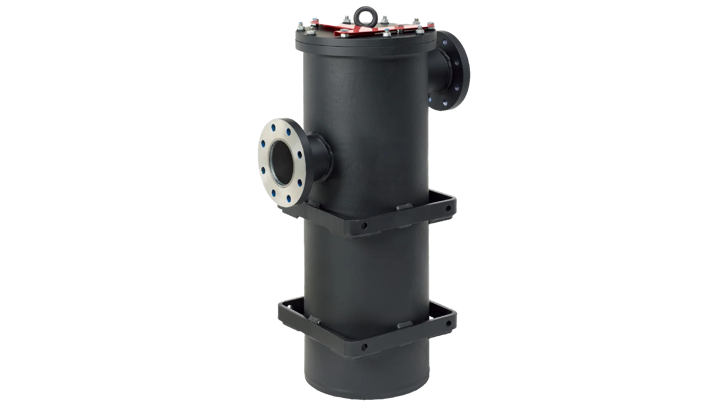

Parker SF1040 Series
This series of multi-purpose filters for gas and high flow fluid systems includes SF1049, SFH1040 and SFR1040. Flow rates of up to 1400 l/min and pressures of up to 10 bars. The house is in strong welded steel construction and has connections of either DN80 or DN100. Vertical and horizontal mounted versions.
Low Pressure Vertical Duplex Filters
Parker DF2070 Series
The DF2070 series from Parker is low pressure, high flow duplex filters designed for use with heavy fuel oil and lubrication system applications. They feature a compact, low-depth duplex construction that is suitable for vertical mounting. Flow rate up to 1800 l/min and maxiumum pressure of 10 bar.
Low Pressure horizontal Duplex Filters

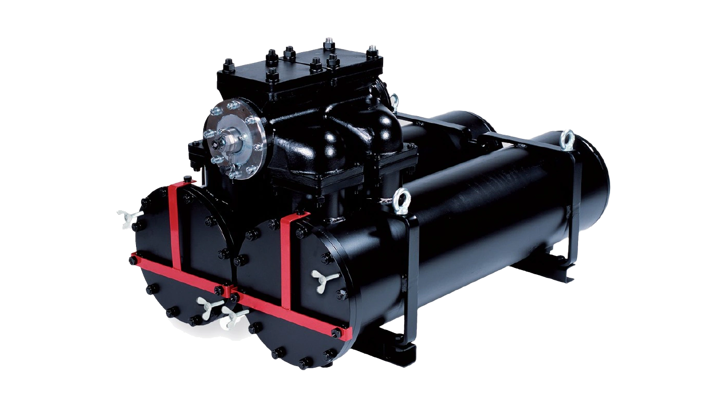

Parker DFH2060 Series
The DFH2060 series from Parker is a low pressure, high flow duplex filters designed for use in lubrication system applications. Maximum performance - Minimum height - Horizontal mounting. The maximum flow rate is up to 2200 l/min, and the maximum pressure is 10 bar.
Tanktop Mounted return Line Filters

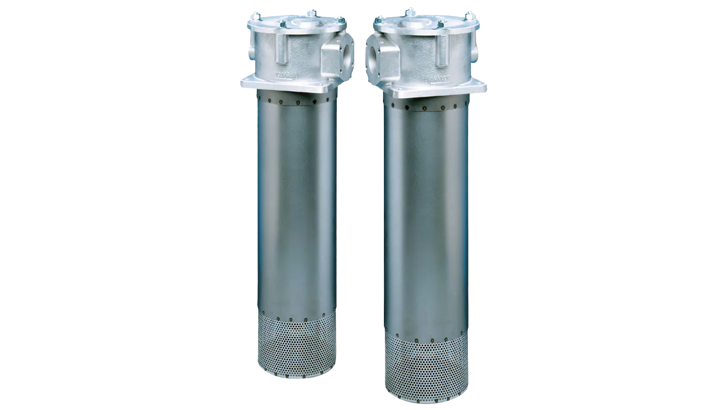

Parker BGT Series
The BGT series from Parker are toptank mounted return line filters, designed to provide high flow performance. Features pre-filtration through a magnetic column and a full flow bypass with low hysteresis. High flow capacity of up to 2400 l/min and can handle a maximum working pressure of 10 bar.
Medium Pressure In-line Filters

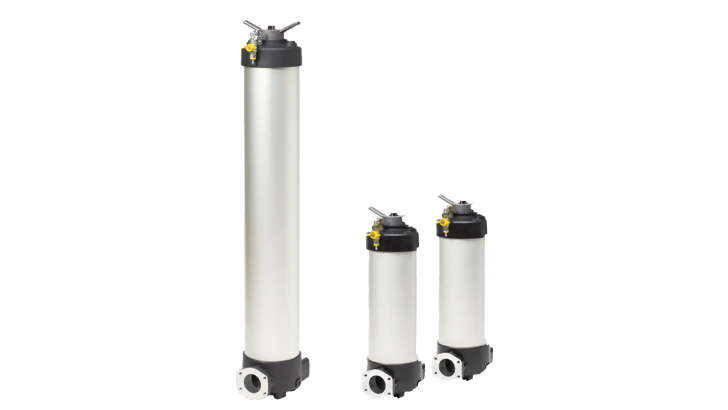

Parker ECO130 Series
The ECO130 Series from Parker, are designed for use in hydraulic or lubrication systems. The series includes a single filter, a dual unit, a parrallel unit and a filter system, with a ability to connect multiple filters together in a "duplex" format.
Flow max up to 1400 l/min.
In-line Duplex Filters
Parker DF65 Series
The DF65 low pressure in-line duplex filter from Parker, has a design that allows installation of the filter in almost any position. For applications with limited space. It is suitable for a maximum flow of 800 l/min and a maximum pressure of 25 bar.
No results found
Filtration
System Health Prevention
In these challenging markets it is key to use a proactive approach to maintenance to stay ahead of the competition. With issues such as extreme conditions, inspection challenges and workforce safety, on-line sensor and on-site testing technology provide an assured method of protecting assets and profits.
Selecting the correct filtration solution is vital to preserving the desired performance of your system. Preventing component deterioration or even failure depends on the quality of your filtration solution. Insatech is your single-source supplier to manage your total system health.
Your Single Source for Quality Filtration
We supply replacement spare parts for all existing filters. Our spare parts are quality tested and in compliance with a high-quality standard. We can provide any filter you need for example automatic, duplex or simplex for most vessels.
Our close filtration partners are the leading filtration suppliers worldwide. They have a powerful reputation, unparalleled breadth of products, and worldclass customer service. However, their greatest distinguishing benefits can be found in its Value Proposition. We believe that it takes more than our great products, competitive prices, and on-time delivery to satisfy customer demands. It takes a commitment to provide exceptional value.
