EAPF1

EAPF Ecological ATEX Pressure Filter Parker Square

EAPF Series

ATEX high pressure stainless steel filters that has been specifically designed to deliver superior hydraulic system filtration. The EAPF filters is suitable for use in the Marine, with a capacity of up to 120 l/min at a working pressure of 690 bar, it meets the stringent demands of the market.

The advantages for you include:

Duplex stainless steel housing
Twin Seal technology for maximum protection and seal performance
Optional versions for back-flush systems
ATEX certified filter housing and indicators

For sales or commercial inquiries please contact us at marine@insatech.com.

Keep Your Marine Operations Safe and Productive with Parker EAPF iprotect®

Safety is a constant concern in the marine sector, and the Parker EAPF iprotect® is the ultimate solution. Featuring patented filtration technology, this product is designed to provide top-quality filtration of hydraulic systems, offering a range of new possibilities to reduce costs and improve productivity and profitability.

The EAPF iprotect® is engineered to meet the stringent demands of the Marine, Oil & Gas, and process equipment markets, with a range that covers up to 120 l/min at 690 bar working pressure. The filter element design is patented and innovative, providing a high level of embedded safety. This product has resulted in a service-friendly product that avoids the use of pirate-type spare parts with unknown quality of filtration.

The iprotect® product is environmentally friendly, with a re-usable element core that can be combined with a bypass valve, reducing environmental impact by over 50%. The EAPF applies twin seal technology, ensuring that seawater and contamination cannot ingress the threaded connection between the filter head and bowl. The bowl also features a special hole pattern for decompression of the threaded area, ensuring maximum sealing performance of the main seal.

This modular EAPF range provides effective integration of high-pressure filter solutions in hydraulic systems, with the flexibility of various connection types (NPT, BSP, Autoclave) and optional versions with integrated check valves to handle system back flushing. With the Parker EAPF iprotect®, safety is a process that never stops.

Exactly what you need? Contact us here

Typical applications

Drilling equipment
Lifting equipment
Sub sea systems
Deck equipment
Flushing rigs
Chemical injection

Get more information here

Advantages of the EAPF Series

The patented design of the filter element ensures high-quality filtration, directly affecting the level of oil cleanliness. This is achieved by excluding the use of pirate-type aftermarket filters with unknown filtration quality, thereby guaranteeing filtration efficacy. This embedded safety feature has a direct and positive impact on equipment safety, productivity, and profitability.

Thus, the EAPF Series provides you with the following features:

Duplex stainless steel housing
690 bar rated filter housing
Twin Seal concept for maximum protection and seal performance
iprotect® patented filter element
Wide range of fibreglass and stainless steel mesh filter media
Optional versions for back-flush systems
ATEX certified filter housing and indicators
Coated filter housing to prevent grating of threaded connections

Degree of filtration

The filter is avalable with differens elements:

Standard iprotect® Glassfibre element (code QI)
iprotect® element with reverse flow valve (code QIR)
Standard iprotect® High Strength element (code QIH)
iprotect® element with Customer Branding (on request)

Choose between following micron rating:

2, 5, 10 or 20

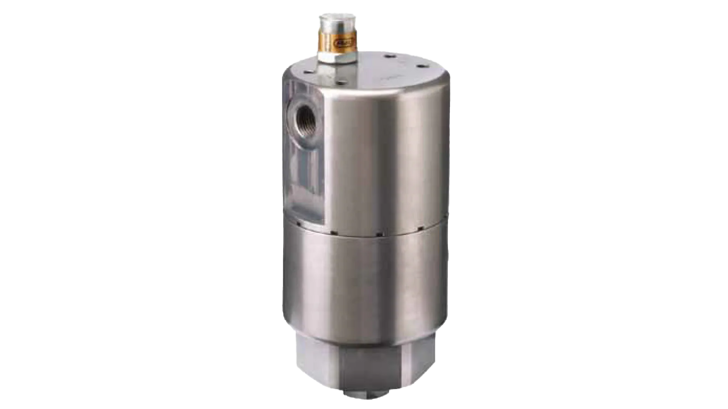

EAPF Ecological ATEX Pressure Filter Parker 16 9

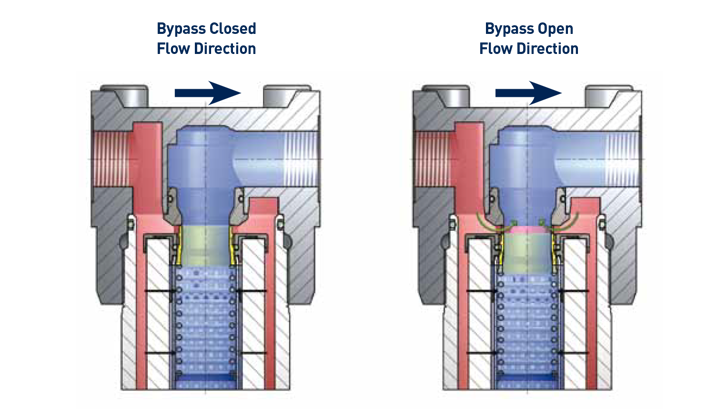

The bypass valve technology

The Parker EAPF iprotect® offers bypass settings up to 7 bar or complete blockage, made possible by its patented and durable filter elements. The system operates by measuring the differential pressure across the filter element, ensuring that only a portion of the main flow passes through the bypass valve during bypass mode.

Need more information? Contact us here

Which benefits does the EAPF Series have?

The EAPF Series have various features, advantages, and benefits that you can use:

Back - Flush Systems with the EAPF1 filter

Parker offers personalized filtration solutions to meet specific needs. If a system requires back-flushing, a customized solution can be designed and implemented by Parker Filtration. In addition, Parker Filtration can integrate condition monitoring, instrumentation, and fluid control valve technology into the filter to provide a comprehensive solution. Contact us to find a solution that fits your need.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Pressure ratings:	Maximum allowable operating pressure: 690 bar Filter housing pressure pulse fatigue tested 10^6 pulses 0-690 bar
Connections:	Inlet and outlet connections are threaded internally 1/2’’ and 3/4’’ NPT Autoclave type connection 1/2’’ and 3/4’’ BSP
Filter housing:	Head material Duplex Stainless Steel Bowl material Duplex Stainless Steel
Seal material:	Nitrile of Fluoroelastomer
Operating temperature range:	-40°C to +100°C for seal matieral Nitrile -20 to +120°C for seal material Fluoroelastomer
Bypass valve & indicator settings:	The table following gives the bypass valve and corresponding indicator setting. Bypass: 3.5 bar - Indicator: 2.5 bar Bypass: 5.0 bar - Indicator: 4.0 bar Bypass: 7.0 bar - Indicator: 5.0 bar Bypass: Blocked - Indicator: 7.0 bar
Filter element:	Degree of filtration: Determined by multipass test in accordance to ISO16889
Microglass III (QI)	Supported with epoxy coated metal wire mesh, end cap material reinforced composite and reusable metal inner core. Collapse pressure 25 bar (ISO 2941).
Flow fatigue characteristics (QIR)	Filter media is supported so that the optimal fatigue life is achieved (ISO 3724)
High collapse elements (QIH)	To be used when bypass blocked option is selected Collapse pressure 210 bar (ISO 2941)
Indicator options:	Indicating differential pressure: 2.5 +/- 0.3 bar 5.0 +/- 0.3 bar 7.0 +/- 0.3 bar Visual M3 Electrical T1 Electronic F1 (PNP) Electronic F2 (NPN) Atex versions are available on request
Weights (kg):	EPF Size 1 length 1: 13 EPF Size 1 length 2: 17
