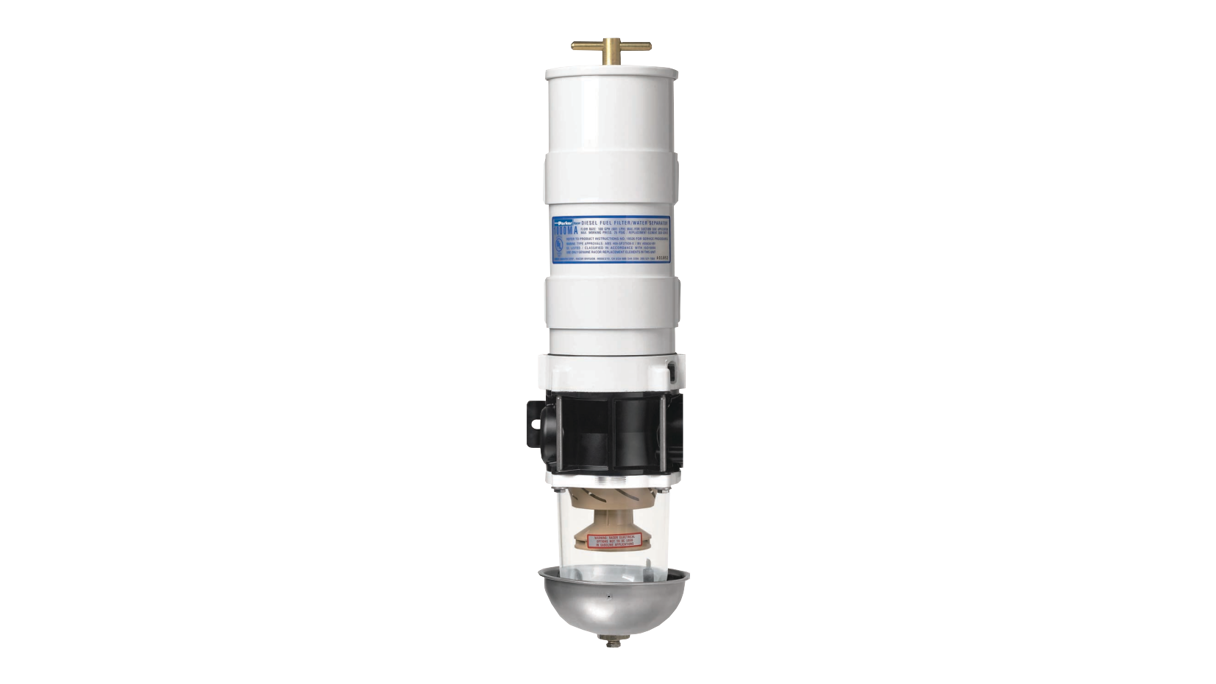

Racor's Turbine Series is top-rated marine fuel filters. UL-approved, three-stage filtration removes water and particulates, ensuring critical engine protection.
The Turbines Series benefits you with:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at marine@insatech.com.
With the Turbine Series you will have many benefits, below we have listed some of these:

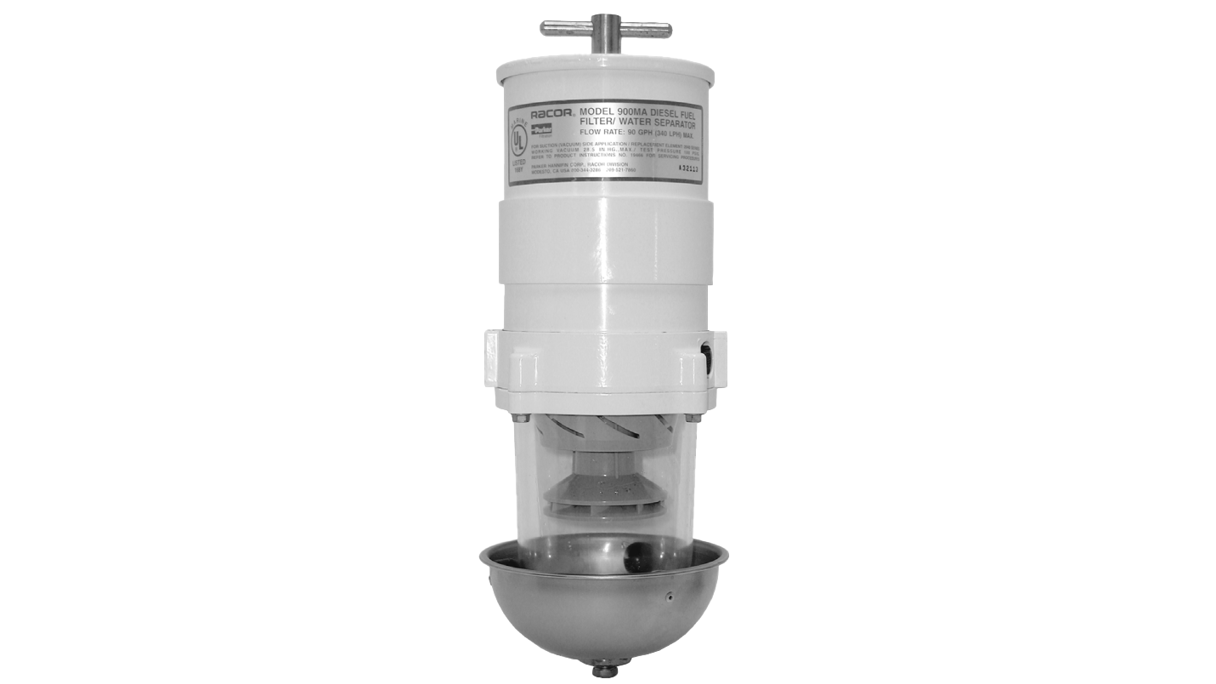

The Turbine Series of the Racor Marine Fuel Filter Water Separators, featuring the Racor diesel filter, stands as the premier choice for fuel filtration and water separation in the marine industry. This UL-approved assembly boasts a three-stage filtration mechanism, ensuring efficient removal of water and particulates from fuel. It offers unparalleled protection for diesel engine components in marine environments, where reliability is of paramount importance.
In short: The Turbine Series is highly applicable in Diesel and Biodiesel Engines used in marine and water environments. So, the relevant markets for these fuel filters are:
The Tubine Series from Racor has many features, below a few of them is mentioned:

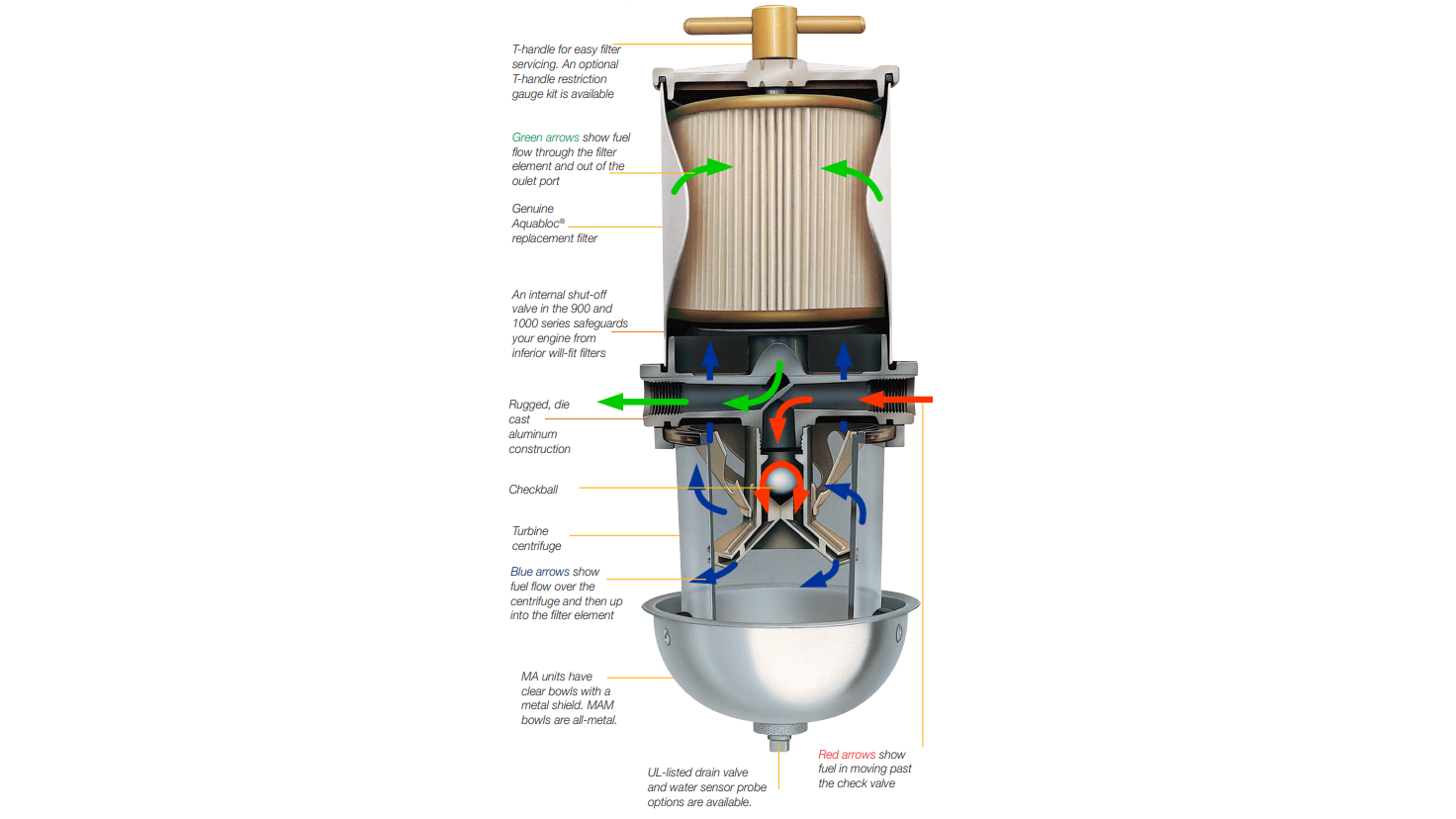

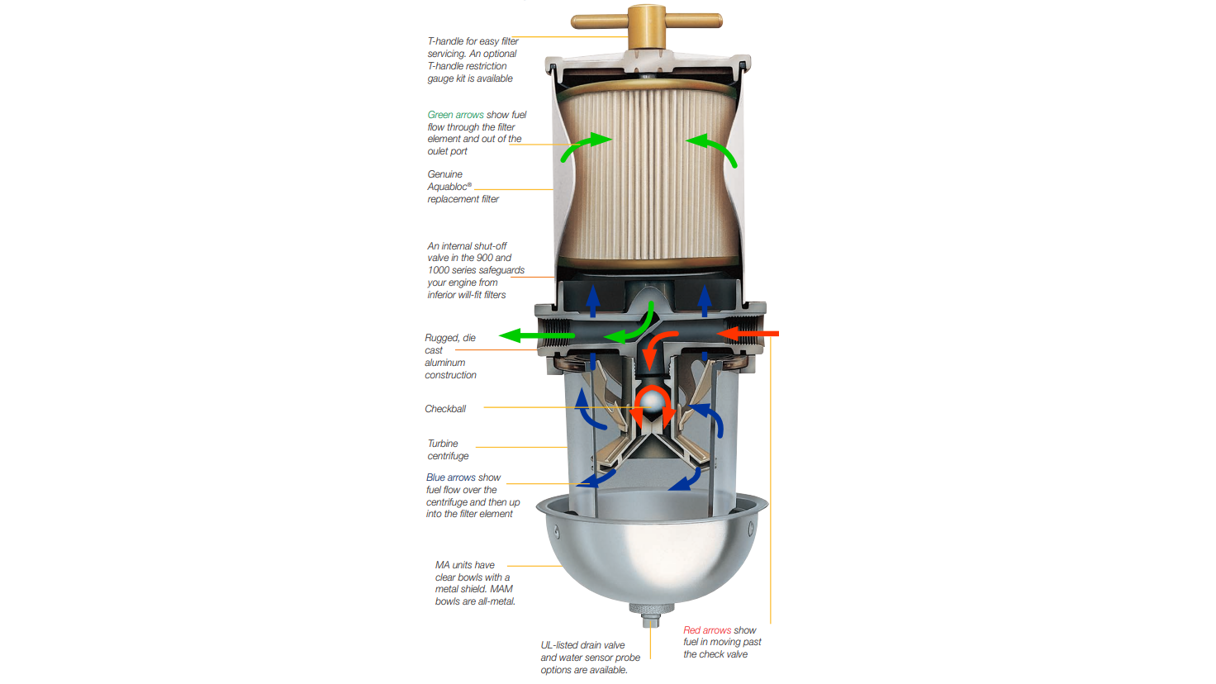

The Turbine Series from Racor boasts a three-stage filtration mechanism, ensuring efficient removal of water and particulates from fuel, which significantly optimizes turbine performance. Let’s go through the three-stage filtration here:
1.
Fuel Separation: Upon entry, it passes the internal check valve, proceeding into the turbine centrifuge where it spirals, removing sizable particulates and water droplets. Due to their weight relative to fuel, they descend to the bowl's base.
2.
Coalescence: Tiny water droplets gather alongside and on the interior parts, including the Aquabloc® filter's outer layer. Once sizable, they also descend into the spacious bowl for drainage as required.
3.
Filtering: In addition to repelling water, asphaltenes, algae, rust, and minute particles from fuel. Aquabloc® filters are water-resistant, thus sustaining effectiveness for extended periods, resulting in cost savings.
Ensure you solely use Genuine Racor Aquabloc® filters to replace your Turbine Series assemblies. While numerous attempts to replicate Aquabloc® filters, only genuine ones meet engine manufacturers' specifications, ensuring reliable protection.
Conveniently, color-coded end-caps facilitate easy identification and application:
Moreover, the upper cap features handles for effortless maintenance and an emergency filter bypass button. In addition, numerous Racor filters come equipped with an emergency bypass for urgent situations.

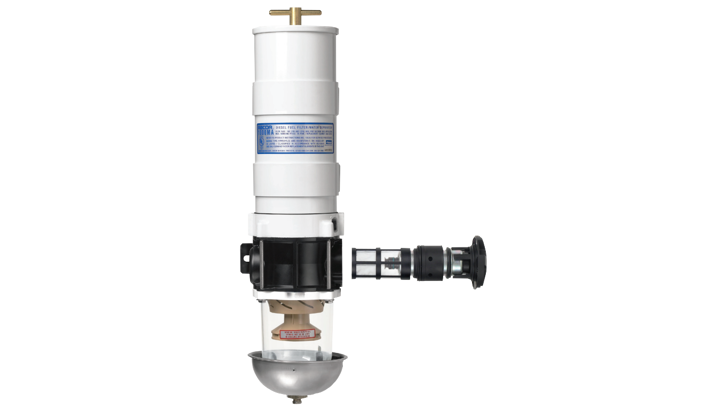

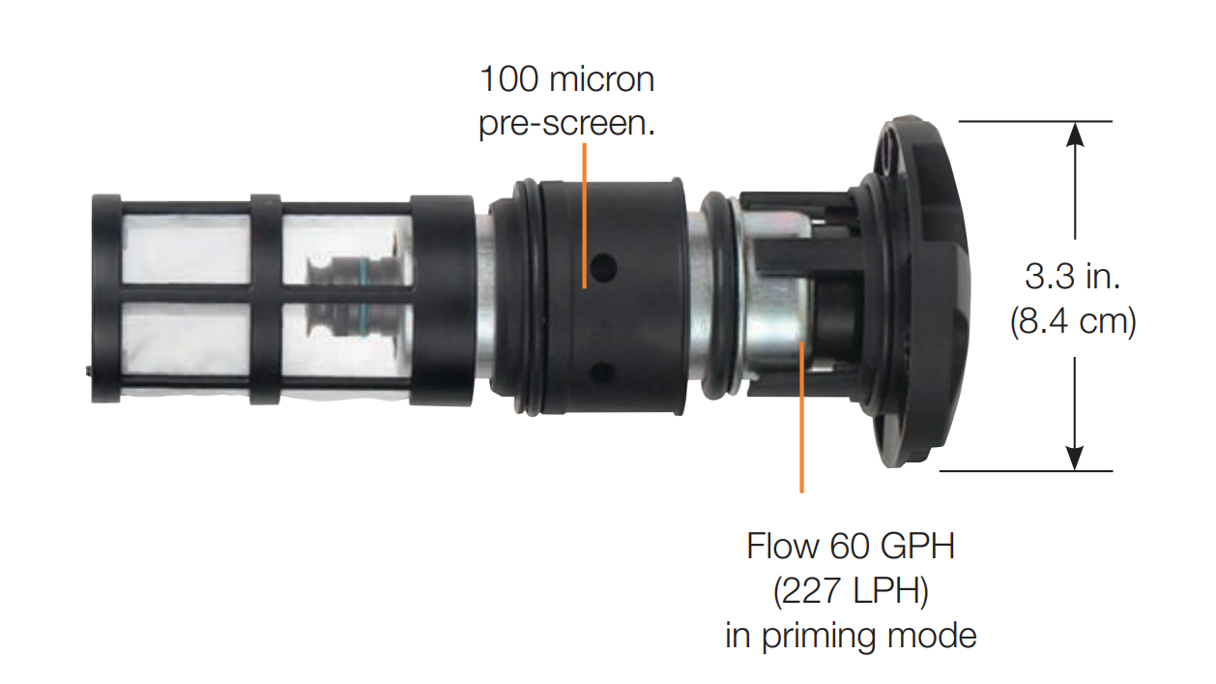

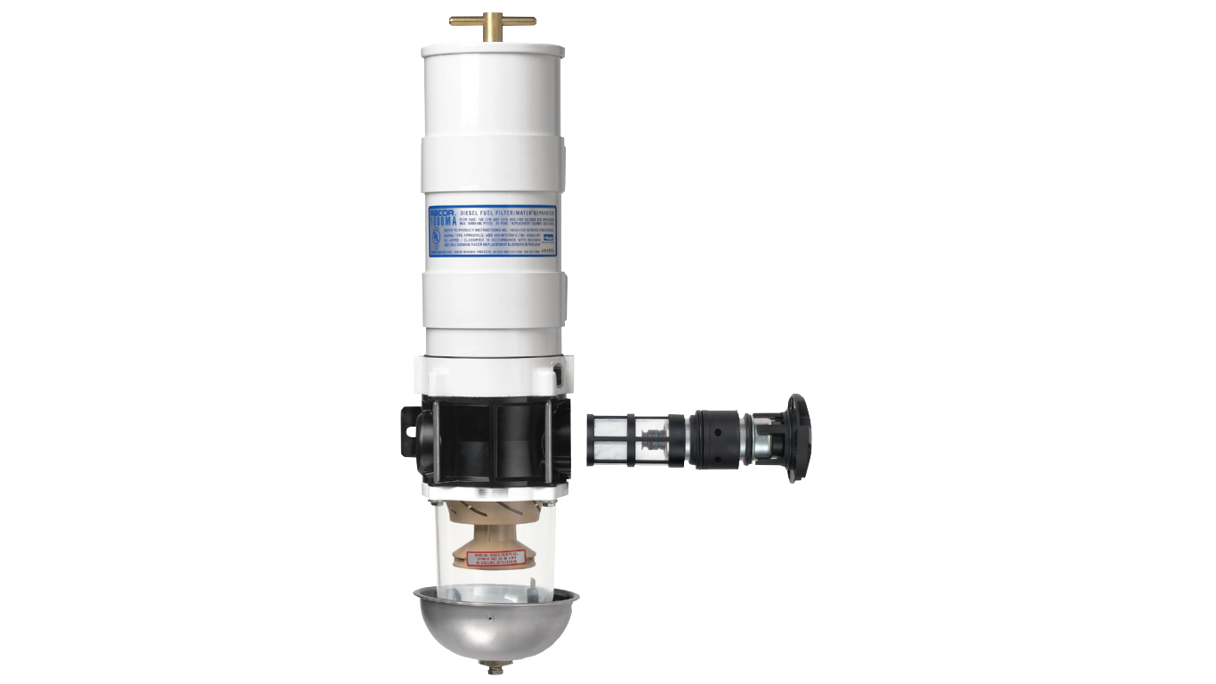

Retrofit Racor's electric primer pump kit to numerous Racor 900 or 1000 Turbine Series fuel filters/water separators already in operation. This system comprises a 100-micron pre-screen filter, a flow bypass circuit, and an inventive roller cell pump driven by a 12 or 24 VDC Racor brushless motor.
Activation of the switch draws fuel into the pre-screen, then pumps it through the housing, replenishing the unit with fresh, clean, dry fuel. During periods of inactivity, the filter pump system is bypassed, allowing the Racor fuel filter/water separator to operate normally.
The complete primer pump kit includes a wiring harness and controller switch.
The compact assembly measures just 3.3 inches (8.4 cm) tall and can be effortlessly retrofitted onto a 900 or 1000 series filter. In Racor duplex or triplex filter setups, only one primer pump is necessary.

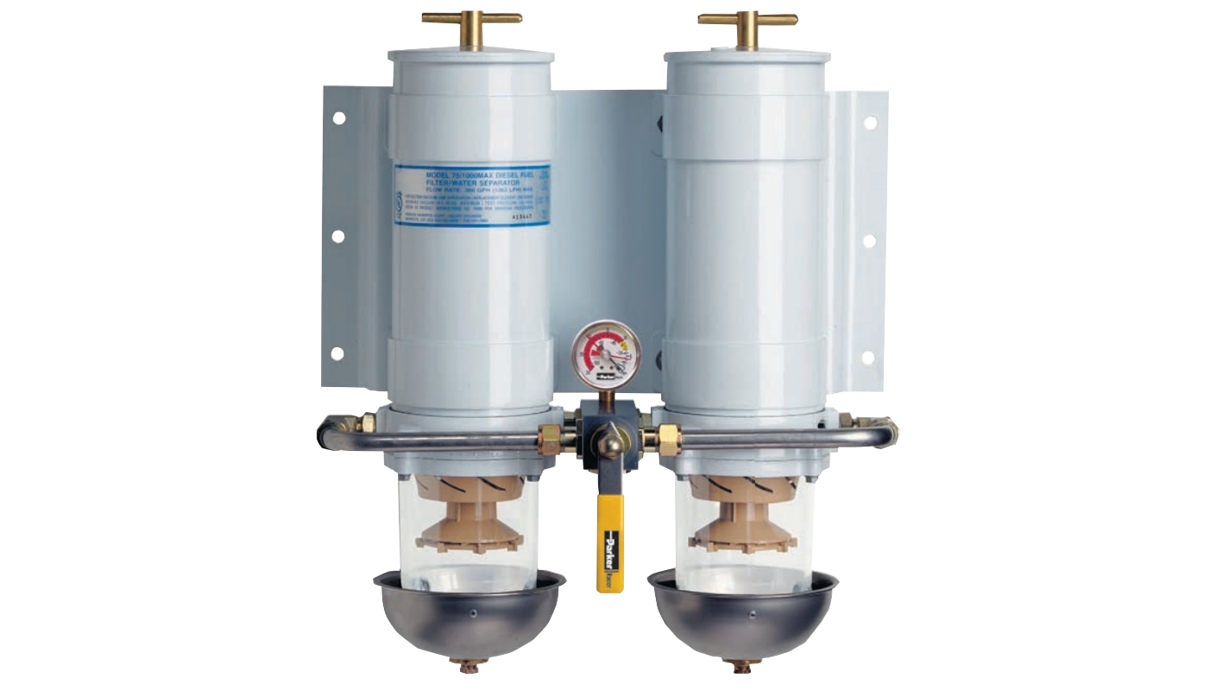

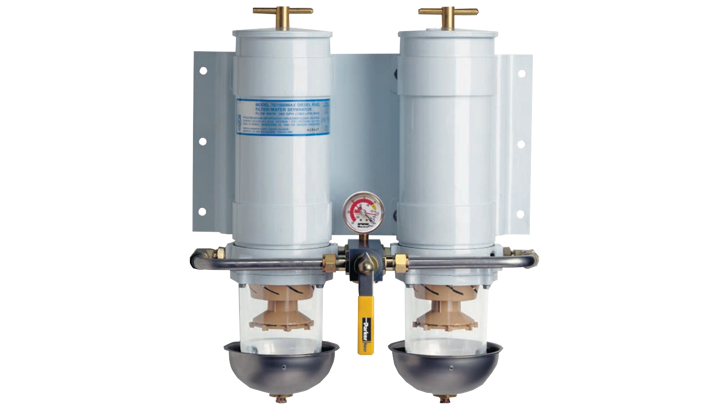

We have listed all the available Turbine Fuel Filters from Racor below.
| Part numbers of the different fuel filters | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

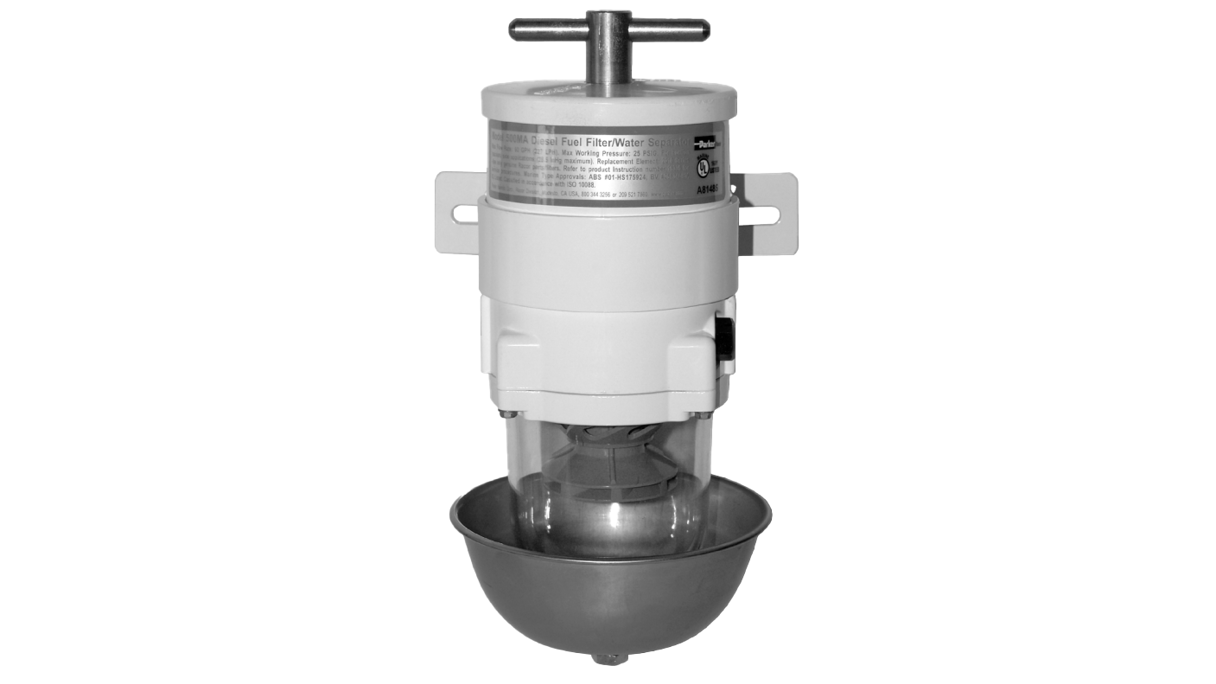

| 500MA |
|
||||||||||||||||||
| 900MA |
|
||||||||||||||||||
| 1000MA |
|
||||||||||||||||||

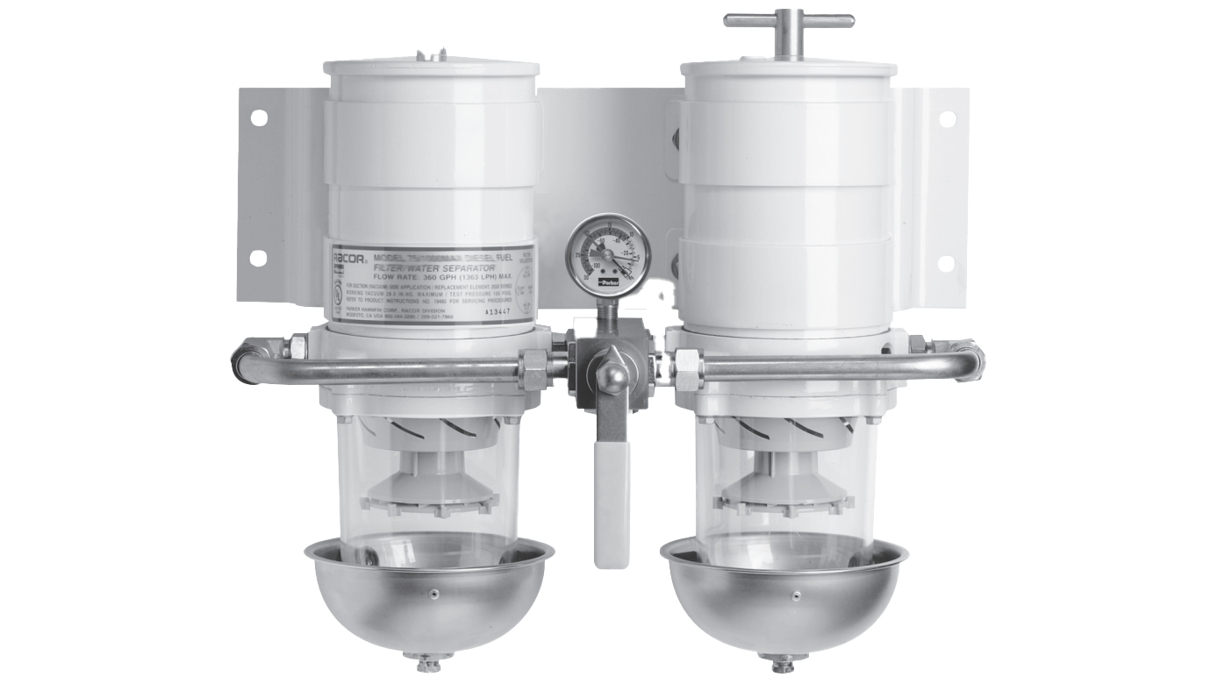

| 75500MAX |
|
||||||||||||||||||
| 75900MAX |
|
||||||||||||||||||
| 731000MA |
|
||||||||||||||||||
| 751000MAX |
|
||||||||||||||||||
| 771000MA |
|
||||||||||||||||||
| 791000MAV |
|
||||||||||||||||||

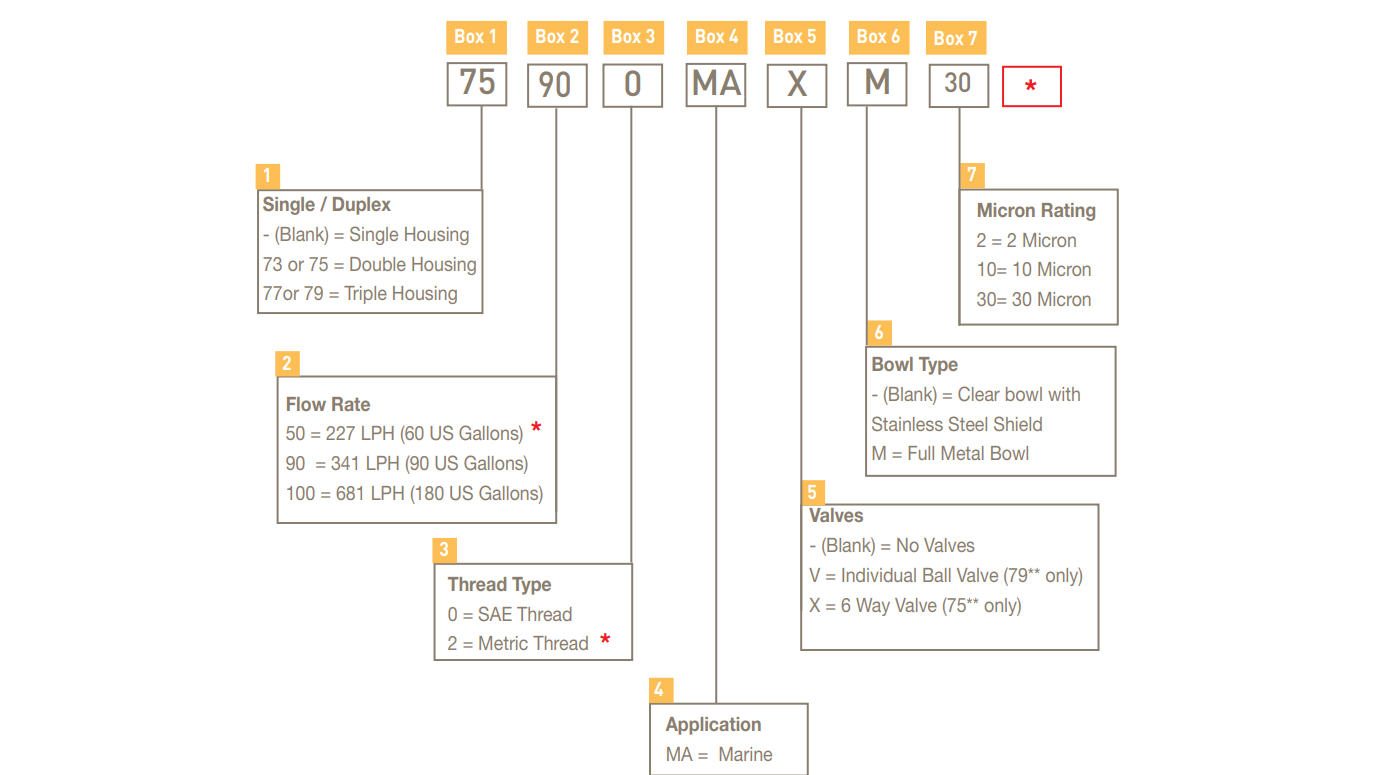

When ordering a Turbine Fuel Filter, you need to provide the part number - but what does the numbers and the letters mean? See the explanation below.
| Part Number | Description |
|---|---|
| RK 11888 / RK23183 | Brass T-handle |
| RK15078-02 | Lid (includes #3) |
| 15005 | Lid Gasket |
| 2010SM-OR / 2010TM-OR / 2010PM-OR | 2 Micron Filter - SM (includes seals) |
| RK 11-1679 | Plug, Heater Feedthru |
| Not available separately | 500 Series Body |
| RK 15378-02 | Mounting Bracket |
| RK 15010B | Checkball and Seal |
| RK 15013D | Turbine Centrifuge/Conical Baffle |
| 15374 | Bowl Gasket |
| RK 15279-01 / RK 15301-02 | Clear Bowl (MA assemblies) |
| RK 20126 | Bowl Plug |
| RK 15035-01 | Bowl Ring |
| RK 15081 | Capscrew |
| RK 11340 | O-ring |
| RK 11341 | Bowl Drain Gasket |
| RK 15104 | Heat Deflector |
| RK 11-1910 | Plug Assembly |
| RK 21069 / RK23191 | MA Water Probe Assembly* *Must be used with Water Detection Amplifier. Contact us here for more info. |
| RK 15211 | Seal Service Kit |
| Part Number | Description |
|---|---|
| RK23183 / RK19671 | T-handle Kit - Includes T-handle 0-ring |
| RK15078-02 | 500MA/MAM Lid Kit (includes T-handle 0-ring and Lid Gasket) |
| 2010SM-OR | Replacement Element 2 micron (Includes T-handle 0-ring and Lid Gasket) |
| 2010TM-OR | Replacement Element 10 micron (Includes T-handle 0-ring and Lid Gasket) |
| 2010PM-OR | Replacement Element 30 micron (Includes T-handle 0-ring and Lid Gasket) |
| RK15441-01 | Clamp Bracket Kit (Includes (1) Bolt, (1) Washer, and (1) Nut) |
| RK 11838 | Carriage Bolt Kit (Includes (2) Bolt, (2) Washer, and (2) Nut) |
| RK 11-1679 | Feed-thru Plug Kit (Includes Plug 0-ring) |
| RK 15010B | Checkball and Gasket Kit |
| RK 15013D | Centrifuge and Baffle Kit (Includes Checkball and Gasket Kit, and Bowl Gasket) |
| RK 15279-01 | Bowl Kit (Clear) (Includes Bowl Gasket, Bowl Plug Kit (MA) - Nylon - 1/2”-20 UNF, and Drain Plug Kit (MA)) |
| RK 15301-02 | Bowl Kit (Metal) (Includes Bowl Gasket, Bowl Plug Kit (MAM) - Metal - 1/2”-20 UNF, Drain Plug (MAM), and Bowl Fasteners (set of 4)) |
| RK 20126 | Bowl Plug Kit (MA) - Nylon - 1/2”-20 UNF |
| RK 20022 | Bowl Plug Kit (MAM) - Metal - 1/2”-20 UNF |
| RK 21069 / RK23191 | WIF Probe Kit - 1/2”-20 UNF - 2-wire (MA) (Requires Water Detection Module) WIF Probe Kit (Stainless Steel) - 1/2”-20 UNF - 2-wire (MAM) (Requires Water Detection Module) |
| RK 11-1910 | Drain Plug Kit (MA) |
| RK 15104 | Heat Deflector (MA) (Includes Drain Plug Kit (MA)) |
| RK 15035-01 | Bowl Ring - (For MA Only - White) (Includes Bowl Gasket) |
| RK 15081 | Bowl Fasteners (set of 4) |
| RK 15211 | Complete Seal Service Kit - 500 Series Filters |
| RK 14329 / RK 14321 | Water Detection Module - 12 vdc Water Detection Module - 24 vdc |
| RK 19492 | Shut-off Valve Drain Kit - UL Listed |
| Part Number | Description |
|---|---|
| RK 11-1945 (Brass) / RK23183(Stainless Steel) | T-handle and O-ring Kit (includes T-handle O-ring)(9/16”-18 UNF Threads) |
| RK11350 | T-handle O-ring |
| RK 11-1933-04 | Lid Kit (Includes Lid Seal) |
| RK11007 | Lid Seal |
| 2040N-02 (2 micron) / 2040N-10 (10 micron) / 2040N-30 (30 micron) | 900MA/MAM (includes Lid Seal) |
| 2020N-02 (2 micron) / 2020N-10 (10 micron) / 2020N-30 (30 micron) | 1000MA/MAM (includes Lid Seal)
|
| RK11-2006 | 900MA/MAM Clamp Bracket Kit |
| RK11-2008 | 1000MA/MAM Double-welded Clamp Bracket Kit |
| (Not Sold Seperately) | 900MA/MAM Body/Housing |
| RK 11-1679 | Feed-thru Plug Kit (includes Plug O-ring) Tighten 15 in. lbs (1.69 Nm) max. |
| 43506 | Plug O-ring |
| RK 11028B | Check Ball Seal |
| RK 11-1939 | Conical Baffle Kit (includes Check Ball Seal, Check Ball, and Bowl Seal) Turbine Centrifuge Kit |
| RK 11-1606-1 (MA models) | Clear Bowl Kit (includes Bowl Seal, Bowl Plug Kit, and Water Probe or Plug O-ring) |
| RK 11734-03 (MAM models) | Metal Bowl Kit (includes Bowl Seal, Bowl Plug Kit, and Bowl Drain Fitting Kit) |
| RK11007 | Bowl Seal |
| RK 20126 (MA models) | Plastic Bowl Plug Kit (includes Water Probe or Plug O-ring) Tighten 15 in. lbs (1.69 Nm) max. |
| RK 20022 (MAM models) | Metal Bowl Plug Kit (includes Water Probe or Plug O-ring) Tighten 15 in. lbs (1.69 Nm) max. |
| (Not Sold Separately) | Water Probe or Plug O-ring |
| RK 11-1910 | Bowl Drain fitting Kit (includes Drain Plug, Drain Fitting O-ring, and Bowl Drain Washer) Tighten 30 in. lbs (3.39 Nm) max |
| 918-N4 | Drain Plug |
| (Not Sold Separately) | Drain Fitting O-ring |
| (Not Sold Separately) | Bowl Drain Washer |
| RK 11868 | MA Heat Deflector Kit (includes Bowl Drain Fitting Kit) |
| RK 11037A | Bowl Ring Kit (includes Bowl Seal and Bowl Fasteners 4 ea.) |
| RK 11542 | Bowl Fasteners (4ea.) Tighten 60 in. lbs (6.78 Nm) max. |
| Part Number | Description |
|---|---|
| RK19669 | Vacuum Gauge (30” Hg) - 3 needles: Theshold (red), Max Change Out (Red - Adjustable), Gauge (Black) |
| RK19667 | Optional - Compound Gauge Kit (Vacuum 30” HG / Pressure 15psi) |
| RK 15390 | 6-Port Ball Valve - 1.5 in. Body |
| RK 15419 | Valve Rebuild Kit - For 2.0 in. Valve Body Only |
| RK 15391 | Rigid Tubing Kit - Includes (1ea.) Tube, Ferrule and Fitting |
| RK 15211 | Complete Seal Service Kit - 500 Series Filters (Requires 2) |
| RK 21069 | WIF Probe Kit - 1/2”-20 UNF - 2-wire (MA) (Requires Water Detection Module) |
| RK23191 | WIF Probe Kit (Stainless Steel) - 1/2”-20 UNF - 2-wire (MAM) (Requires Water Detection Module) |
| RK 14329 | Water Detection Module - 12 vdc |
| RK 14321 | Water Detection Module - 24 vdc |
| RK 15279-01 | Bowl Kit (Clear) (Includes Bowl Gasket, Bowl Plug Kit and Drain Seal/Gasket) |
| RK 15301-02 | Bowl Kit (Metal) (Includes Bowl Gasket, Bowl Plug Kit, Drain Plug, and Bowl Fasteners) |
| RK 15035-01 | Bowl Ring |
| RK 20126 | Bowl Plug Kit (MA) - Nylon - 1/2”-20 UNF |
| RK 20022 | Bowl Plug Kit (MAM) - Metal - 1/2”-20 UNF |
| RK 11-1910 | Drain Plug Kit (MA) |
| RK 15104 | Heat Deflector |
| RK 11-1910 | Plug Assembly |
| RK 15104 | Heat Deflector (MA) (Includes Drain Plug Kit) |
| RK 15035-01 | Bowl Ring - (For MA Only - White) (Includes Bowl Gasket) |
| RK 15081 | Bowl Fasteners (set of 4) |
| 2010SM-OR | Replacement Element 2 micron |
| 2010TM-OR | Replacement Element 10 micron |
| 2010PM-OR | Replacement Element 30 micron |
| Part Number | Description |
|---|---|
| RK 11-1945 (Brass) / RK23183(Stainless Steel) | T-handle and O-ring Kit (includes T-handle O-ring Kit) (9/16”-18 UNF Threads) Hand tight only. |
| RK11350 | T-handle O-ring Kit |
| RK 11-1933-04 | Lid Kit (includes Lid Seal Kit) |
| RK11007 | Lid Seal Kit |
| 2040N-02 (2 micron) | New Filter for 75900MAX or 75900MAXM |
| 2040N-10 (10 micron) | New Filter for 75900MAX or 75900MAXM |
| 2040N-30 (30 micron) | New Filter for 75900MAX or 75900MAXM |
| 2040SM-OR (2 micron) | Current filter for 75900MAX or 75900MAXM |
| 2040TM-OR (10 micron) | Current filter for 75900MAX or 75900MAXM |
| 2040PM-OR (30 micron) | Current filter for 75900MAX or 75900MAXM |
| 2020N-02 (2 micron) | New Filters for 751000MAX or 751000MAXM |
| 2020N-10 (10 micron) | New Filters for 751000MAX or 751000MAXM |
| 2020N-30 (30 micron) | New Filters for 751000MAX or 751000MAXM |
| 2020SM-OR (2 micron) | Current Filters for 751000MAX or 751000MAXM assemblies (includes Lid Seal Kit) |
| 2020TM-OR (10 micron) | Current Filters for 751000MAX or 751000MAXM assemblies (includes Lid Seal Kit) |
| 2020PM-OR (30 micron) | Current Filters for 751000MAX or 751000MAXM assemblies (includes Lid Seal Kit) |
| RK11-2006 | Clamp Bracket Kit |
| Not Sold Separately | 75900MAX or 75900MAXM Body/Housing |
| RK 11-1679 | Feed-thru Plug Kit (includes Plug O-ring) Tighten 15 in. lbs (1.69 Nm) max. |
| 43506 | Plug O-ring |
| RK 11028B | Checkball and Checkball Seal Kit |
| RK 11-1939 | Conical Baffle and Turbine Centrifuge Kit (includes Checkball, Checkball Seal Kit, and Bowl Seal Kit). Hand tighted only. |
| RK 11-1606-1 (MAX models) | Clear Bowl Kit (includes drain, Bowl Seal Kit, and Plug Kit) |
| RK 11734-03 (MAXM models) | Metal Bowl Kit (includes Drain Plug) |
| RK11007 | Bowl Seal Kit |
| RK 20126 (MAX models) | Plastic Plug Kit (includes Water Probe or Plug O-ring) Tighten plugs to 15 in.lbs (1.69 Nm) max. |
| RK 20022 (MAXM models) | Metal Plug Kit (includes Water Probe or Plug O-ring) Tighten plugs to 15 in.lbs (1.69 Nm) max |
| (Not Sold Separately) | Water Probe or Plug O-ring |
| RK 11-1910 | Bowl Drain fitting Kit (includes Drain Plug, Drain Fitting O-ring, and Bowl Drain Washer). Tighten 30 in.lbs (3.39 Nm) max. |
| 918-N4 | Drain Plug |
| (Not Sold Separately) | Drain Fitting O-ring |
| (Not Sold Separately) | Bowl Drain Washer |
| RK 11868 | Heat Deflector Kit (includes Bowl Drain Fitting Kit) |
| RK 11037A | Bowl Ring Kit (includes Bowl Seal Kit and Bowl Fasteners, 4ea.) |
| RK 11542 | Bowl Fasteners (4ea.) Tighten 60 in.lbs (6.78 Nm) max. |
| Part Number | Description |
|---|---|
| RK 11892 | Inlet Manifold Tube (3/4”-14 NPT) (Beige Color) |
| RK 11-1404 | Complete Seal Service Kit - 1000MA Series Filters (Requires 2) |
| RK 21069 | WIF Probe (pig tail) - 1/2”-20 UNF (Requires Water Detection Module) |
| RK23191 | WIF Probe (Steel/pig tail) - 1/2”-20 UNF (Requires Water Detection Module) |
| RK 14329 | Water Detection Module - 12 vdc |
| RK 14321 | Water Detection Module - 24 vdc |
| RK 11-1606-1 | MA Bowl Kit (Clear) (Includes Bowl Gasket, Plastic Bowl Plug Kit, Gasket & O-ring) |
| RK 20126 | Plastic Bowl Plug Kit (MA) |
| RK 11868 | Heat Deflector Kit (MA) (Includes Drain Plug Kit) |
| RK 11-1910 | Drain Plug Kit (MA) |
| 2020N-02 | 1000MA Replacement Element 2 micron |
| 2020N-10 | 1000MA Replacement Element 10 micron |
| 2020N-30 | 1000MA Replacement Element 30 micron |
| Part Number | Description |
|---|---|
| RK 11073 | Ball Valve Assembly (uses 4) |
| 11-1761 | U-bracket (uses 2) |
| RK 11-1404 | Complete Seal Service Kit - 1000MA/MAM Series Filters (Requires 2) |
| RK 21069 | WIF Probe - 1/2”-20 UNF - 2-wire (MA) (Requires Water Detection Module)* *If all units are used simultaneously, one probe or sensor can be used. If units |
| RK23191 | WIF Probe - Stainless Steel - 1/2”-20 UNF - 2-wire (MAM) (Requires Water Detection Module)* *If all units are used simultaneously, one probe or sensor can be used. If units |
| RK 14329 | Water Detection Module - 12 vdc |
| RK 14321 | Water Detection Module - 24 vdc |
| RK 11-1606-1 | MA Bowl Kit (Clear) (Includes Bowl Gasket, Plastic Bowl Plug Kit, and Drain Plug Kit - Gasket & O-ring only) |
| RK 11734-03 | MAM Bowl Kit (Metal) (Includes Bowl Gasket, Metal Bowl Plug Kit, Drain Plug, and Cap Screw Bowl Ring Fasteners, 4 ea.) |
| RK 20022 | Metal Bowl Plug Kit (MAM) |
| RK 20126 | Plastic Bowl Plug Kit (MA) |
| RK 11868 | Heat Deflector Kit (MA) (Includes Drain Plug Kit) |
| RK 11-1910 | Drain Plug Kit (MA) |
| RK 11037A-01 | Bowl Ring Kit (For MA Only - White) (Includes Bowl Gasket and Cap Screw Bowl Ring Fasteners, 4 ea.) |
| RK 11542 | Cap Screw Bowl Ring Fasteners (set of 4) |
| 2020N-02 | 1000MA/MAM Replacement Element 2 micron (uses 3) |
| 2020N-10 | 1000MA/MAM Replacement Element 10 micron (uses 3) |
| 2020N-30 | 1000MA/MAM Replacement Element 30 micron (uses 3) |
| Part Number | Description |
|---|---|
| RK 11-1404 | Complet)e Seal Service Kit - 1000MA Series Filters (Requires 3) |
| RK 21069 | WIF Probe (pig tail) - 1/2”-20 UNF (Requires Water Detection Module) |
| RK23191 | WIF Probe (Steel/pig tail) - 1/2”-20 UNF (Requires Water Detection Module) |
| RK 14329 | Water Detection Module - 12 vdc |
| RK 14321 | Water Detection Module - 24 vdc |
| RK 11-1606-1 | MA Bowl Kit (Clear) (Includes Bowl Gasket, Plastic Bowl Plug Kit, Gasket and O-ring) |
| RK 20126 | Plastic Bowl Plug Kit (MA) |
| RK 11868 | Heat Deflector Kit (MA) (Includes Drain Plug Kit) |
| RK 11-1910 | Drain Plug Kit (MA) |
| 2020V2 | 1000MA Replacement Element 2 micron |
| 2020V10 | 1000MA Replacement Element 10 micron |
| 2020V30 | 1000MA Replacement Element 30 micron |
| Part Number | Description |
|---|---|
| 19460 | Inlet Manifold Tube (3/4”-14 NPT) - (Tan) |
| 19461 | Outlet Manifold Tube (3/4”-14 NPT) - (Tan) |
| RK 11073 | Ball Valve Assembly (uses 6) |
| 11-1761 | U-bracket (uses 2) |
| RK 11-1404 | Complete Seal Service Kit - 1000MA/MAM Series Filters (Requires 3) |
| RK 21069 | WIF Probe - 1/2”-20 UNF - 2-wire (MA) (Requires Water Detection Module)* *If all units are used simultaneously, one probe or sensor can be used. If units |
| RK23191 | WIF Probe - Stainless Steel - 1/2”-20 UNF - 2-wire (MAM) (Requires Water Detection Module)* *If all units are used simultaneously, one probe or sensor can be used. If units |
| RK 14329 | Water Detection Module - 12 vdc |
| RK 14321 | Water Detection Module - 24 vdc |
| RK 11-1606-1 | MA Bowl Kit (Clear) (Includes Bowl Gasket, Plastic Bowl Plug Kit, and Drain Plug Kit - Gasket & O-ring only) |
| RK 11734-03 | MAM Bowl Kit (Metal) (Includes Bowl Gasket, Metal Bowl Plug Kit, Drain Plug, and Cap Screw Bowl Ring Fasteners, 4 ea.) |
| RK 20022 | Metal Bowl Plug Kit (MAM) |
| RK 20126 | Plastic Bowl Plug Kit (MA) |
| RK 11868 | Heat Deflector Kit (MA) (Includes Drain Plug Kit) |
| RK 11-1910 | Drain Plug Kit (MA) |
| RK 11037A-01 | Bowl Ring Kit (For MA Only - White) (Includes Bowl Gasket and Cap Screw Bowl Ring Fasteners, 4 ea.) |
| RK 11542 | Cap Screw Bowl Ring Fasteners (set of 4) |
| 2020N-02 | 1000MA/MAM Replacement Element 2 micron (uses 3) |
| 2020N-10 | 1000MA/MAM Replacement Element 10 micron (uses 3) |
| 2020N-30 | 1000MA/MAM Replacement Element 30 micron (uses 3) |
All Racor marine fuel filter water separators incorporate Racor's exclusive Aquabloc® filtration elements. Aquabloc® features a unique engineered design with pleat-spacing corrugations and a graduated pore structure, enhancing dirt-holding capacity and prolonging filter lifespan. This waterproof and rustproof media efficiently captures contaminants, while its specially treated surface facilitates water separation and coalescence from the fuel. Resultantly, water gathers into large droplets, which then descend into the clear collection bowl. Aquabloc® elements are available in three different ratings:
30 micron (98%@30 micron): Ideally utilized as a pre-filter to safeguard downstream filters from excessive contamination, thus extending the lifespan of the entire fuel system.
10 micron (98%@10 micron): Offers enhanced contaminant capture compared to 30 micron elements and provides superior water-blocking capabilities, thereby prolonging the entire fuel system's longevity.
“2” micron (98%4 microns): Delivers optimal water removal and filtration, ensuring comprehensive protection for all modern injection systems and significantly extending the service life of challenging-to-access on-engine filters.
Ask any sailor about engine protection, filtration, or reliability and performance, and across all types of vessels, from superyachts to fishing boats, the answer remains the same for over four decades… Racor.
Racor filters deliver the utmost quality and reliability cherished by mariners - this commitment is driven by you - our customers. The marine vessel and its crew, whether for work or leisure, are a personal obligation. The products, crafted through computer-aided design and rigorous manufacturing processes, are built to endure harsh marine conditions. This dedication to unwavering excellence has established Racor as the foremost name in engine protection globally.
For over four decades, countless vessels have ventured into oceans, rivers, and lakes, shielded by the industry's most relied-upon name: Racor. Offering a comprehensive array of filtration solutions renowned for their efficiency and dependability. Explore our diverse range of products tailored precisely to your systems and operational requirements.
Opting for subpar media means facing early performance issues, with potential blockages occurring up to 70% sooner compared to Racor's superior Aquabloc® media, which is crucial for optimal turbine performance. Racor's proprietary Aquabloc® media surpasses OEM fuel injection systems' standards for water removal and particle efficiency, ensuring optimal performance and longevity.
Inferior filter construction can lead to internal bypass, permitting contaminated fuel and water to reach the engine. However, Racor employs top-notch materials and adheres to ISO/TS16949 production standards to eradicate bypass issues, ensuring only clean, quality fuel reaches your engine.
Substandard seals can swell excessively, leading to leaks and premature deterioration. However, Racor implements high-quality automotive-grade gaskets and seals, including NBR, HNBR, and Viton®, ensuring compatibility with B20 bio-diesel and longevity throughout the service period.
Ineffective filters fail to safeguard the engine adequately. However, Racor replacement filters are engineered to perform precisely as intended for their designated application, ensuring optimal engine protection.
Most copycat filters fall short of meeting original equipment specifications. However, Racor maintains consistency by utilizing identical media and materials in both original equipment and replacement filters, ensuring performance to the highest standards.
Low-quality pump diaphragms and seals can harden over time, leading to leaks. However, Racor employs premium materials specifically rated for operating temperatures ranging from -40°F to +255°F (-40°C to +124°C), ensuring durability and preventing potential leakage issues.
Inadequate head castings struggle to withstand severe environmental conditions and vibrations. However, Racor products undergo rigorous validation testing in extreme vibration and climatic conditions, ensuring their resilience and reliability in challenging environments.
Certain copy filters may contain prohibited substances in their canister coating and plating. In contrast, Racor canisters are free from any banned substances and undergo thorough validation testing in extreme salt spray and climatic conditions, ensuring compliance and durability.
Copycat filter bowls frequently utilize substandard materials prone to cracking when exposed to extreme temperatures, chemicals, or continuous vibrations. In contrast, Racor employs a unique and durable clear plastic bowl material characterized by high clarity, excellent UV protection, resistance to low and high temperatures, impact resistance, and imperviousness to all fuel types, ensuring longevity and reliability in diverse operating conditions.
Unauthorized Racor copies often lack necessary accessories, and if they do include them, they likely haven't undergone testing. Conversely, Racor provides a comprehensive selection of filter accessories meticulously validated for integrity, EMC compatibility, and safety, ensuring optimal performance and reliability.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Overall Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Industry | Marine |
||||||||||||||||||
| Application | Marine Fuel Filtration |
||||||||||||||||||
| Product Series | Marine MA / Marine WMA Turbine / Cartridge FF / WS |
||||||||||||||||||
| For Fluid Type | Diesel Fuel / B20 |
||||||||||||||||||
| Mounting Type | Bracket Included |
||||||||||||||||||
| Number of Housings | 1 to 3 Housings depending on product selected |
||||||||||||||||||
| Clean Pressure Drop | 0.02 to 0.26 depending on product selected bar, 0.34 to 3.7 depending on product selected psi |
||||||||||||||||||
| Pump Type | Not available, or electric priming available as a kit, depending on product slected |
||||||||||||||||||
| Number of Ports | 2 |
||||||||||||||||||
| Filter Element Type | Top loaded elements cartridge with "2", "10", or "30" micron Auqabloc Media depending on product selected |
||||||||||||||||||
| Compatible Element | 2020N-", 2020N-10, 2020N-30, 2010SM-OR, 2012TM-OR, 2010PM-OR, depending on product selected |
||||||||||||||||||
| Materials of Construction | Powder Coated Aluminium Alloy |
||||||||||||||||||
| Maximum Continuous Pressure | 15 psi / 1.03 bar |
||||||||||||||||||
| Element Removal Clearance | 4 in/10.2 mm to 10 in/25.4 mm inch |
||||||||||||||||||
| 500MA Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 29.2 cm (11.5 in.) |
||||||||||||||||||
| Width | 14.7 cm (5.8 in.) |
||||||||||||||||||
| Depth | 12.2 cm (4.8 in.) |
||||||||||||||||||
| Weight (approx.) | 1.8 kg (4 lbs) |
||||||||||||||||||
| Port Size | Port Size: 16 mm x 1.5 *500 Series use (MTC) for metric port threads |
||||||||||||||||||
| Clean Pres. Drop | 0.02 bar (0.3 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2010 Series |
||||||||||||||||||
| Overhead Clearance | 10.2 cm (0.4 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +124°C (-40° to +255°F) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 900MA Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 43.2 cm (17.0 in.) |
||||||||||||||||||
| Width | 15.2 cm (6.0 in.) |
||||||||||||||||||
| Depth | 17.8 cm (7.0 in.) |
||||||||||||||||||
| Weight (approx.) | 2.7 kg (6 lbs) |
||||||||||||||||||
| Port Size | Port Size: 22 mm x 1.5 *500 Series use (MTC) for metric port threads
|
||||||||||||||||||
| Clean Pres. Drop | 0.02 bar (0.3 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2040 Series |
||||||||||||||||||
| Overhead Clearance | 12.7 cm (5.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +124°C (-40° to +255°F) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 1000MA Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 55.9 cm (22 in.) |
||||||||||||||||||
| Width | 14.7 cm (5.8 in.) |
||||||||||||||||||
| Depth | 12.2 cm (4.8 in.) |
||||||||||||||||||
| Weight (approx.) | 7.7 kg (17 lbs) |
||||||||||||||||||
| Port Size | Port size: 22 mm x 1.5 *500 Series use (MTC) for metric port threads |
||||||||||||||||||
| Clean Pres. Drop | 0.03 bar (0.49 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2020 Series |
||||||||||||||||||
| Overhead Clearance | 25.4 cm (10.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +124°C (-40° to +255°F) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 75500MAX Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 29.2 cm (11.5 in.) |
||||||||||||||||||
| Width | 36.8 cm (14.5 in.) |
||||||||||||||||||
| Depth | 24.1 cm (9.5 in.) |
||||||||||||||||||
| Weight (approx.) | 7.7 kg (17 lbs) |
||||||||||||||||||
| Port Size | Port Size: N/A 500 Series metric = MTC*: 3/4”-16 SAE *500 Series use (MTC) for metric port threads |
||||||||||||||||||
| Clean Pres. Drop | 0.05 bar (0.70 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2010 Series |
||||||||||||||||||
| Overhead Clearance | 10.2cm (4.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +124°C (-40° to +255°F) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 75900MAX Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 43.2 cm (17.0 in.) |
||||||||||||||||||
| Width | 47.8 cm (18.8 in.) |
||||||||||||||||||
| Depth | 27.9 cm (11.0 in.) |
||||||||||||||||||
| Weight (approx.) | 10.4 kg (23 lbs) |
||||||||||||||||||
| Port Size | Port size: N/A *500 Series use (MTC) for metric port threads |
||||||||||||||||||
| Clean Pres. Drop | 0.12 bar (1.7 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2040 Series |
||||||||||||||||||
| Overhead Clearance | 12.7 cm (5.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +124°C (-40° to +255°F) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 731000MA Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 55.9 cm (22 in.) |
||||||||||||||||||
| Width | 41.9 cm (16.5 in.) |
||||||||||||||||||
| Depth | 30.5 cm (12.0 in.) |
||||||||||||||||||
| Weight (approx.) | 11.8 kg (26 lbs) |
||||||||||||||||||
| Port Size | 3/4”-14 NPT |
||||||||||||||||||
| Clean Pres. Drop | 0.12 bar (1.7 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2020 Series |
||||||||||||||||||
| Overhead Clearance | 25.4 cm (10.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +255°F (-40° to +124°C) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 751000MAX Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 55.9 cm (22 in.) |
||||||||||||||||||
| Width | 45.7 cm (18.0 in.) |
||||||||||||||||||
| Depth | 27.9 cm (11.0 in.) |
||||||||||||||||||
| Weight (approx.) | 13.6 kg (30.lbs) |
||||||||||||||||||
| Port Size | 7/8”-14 SAE |
||||||||||||||||||
| Clean Pres. Drop | 0.26 bar (3.7 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2020 Series |
||||||||||||||||||
| Overhead Clearance | 25.4 cm (10.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +255°F (-40° to +124°C) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 771000MA Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 55.9 cm (22 in.) |
||||||||||||||||||
| Width | 45.7 cm (18.0 in.) |
||||||||||||||||||
| Depth | 27.9 cm (11.0 in.) |
||||||||||||||||||
| Weight (approx.) | 17.7 kg (39 lbs) |
||||||||||||||||||
| Port Size | 1”-11.5 NPT |
||||||||||||||||||
| Clean Pres. Drop | 0.12 bar (1.7 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2020 Series |
||||||||||||||||||
| Overhead Clearance | 25.4 cm (10.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +255°F (-40° to +124°C) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
| 791000MAV Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Flow Rate |
|
||||||||||||||||||
| Height | 55.9 cm (22 in.) |
||||||||||||||||||
| Width | 54.6 cm (21.5 in.) |
||||||||||||||||||
| Depth | 30.0 cm (11.8 in.) |
||||||||||||||||||
| Weight (approx.) | 23.6 kg (52 lbs) |
||||||||||||||||||
| Port Size | 3/4”-14 NPT |
||||||||||||||||||
| Clean Pres. Drop | 0.17 bar (2.5 PSI) |
||||||||||||||||||
| Max. Operating Pressure (Vacuum installations are recommended) | 1.03 bar (15 PSI) |
||||||||||||||||||
| Replacement Filter | 2020 Series |
||||||||||||||||||
| Overhead Clearance | 25.4 cm (10.0 in.) |
||||||||||||||||||
| Ambient Temperature Range | -40° to +255°F (-40° to +124°C) |
||||||||||||||||||
| Maximum Fuel Temperature | 88°C (190°F) |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
Search
