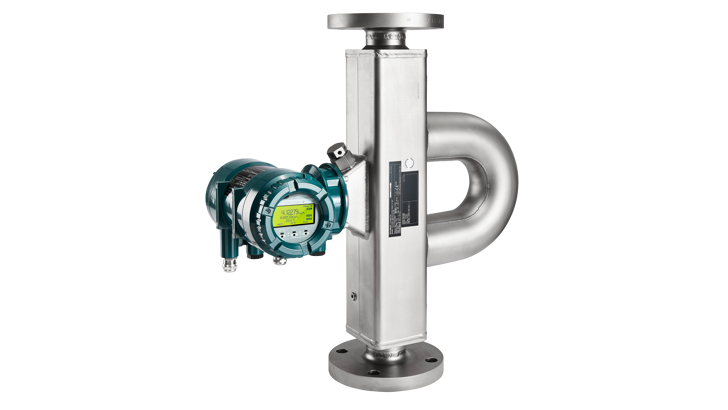

The ROTAMASS TI Supreme combines Yokogawa’s advanced Coriolis technology with Insatech Marine’s field expertise. Engineered for demanding medium-flow environments, it delivers unmatched precision and reliability in the toughest engine rooms.
Key Advantages:
We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.
The Yokogawa ROTAMASS TI Supreme is engineered for versatility. While it excels in any medium-flow environment, its design is specifically optimized for high-stakes maritime and process engineering tasks where precision directly impacts the bottom line.
In the marine industry, fuel is the largest operating expense. The ROTAMASS TI Supreme provides the accuracy required for:
Fuel Consumption Measurement: Real-time monitoring of HFO, MDO, and LNG to optimize engine performance.
Bunker Operations: High-precision mass flow measurement during fuel transfer to ensure you receive exactly what you pay for.
Burner Control: Maintaining the exact air-to-fuel ratio for optimal combustion and reduced emissions.
For industrial chemical and pharmaceutical applications, the meter’s ability to handle demanding conditions ensures consistency:
Batching & Dosing: High-speed response times for precise filling of chemicals or solvents.
Feed and Product Control: Maintaining steady-state flow in continuous production lines.
Loss Control: Identifying leaks or inefficiencies in material and mass balances across complex systems.
The ROTAMASS TI Supreme is more than a flow meter; it is a real-line analyzer.
Net Oil Computing: Integrated API standards to calculate the volume of clean oil in a water/oil mixture.
Water Cut Monitoring: Crucial for upstream and midstream oil & gas applications.
Gas Void Fraction (GVF): The "Supreme" diagnostics manage entrained gas (bubbles) in the liquid, providing reliable density readings where other meters fail.
Concentration Measurement: Monitoring Brix, Plato, or acid/base concentrations in real-time.
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
Fuel is the single largest operating cost for any vessel. The Yokogawa ROTAMASS TI Supreme is the core component of Insatech Marine’s performance systems, engineered to deliver precision in the most volatile engine room environments.
Ships are high-vibration environments. Standard Coriolis meters often struggle with "noise" and mechanical stress, leading to measurement drift. The ROTAMASS TI Supreme addresses this with its Patented Box-in-Box Design.
Vibration Immunity: The dual-case design isolates the measuring tubes from ship-born vibrations and piping stress.
Space-Saving Installation: Unlike volumetric or ultrasonic meters, the ROTAMASS requires zero straight pipe runs, allowing for easy retrofitting in cramped engine rooms.
DNV Certified: Fully Type Approved by DNV (formerly DNV-GL), ensuring the meter meets the rigorous safety and quality standards required for global maritime operations.
Traditional fuel measurement relies on volume, which fluctuates with temperature and density. By utilizing the Coriolis Principle, the ROTAMASS TI Supreme provides direct mass measurement:
No Compensation Needed: Eliminates the need for external temperature sensors or density manual entries, removing the risk of "human error" in fuel reporting.
High Turndown Ratio: Maintains precision from high-flow bunkering down to low-flow idling, outperforming traditional mechanical meters across the entire engine load range.
Total Health Check: Features built-in self-diagnostics that monitor the meter’s internal integrity, ensuring your data is "audit-ready" for MRV and IMO DCS compliance.
|
Feature |
Marine Benefit |
|
Box-in-Box System |
Decouples measurement from hull vibration and pipe stress. |
|
Field-Proven |
Validated by over 1,000 vessel installations worldwide. |
|
Maintenance-Free |
No moving parts to wear out or clog from heavy fuel oil (HFO). |
|
Multi-Variable Output |
Simultaneous real-time measurement of mass, density, and temperature. |
|
Fast Commissioning |
Pre-configured for marine applications to ensure a "plug-and-play" experience. |
Traditional flow systems often require a "chain" of components - temperature sensors, pressure transmitters, and flow computers - to calculate mass flow. Every link in that chain is a potential point of failure or miscalculation.
Eliminate Calculation Drift: The Yokogawa ROTAMASS provides direct mass and density signals. By removing the need for external compensation, you eliminate the mathematical "offsets" that occur as fuel temperature or viscosity fluctuates.
Tamper-Proof Data: Direct signals from the meter to your monitoring system (like a Fuel Management System) reduce the risk of manual data manipulation, ensuring your MRV and IMO DCS reporting is audit-ready and accurate.
Advanced Diagnostics: Integrated self-monitoring provides real-time health checks, alerting the crew to sensor issues before they impact performance data.
While many Coriolis meters are sensitive to the physical stresses of a vessel - such as thermal expansion of piping, hull torque, and engine vibration - the ROTAMASS TI Supreme is purpose-built for these conditions.
The Box-in-Box Advantage: Our patented dual-case design acts as a mechanical "decoupler." The outer casing absorbs the external stresses of the engine room, allowing the inner measuring tubes to oscillate freely and accurately.
Reduced Installation Costs: Because the meter is immune to most piping stresses, it does not require the expensive, space-consuming "support frames" or specialized alignment often needed by inferior meters.
Mechanical (Positive Displacement) meters are prone to wear and clogging, especially when handling Heavy Fuel Oil (HFO) with high sulfur or catalytic fines. The ROTAMASS TI Supreme changes the maintenance paradigm:
No Moving Parts: With no rotors, gears, or bearings to wear out, the internal risk of breakdown is virtually zero.
Filter-Free Installation: Unlike volumetric meters that require fine-mesh strainers (which frequently clog and cause pressure drops), the ROTAMASS sensor is insensitive to particles in the fuel stream.
Crew Efficiency: By eliminating filter cleanings and periodic recalibrations, your crew can focus on mission-critical performance tasks rather than routine instrument maintenance.
In maritime instrumentation, the "cheapest" option often becomes the most expensive over a 5-year lifecycle. When evaluating the ROTAMASS TI Supreme, we encourage owners to look at the Total Cost of Ownership (TCO):
|
Cost Factor |
Traditional Volumetric Meter |
Yokogawa ROTAMASS Supreme |
|
Initial Investment |
Lower |
Higher |
|
Installation |
Requires straight runs/filters |
Flexible / No filters |
|
Maintenance |
High (Parts + Crew Time) |
Zero |
|
Pressure Drop |
Significant (Higher Pump Load) |
Minimal |
|
Accuracy Drift |
Increases with mechanical wear |
Stable over lifetime |
Conclusion: Cutting costs on the initial purchase often leads to higher fuel slippage, increased maintenance man-hours, and unreliable data. Selecting the ROTAMASS TI Supreme is an investment in long-term vessel efficiency and regulatory compliance.
Selecting a flow meter is a decision that impacts a vessel's operational expenses (OPEX) for a decade or more. At Insatech Marine, we guide owners to choose instruments that don't just meet today’s requirements but are scalable for future environmental regulations and digital transformation.
For most onboard engine room installations, Insatech Marine recommends a remote-mounted transmitter setup (where the converter is separated from the flow tube).
Vibration Decoupling: By separating the sensitive electronics (transmitter) from the fuel line (sensor), we significantly increase the lifespan of the instrument. This protects the converter from the constant high-frequency vibrations and thermal stress of the engine room piping.
Ease of Access: Remote mounting allows the display and controls to be placed at eye level for the crew, rather than tucked away in hard-to-reach piping runs.
Maintenance & Service: If the electronics ever require service, they can be accessed without disturbing the pressurized fuel line or the sensor itself.
The maritime industry is shifting toward data-driven reporting (CII, EEXI, and EEOI). Choosing the ROTAMASS TI Supreme ensures your vessel is ready for these changes:
Software-Ready Upgrades: Through "Features on Demand," you can unlock advanced functions like Viscosity or Batching via a software key, without the need to replace physical hardware.
Avoid "Early-Stage" Obsolescence: While a low-cost, basic meter may work for simple flow indications today, it often lacks the digital output and diagnostic depth required for future performance monitoring systems, leading to expensive retrofitting costs later.
In a "low-cost" setup, the initial savings are often eclipsed by the cost of time spent on troubleshooting, frequent zero-point adjustments, or premature failure due to vibration fatigue. A future-proven instrument ensures:
Lower Retrofitting Costs: One installation that lasts the lifetime of the vessel.
High Data Integrity: Reliable data for fuel audits and bunkering claims.
Crew Confidence: Minimal interaction required with the device once commissioned.
The Coriolis effect is a universal physical phenomenon that occurs when a mass moves within a rotating or oscillating frame of reference. In the Yokogawa ROTAMASS, this principle is harnessed to provide the most accurate flow data available to the maritime industry.
Inside the meter, a set of dual U-shaped sensor pipes is vibrated by an electromagnetic drive coil at their natural resonant frequency.
At Zero Flow: When the fuel is stationary, the upstream and downstream sections of the pipes oscillate in perfect synchronization.
During Active Flow: As fuel moves through the vibrating tubes, the Coriolis force is generated. This force acts in opposite directions on the inlet and outlet legs of the tubes, causing them to "twist."
The Result: Highly sensitive pick-up coils detect a time delay—or Phase Shift—between the two ends of the pipe. This shift is directly proportional to the mass flow rate. Because it measures mass (inertia) rather than volume, the reading remains accurate regardless of changes in temperature, pressure, or viscosity.
Simultaneously, the meter monitors the frequency at which the tubes vibrate.
The mass of the tubes plus the mass of the fluid inside them determines the vibration frequency.
A heavier fluid (higher density) causes the tubes to vibrate more slowly, while a lighter fluid allows for a higher frequency.
By measuring this frequency, the ROTAMASS provides a continuous, high-precision density measurement in real-time.
The amount of energy (current) required to keep the tubes oscillating at their resonant frequency provides further insight into the process. Sudden increases in "Drive Gain" can indicate the presence of entrained air or gas (slug flow), allowing the ROTAMASS to alert the crew to aeration issues that would compromise standard volumetric meters.
As a universal solution for liquid and gas flow, the Yokogawa ROTAMASS TI Supreme is engineered to handle the full spectrum of marine fluids, ranging from heated Heavy Fuel Oil (HFO) to cryogenic Liquid Natural Gas (LNG). This versatility makes it the cornerstone of comprehensive fuel management, providing high-precision measurement for bunkering, fuel transfer, and consumption monitoring across all fuel grades, while simultaneously offering the precise tracking required for lube oil monitoring and optimized vessel maintenance.
For vessels operating in volatile environments, the system ensures complete safety with ATEX, IECEx, and FM certifications for hazardous area compliance. The engineering of the ROTAMASS TI Supreme also prioritizes seamless retrofitting and installation; its compact footprint requires no straight piping runs (0 x D), allowing it to be integrated into the tightest engine room configurations. Operators benefit from flexible orientation options, supporting both horizontal and upwards-vertical flow to ensure the measuring tubes remain full, while advanced aeration handling allows the meter to maintain accuracy even in real-world conditions where air-free liquids cannot be guaranteed.

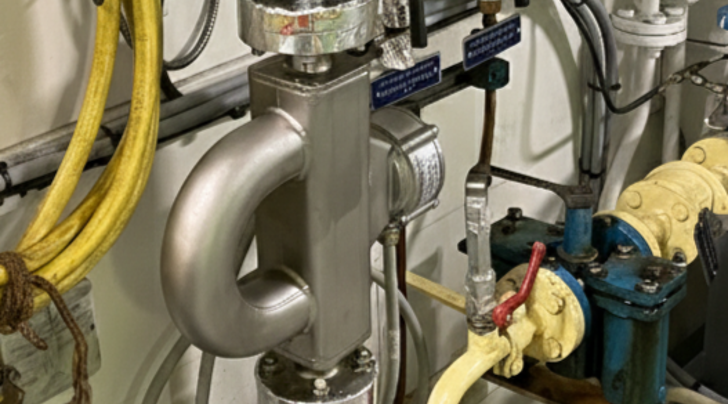

In 2011 Insatech Marine initiated a collaboration with Uni-Tankers as their advisor and component supplier. Uni-Tankers is known for their innovative approach to ship operations and their constant pursuit of optimizations, like using special paint on the hull and many other optimization projects – and the only way to get insights into the effect of these initiatives is to measure fuel consumption.
Since 2014 Insatech Marine has installed more than 1,500 mass flow meters and data collection on 200+ vessels for an international shipping line to give a more detailed insight into the vessels fuel consumption to save cost and reduce their CO2-emission.

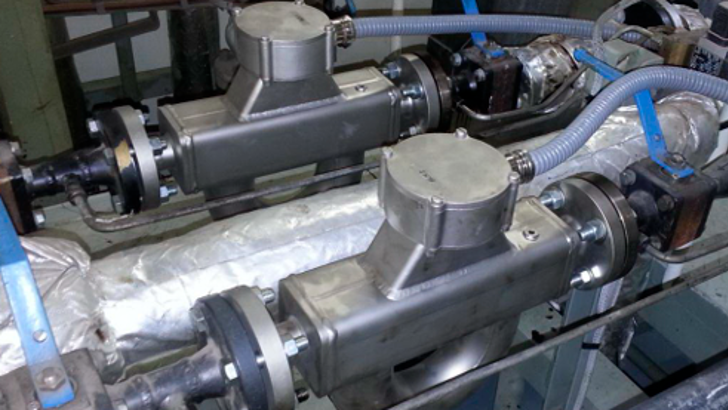

Christiania Shipping improved fuel transparency and operational efficiency by upgrading to high-accuracy Coriolis mass flow measurement on both supply and return lines. The solution eliminated uncertainty caused by density and temperature variations, enabling precise net fuel consumption calculation. The result was reliable performance monitoring, stronger fuel cost control, and a scalable solution for fleet-wide optimization.

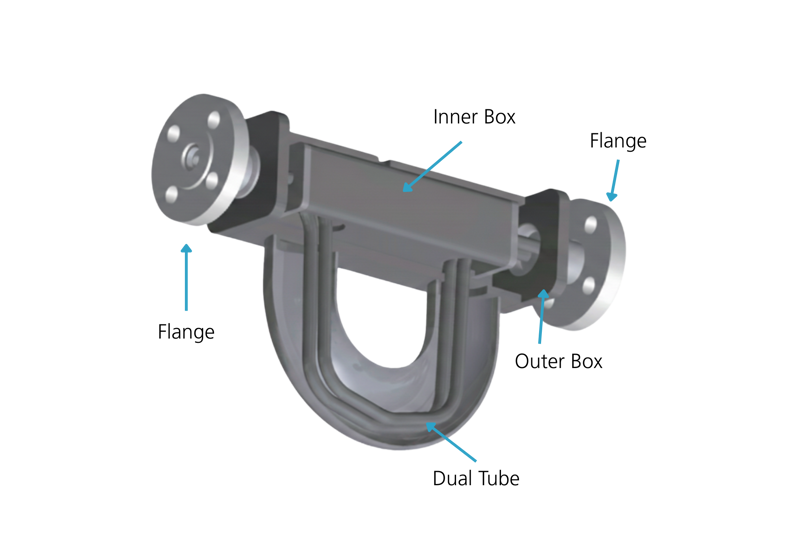

The ROTAMASS TI Supreme features a unique, patented "Box-in-Box" design that sets it apart from standard Coriolis meters. In the volatile environment of a vessel's engine room, this construction is essential for maintaining metrological integrity.
How it protects your data:
Structural Isolation: The outer casing handles all process connections and absorbs external stresses from pipe misalignment, thermal expansion, and hull torque.
Mechanical Decoupling: The inner casing houses the sensitive measuring tubes, completely isolating them from the "noise" of the piping system.
Stable Zero-Point: By diverting external forces around the sensor piping, the meter maintains an exceptionally stable zero-point, significantly reducing the frequency of recalibrations compared to single-case meters.
At Insatech Marine, our expertise extends far beyond the hardware. We ensure that your instrumentation delivers maximum value through every stage of its operational life.
While the Box-in-Box design offers greater tolerance for pipe stress, maritime installations still require precision. We offer flexible support levels to match your fleet's needs:
Technical Guidance: Remote or on-site supervision to ensure your crew installs the meter for optimal performance.
Turnkey Implementation: Our specialized technicians can handle the entire mechanical and electrical installation process.
Certified Commissioning: We finalize the setup and verify all signals, ensuring the meter is perfectly integrated into your vessel's fuel management or automation systems.
Our commitment to your vessel doesn't end at the shipyard. We provide a comprehensive service ecosystem to ensure long-term ROI:
Expert Troubleshooting: Rapid response for fault-finding and signal diagnostics.
Performance Audits: Periodic health checks to ensure your fuel data remains audit-ready for regulatory compliance.
Extended Reliability: By choosing Insatech, you benefit from decades of maritime experience, ensuring your Coriolis setup remains a high-performing asset for the life of the vessel.
Secure Long-Term Performance for Your Vessel. Contact us now.

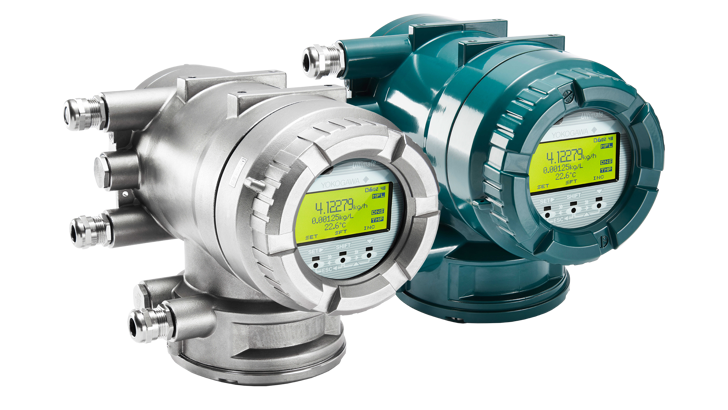

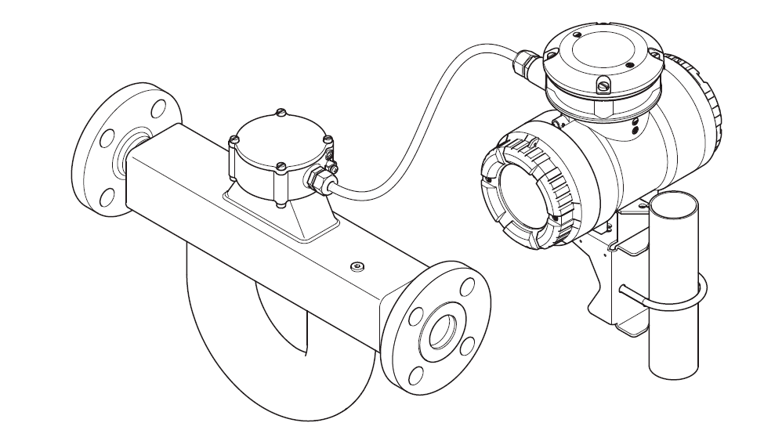

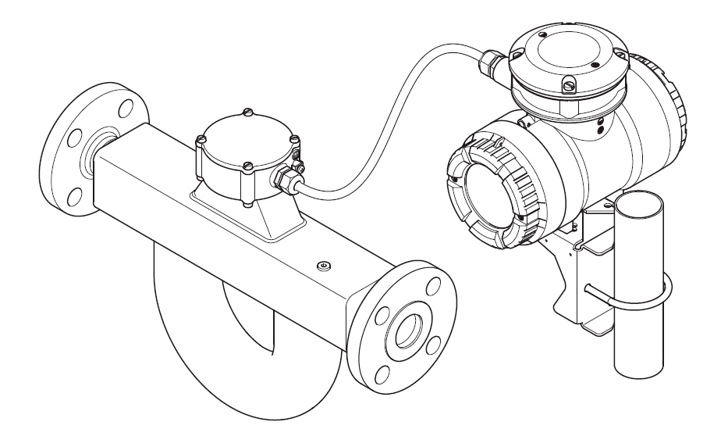

The ROTAMASS TI product family uses a common transmitter platform with two options that give you the highest flexibility.
The Essential transmitter is the cost effective solution for general applications.
The Ultimate transmitter provides various additional features to give you the best possible measurement, and is used for demanding & critical applications.
Optimizing fuel consumption and ensuring regulatory compliance requires more than just a meter - it requires a partner with deep maritime experience. Whether you need a technical consultation for a complex retrofit, a quote for a newbuilding project, or global service support, our specialists are ready to assist.
Our team of Sales Specialists
Tel.: +45 5537 2095
Email: quotes@insatech.com
The ROTAMASS TI is a high-performance Coriolis mass flow meter designed for direct mass, density, and temperature measurement. It is widely used in demanding industrial and marine applications where accuracy, reliability, and robustness are critical. The series features Yokogawa's patented box-in-box construction, advanced diagnostics, and DNV-GL approval.
A Coriolis meter measures mass flow based on the Coriolis effect. The sensor tubes are oscillated, and when fluid passes through them, a measurable phase shift occurs. This shift is directly proportional to the mass flow. The meter also determines density by measuring the energy required to maintain oscillation, providing both mass and volumetric flow without external compensation.
Key advantages include direct mass measurement, high accuracy across the entire flow range, vibration resistance due to the box-in-box system, no need for straight pipe runs, maintenance-free operation, and comprehensive self-diagnostics. The instrument is designed for long-term stability in harsh environments such as marine engine rooms.
The patented box-in-box construction isolates the sensor tubes from external stresses, pipeline misalignment, and vibration. This design reduces measurement drift, minimizes the need for zero-point adjustments, and ensures stable, accurate performance even in harsh marine and industrial environments.
Yes. The ROTAMASS TI is DNV-GL approved and extensively used in marine fuel consumption monitoring, bunker operations, transfer systems, and performance optimization solutions. Thousands of onboard installations validate its robustness and accuracy under shipboard conditions.
The Coriolis principle allows measurement of almost any liquid or gas. The ROTAMASS TI handles heavy fuel oils, MGO, MDO, LNG, solvents, process fluids, and lube oils. It operates effectively across broad temperature ranges and in applications requiring density or concentration measurement.
No. The ROTAMASS TI does not require straight inlet or outlet piping, making it ideal for retrofits and confined installations. The only installation requirements are correct orientation (horizontal or upward flow) and ensuring air-free media.
Extremely reliable. The box-in-box design and optional separate converter dramatically reduce the influence of vibration from engines, pumps, and piping. This makes the ROTAMASS TI one of the most dependable measurement solutions for ship engine rooms and other high-vibration settings.
The ROTAMASS TI has no moving parts, no filters, and no internal components subject to wear. Routine maintenance is negligible, and operational costs are significantly lower than volumetric meters that require filtration or frequent servicing.
Advanced diagnostics include self-monitoring of the sensor, tube integrity verification, total health check, event management, and comprehensive error signaling. These features help ensure measurement reliability and reduce the risk of undetected faults.
The Essential transmitter is designed for general applications, offering multilingual wizards, event management, data mobility via microSD, and broad I/O compatibility.
The Ultimate transmitter adds advanced features such as Tube Integrity verification, Total Health Check, Dynamic Pressure Compensation, inline concentration measurement, batching, viscosity functions, and API-compliant net oil computing.
The direct mass measurement eliminates temperature and density compensation errors, providing highly accurate, stable fuel flow data. This is essential for engine optimization, performance systems, and cost-efficient vessel operation.
Yes. The ROTAMASS TI is available in versions certified for safe and hazardous areas, making it suitable for a wide range of marine and industrial environments.
Key cost-saving contributors include low maintenance, elimination of pre-filters, reduced risk of measurement errors, simplified installation, and long instrument lifespan. The accurate data supports fuel optimization and operational efficiency programs.
Yes. The meter provides direct density measurement and supports inline concentration measurement. With the Ultimate transmitter, integrated net oil computation according to API standards is available.
Typical applications include fuel consumption measurement, bunker operations, fuel transfer, batching, product control, filling and dosing, gas void fraction detection, solvent measurement, mass balancing, and water cut measurement.
Yes. Insatech Marine offers complete installation, commissioning, troubleshooting, and service support. The team ensures correct setup and long-term reliable performance of the ROTAMASS TI on board your vessel.
At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.
By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.
We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.
Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!
| Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Mass flow | 170 t/h |
||||||||||||||||||
| Accuracy |
|
||||||||||||||||||
| Process temperature | -196 to +350 °C / -321 to +662 °F |
||||||||||||||||||
| Process pressure up to | 100 bar or 250 bar on demand / 1450 psi or 3626 psi on demand |
||||||||||||||||||
| Line sizes |
|
||||||||||||||||||

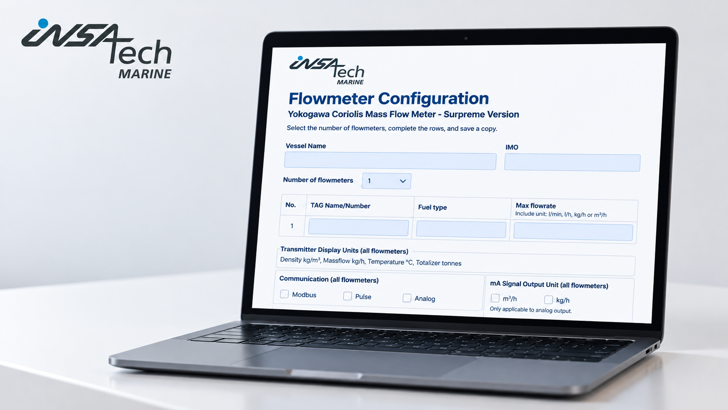

With Yokogawa's FlowConfigurator you can find and select the flow meter that best meets your specific needs and requirements. The FlowConfigurator allows you to generate your datasheet and save your sizing projects for later use.
