DP Series Insertion Impeller Meters

DP Series (DP490 and DP525) Insertion Impeller Meters

The DP Series Insertion Flowmeters from Flomec are cost-effective stainless-steel meters that measure the flow of water, fuels, and other low viscosity liquids.

More advantages:

IP68 (NEMA6) submersible 316SS construction (cable connection only)
Intrinsically safe option available
DP525 version suitable for “hot tap” installations
Quadrature pulse option available for bi-directional flow measurement option

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Get a quote

Flexible and Cost Effective

Insertion Meters are a flexible, economical method to measure large flow rates with small pressure drops and low installation costs, with most applications battery powered with a Flomec totalizer.

The Insertion Meter provides a cost effective and simple means of measuring the flow of a wide range of low viscosity liquids. Installation is quick and inexpensive for pipe diameters ranging from 40mm to 900mm (1.5-36") and up to 2500mm (100") nominal bore for the Hot tap capable model DP525.

Typical Applications

The DP Series Insertion Impeller Flowmeter is applicable to various settings including:

HVAC
Hot & Cold Water
Fire Systems
Water Distribution (Management & Treatment)
Boiler Feed Water
Wastewater
Hydrant Flow Testing

Does it match your need - contact us here

More Specifically

The Insertion Meter has a linear measuring range of 0.3~10.0 metres/sec. (1~33 ft/sec.) with a detectable flow velocity of minimum 0.15 m/sec. (0.5 ft/sec.).

The DS Series can be used in conjunction with the RT12 flow rate totaliser and with the NLC feature linear flow range is extended down to 0.15 m/sec. (0.5 ft/sec.) with an improved linearity.

As the Flowmeter is constructed from 316 L stainless steel it can be used for multiple applications within metering water and low viscosity chemicals.

Get more information here

Two Outputs

The DP Series Flowmeters are by default delivered with two independent pulse output as a standard.

Moreover, it can directly input to a wide range of ancillary instruments, PLC’s and computers.

Both pulse outputs have a high level of immunity to electrical interference; however, an option include a reed switch.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Technical Specifications
Suits Pipe Sizes	DP490: 1.5 - 35” (40-900 mm) DP525: 2 - 100” (50-2500 mm)
Pipe Connection	DP490: 1.5” or 2” BSPT or NPT male thread DP525: 2” BSPT or NPT male thread
Flow Velocity Range	3 - 33 ft/sec (1 -10 m/s)
Linearity % of Reading	Typically ± 1.5%
Temperature Range	-40˚F to 300˚F (-40˚C to 150˚C)
Pressure	Max 1160 psi (80 bar)
Materials	316SS body and rotor shaft
Protection Class	IP68 (NEMA 6), optional I.S (Instrinsically Safe) Intergral options
Pulse Outputs	Hall Effect: 3 wire open collector, 5-24v (dc), 20mA max. Nom 0-240Hz *Reed: 30v (dc), 200mA max. Nom 0 - 80Hz Voltage Pulse: Self Generated voltage, Nom 0 - 240Hz Non-Magnetic Sensor: 3 wire open collector, 5 - 24V (dc), 20mA max. Nom 0 - 240Hz Optional Outputs: 4-20mA, scaled pulse, quadrature pulse Reed Switch resolution is 1/3 of the NPN Hall Effect or Voltage Pulse outputs *Optional Integral option is required

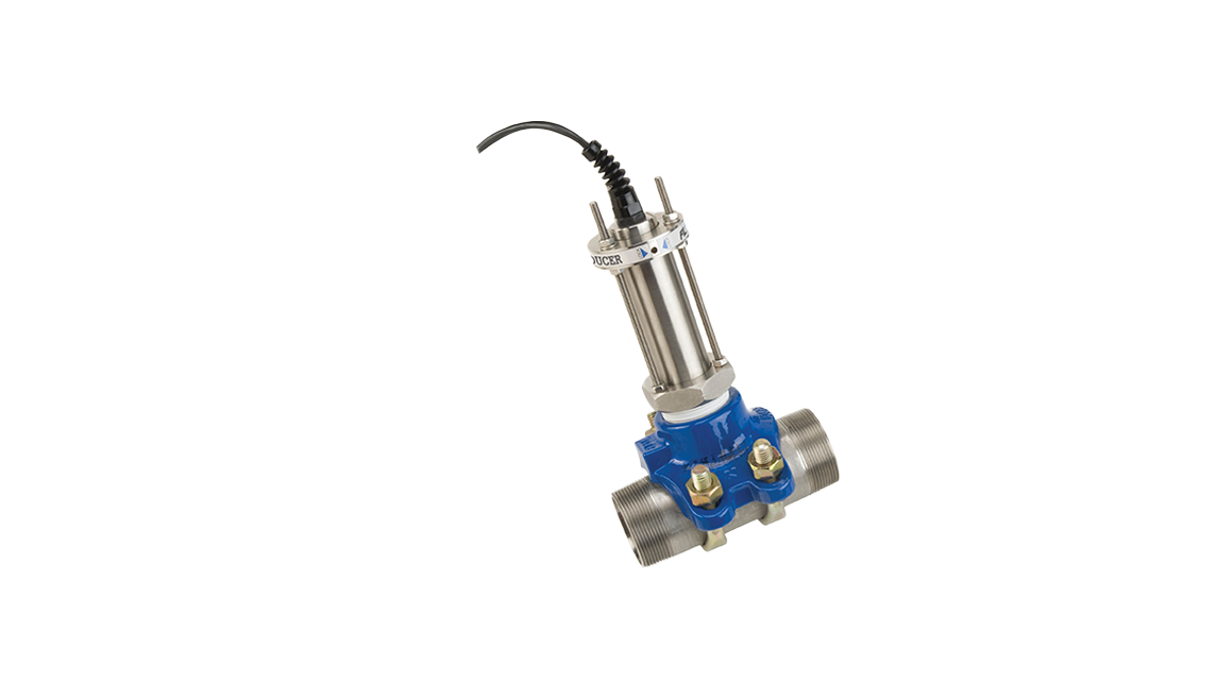

Flying Cable Option DP490	A- Thread: 1.5” or 2” BSP or NPT A - Dimension: 2.36” (60 mm) B: 7.8” (198 mm) C: 1.5” (38 mm) D: 9.33” (237 mm)
Flying Cable Option DP525	A- Thread: 2” BSP or NPT A - Dimension: 2.52” (64 mm) B: 17.48” (444 mm) C: 2.28” (58 mm) D: 16.69” (424 mm)

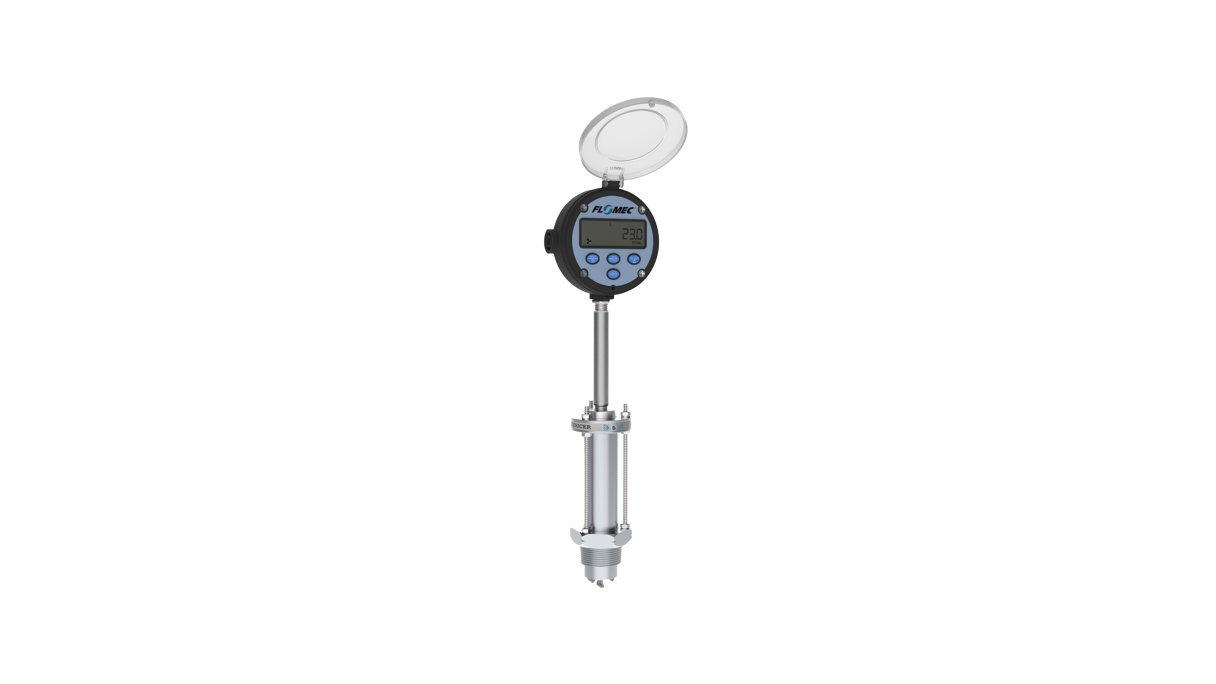

Integral Option DP490	A- Thread: 1.5” or 2” BSP or NPT A - Dimension: 2.36” (60 mm) B: 7.8” (198 mm) C: 1.5” (38 mm) D - RT12/RT14: 16.34” (415 mm) D - RT40: 14.96” (380 mm) D - F018/F115: 16.26” (413 mm) E - RT12/RT14: 0.47” (122 mm) E - RT40: 4.45” (113 mm) E - F018/F115: 5.12” (130 mm) F - RT12/RT14: 2.40” (61 mm) F - RT40: 2.48” (63 mm) F - F018/F115: 2.95” (75 mm)
Integral Option DP525	A- Thread: 2” BSP or NPT A - Dimension: 2.52” (64 mm) B: 17.48” (444 mm) C: 2.28” (58 mm) D - RT12/RT14: 35.43 in (900 mm) D - RT40: 34.06” (865 mm) D - F018/F115: 35.35” (898 mm) E - RT12/RT14: 0.47” (122 mm) E - RT40: 4.45” (113 mm) E - F018/F115: 5.12” (130 mm) F - RT12/RT14: 2.40” (61 mm) F - RT40: 2.48” (63 mm) F - F018/F115: 2.95” (75 mm)

Model/ Type
Product Identifier	DP: Insertion Meter
Meter Size	490: 1.5 to 36” (40-900 mm) 525: 2 to 100” (50-2500 mm) suitable for “hot-tap” installations (valve not included)
Body material	S: 316 Stainless Steel
Rotor/shaft materials	2: PVDF/316 stainless steel (260ºF [120ºC]) 3: PEEK/tungsten carbide (300ºF [150ºC])
O-ring material	1: Viton™ 5ºF to + 300ºF (-15ºC - + 150ºC) 4: Buna-N (Nitrile), -40ºF to + 260ºF (-40ºC to + 125ºC)
Maximum temperature limit	2: 260º F (125º C) max. (available with electrical connections 5 & 6) 3: 300º F (150º C) max. (only available with rotor/shaft type 3, electrical connection type 5, & Viton O-Ring) 5: 212º F (100º C) max. (standard temperature rating) 8: 176º F (80º C) max. (for non-magnetic pick-up type 4)
Process connections	1: 1-1/2” BSPT male thread (Not available on DP525) 2: 1-1/2” NPT male thread (Not available on DP525) 3: 2” BSPT male thread 4: 2” NPT male thread
Pick-up type	1: NPN open collector & voltage pulse (standard) 2: NPN open collector only 3: Reed switch only (may be used with an I.S. barrier or instrument in hazardous areas) 9: Quadrature pulse output (requires F15 option for bi-directional flow capability)
Electrical connections	C: Flying cable (5 ft [1.5 m] on DP490, 3 ft [1 m] on DP525) 2: Flying cable – 33 ft (10 m) 5: Terminal box on stem kit – IP67 6: Stem kit ⅜” NPT x M16 thread (required for integral instruments)
Integral options	R3: Intrinsically Safe RT12 with all outputs (GRN housing) [IECEx & ATEX approved] R3G: RT12 Intrinsically Safe rate totalizer with all outputs (GRN Housing) [IECEx & ATEX approved] (with gallons calibration)# R4:* RT40 backlit rate totalizer (Alloy housing with facia protector) [scalable pulse output, backlight] R4G: RT40 rate totalizer with backlit large digit LCD (Alloy housings with facia) (with gallons calibration)# R5:* RT14 backlit rate totalizer with all outputs (GRN housing) [scaled pulse, alarms, 4-20mA, backlight] R5G: RT14 backlit rate totalizer with all outputs (GRN Housing) (with gallons calibration)# F15:* F115 backlit bi-direction flow, rate/tot, pulse out, 4-20mA F18: F018 backlit rate/tot, pulse out, 4-20mA, 10 pt lin,HART F19: F018 Intrinsically Safe backlit rate/tot, pulse out, 4-20mA,10 pt lin, HART^ * Temp code 5 required when operating temperature is between 176º F (80º C) & 250º F (120º C) # Temp code 8 required for all integral instruments ^Must use pick-up type 3

Specifications & Manuals

Data Sheet - DP series insertion imeller meters - Flomec
English | pdf

Download
Manual - DP series insertion imeller meters - Flomec
English | pdf

Download
Installation guide - DP series insertion impeller meters - Flomec
English | pdf

Download
