FCS Consumption Kit for Use on Land
The Fuel consumption System (FCS) from Flomec is a complete fuel monitoring system that gives you an accurate measurement of fuel consumption rates and total fuel consumption.
The kit includes:
For sales or commercial inquiries please contact us at marine@insatech.com.
| The features and benefits | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

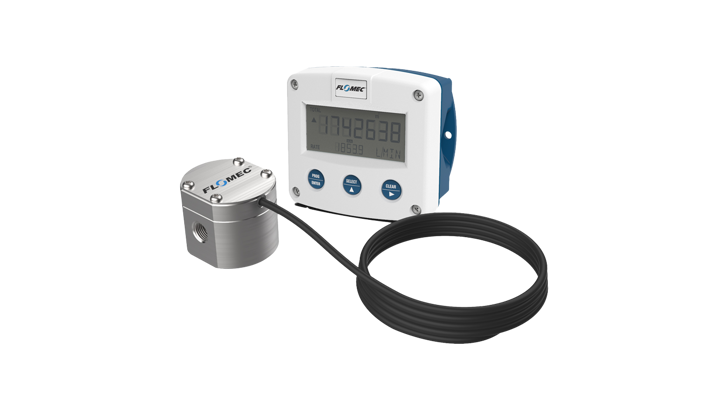

| EGM Flowmeter | Flow Rates: 0.50 GPH – 21.1 GPM (2 L/hr – 80 L/min) Sizes: 1/4″ – 3/4″ (6 mm – 20 mm) Engine Power: 7.5HP – 5000HP (Contact us for larger engines) Temperature Range: -40°F – +176°F (-40°C – +80°C) Body Material: Stainless Steel 316 Rotor Material: PPS (Stainless Steel 316 for EGM006 meters) Cable Length: 2 meters (can be extended by using cable connector) Read more about the EGM Flowmeter here. |
||||||||||||||||||
| F127 Totalizer | Casing: Robust IP66/IP67 field enclosure Display: 7-digit resettable total, 11-digit accumulated total with backlight Required Power Supply: 8 – 24V (dc) (in case of power failure the backup power supply is built in to save settings) Temperature Limit: -40°F – +176°F (-40°C – +80°C) Output Options: 4-20mA and pulse output available |
||||||||||||||||||
As the Fuel Consumptions Systems comprises two EGM positive displacement meters and an F127 flow instrument it can accurately measure fuel consumption of combustion engines. This is possible, as the FCS can correct the temperature differences from the inlet to the outlet of the engine.
The renowned positive displacement meters give you an accurate and economic way of measuring you fuel consumption for all engines sizes. This is possible because of the:
To reach this high accuracy the kit selection is crucial.
The Fuel Consumption Kit might consist of the same items. However, the size of the engine is important as is in direct correlation with the rate of the flow that determines the change of the meter and the process connection.
This becomes apparent, as the average diesel loop system would have 3,5 times more fuel in its line than what the engine consumes at full load.
Selecting the correct kit based on the engine’s power output is, therefore, essential to secure accuracy and the durability of the positive displacement meter.

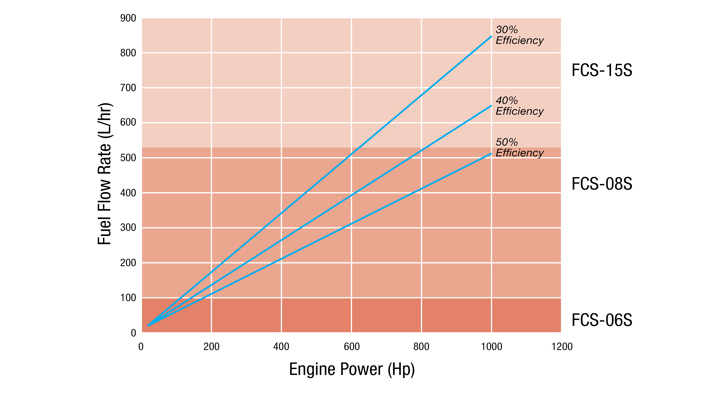

The graph here can guide you in determining the required size of the kit for you.
| Accessories | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F-Series Wall Mount Kit: | Stainless Steel wall mount kit for F127 totalizer, screws included
|
||||||||||||||||||
| F-Series Pipe Mount Kit: | Stainless Steel wall pipe kit for F127 totalizer, excludes worm clamps |
||||||||||||||||||
| Worm Clamp Kit 1.0-1.57"(25-40 mm): | Includes 2pcs of stainless steel worm clamps and pipe. OD from 1.0-1.57"(25-40 mm) |
||||||||||||||||||
| Worm Clamp Kit 1.81-2.76"(46-70 mm): | Includes 2pcs of stainless steel worm clamps and pipe. OD from 1.81-2.76"(46-70 mm) |
||||||||||||||||||
| M16 Cable Gland: | Includes cable gland, locking nut and o-ring |
||||||||||||||||||
| M20 Cable Gland: | Includes cable gland, locking nut and o-ring |
||||||||||||||||||
| Cable Connector: | 7-Pin IP67 Polyamide connector kit |
||||||||||||||||||
The Oval Gear Meters use a measuring principle, where a pair of oval-shaped gears in a measuring chamber rotate by the force of the liquid on these. The liquid flows into a chamber and is sealed off once the chamber is full and produces either an electronic pulse or drives a gear to register the volume as it exits the chamber.
As illustrated in the example on the right, the pulse is generated because the (green) liquid is sealed from both the inlet (red liquid) and exit (blue liquid). This set up would produce four pulses as the meter transmits four identical volumes for every cycle.
Thus, it matters which Flowmeter you choose because the simplest meters register each time a bucket is filled. Here the total volume would be the sum of the number of buckets filled. In the complex meters the discrete volumes passed each time can be summed together to see the overall volume passing through the meter.
| EGM flowmeter Technical Specifications | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Normal Size | 1/8"(4 mm) - 3/4" (20 mm) |
||||||||||||||||||
| Flow range | Norminal Flow Range* @ 3cP: 0.26 GPH(1.0 L/hr) - 145 GPH(550 L/hr) Flow Range @ 1cP: 0.25 GPH(2 L/hr) - 116.24 GPH(440 L/hr) Flow Range @ 7cP: 0.13 GPH(0.5 L/hr) - 145.29 GPH(550 L/hr) Flow Range @ 200cP: 0.10 GPH(0.4 L/hr) - 145.29 GPH(550 L/hr) Flow Range @ 500cP: 0.06 GPH(0.25 L/hr) - 145.29 GPH(550 L/hr) Flow Range @ 1000cP: 0,03 GPH(0.12 L/hr) - 95.10 GPH(360 L/hr) |
||||||||||||||||||
| Accuracy+ | ± 1% of reading (on the EGM004, EGM006 and EGM008) and ± 0.5 of reading (on the EGM015 and EGM020) |
||||||||||||||||||
| Repeatability | Typically ± 0.03% of reading |
||||||||||||||||||
| Ambient Temperature Range | 5° F to +176° F (-15° C to +80° C) |
||||||||||||||||||
| Fluid Temperature Range | 23˚F to +176˚F (-5˚C to +80˚C) |
||||||||||||||||||
| Max. Pressure (AI meters) | 290 psi (20 bar) - 500 psi (34 bar) |
||||||||||||||||||
| Max. Pressure (SS meters) | 290 psi(20 bar) - 800 psi (55 bar) |
||||||||||||||||||
| Protection Class | IP65 |
||||||||||||||||||
| Recommended Filtration | 200 mesh [75 μm] - 100 mesh [150 μm] |
||||||||||||||||||
| Pulse Output Type | NPN Open Collector (Hall Effect Sensor) |
||||||||||||||||||
| Voltage | 5 - 24 V (dc) |
||||||||||||||||||
| Current Draw | 20mA max. |
||||||||||||||||||
| Switching Current | 10mA max. |
||||||||||||||||||
| Pulse Output Resolution - Standard Pulse/USG [Pulse/L] | 398 [105] - 10600 [2800] |
||||||||||||||||||
| Pulse Output Resolution - Fuel Cons. Option Pulse/USG [Pulse/L] | 99.5 [26.3] - 10600 [2800] |
||||||||||||||||||
| RTD Specification (Integral Option 2) | Platinum Resistance Thermometer 100 Ohms (PT100) Class F0.3 |
||||||||||||||||||
| Notes | *Maximum flow reduces as viscosity increases, see flow de-rating guide.
|
||||||||||||||||||
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aluminium BSP Fuel Consumption Systems - For use on generators or transportation | FCS-06AB: 1/4" (6mm), BSPP (ISO 228). Includes: 2 x flow meters (EGM006A511-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4976. FCS-08AB: 3/8" (8mm), BSPP (ISO 228). Includes: 2 x flow meters (EGM008A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4815. FCS-15AB: 1/2" (15mm), BSPP (ISO 228). Includes: 2 x flow meters (EGM015A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers, mounting brackets 5243. FCS-20AB: 3/4" (20mm), BSPP (ISO 228). Includes: 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets. |
||||||||||||||||||
| Aluminium NPT Fuel Consumption Systems - For use on generators or transportation | FCS-06AN: 1/4" (6mm), NPT. Includes: 2 x flow meters (EGM006A511-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4976. FCS-08AN: 3/8" (8mm), NPT. Includes: 2 x flow meters (EGM008A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets 4815. FCS-15AN: 1/2" (15mm), NPT. Includes: 2 x flow meters (EGM015A001-812), 1 x F127 temperature corrected totaliser, 2 x Y-strainers, mounting brackets 5243. FCS-20AN: 3/4" (20mm), NPT. Includes: 1 x F127 temperature corrected totaliser, 2 x Y-strainers and mounting brackets. |
||||||||||||||||||
