High-Temperature Precision Turbine Meters

High-Temperature Precision Turbine Meters (G Series)

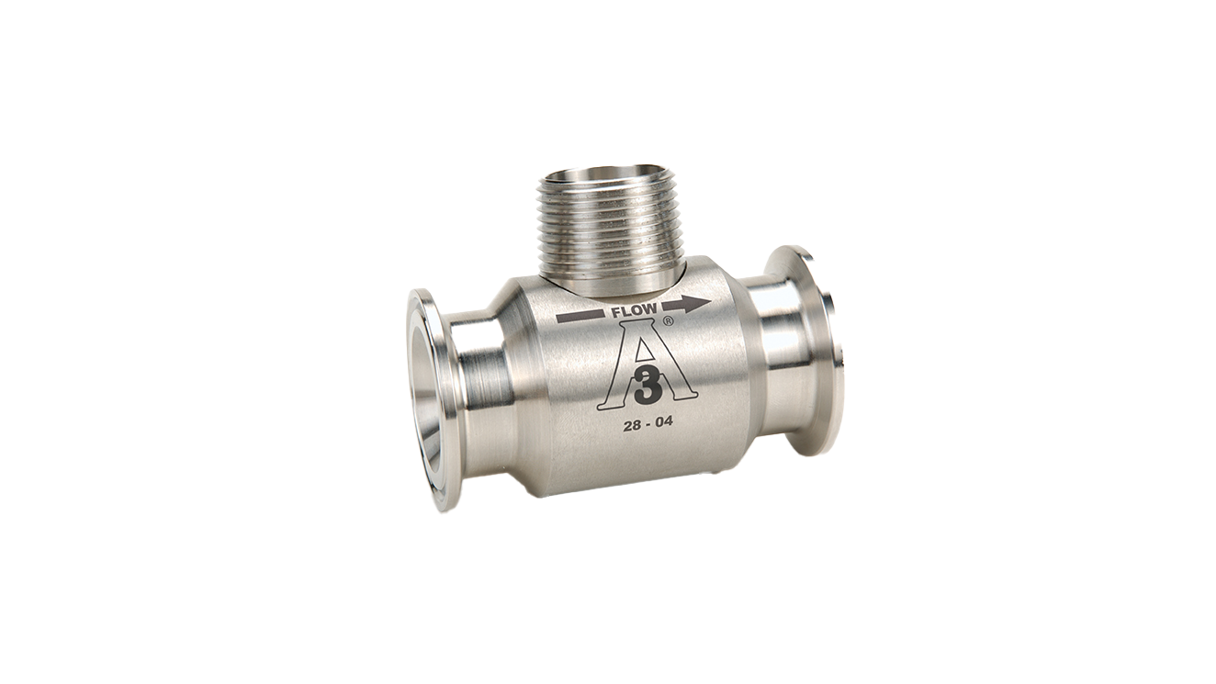

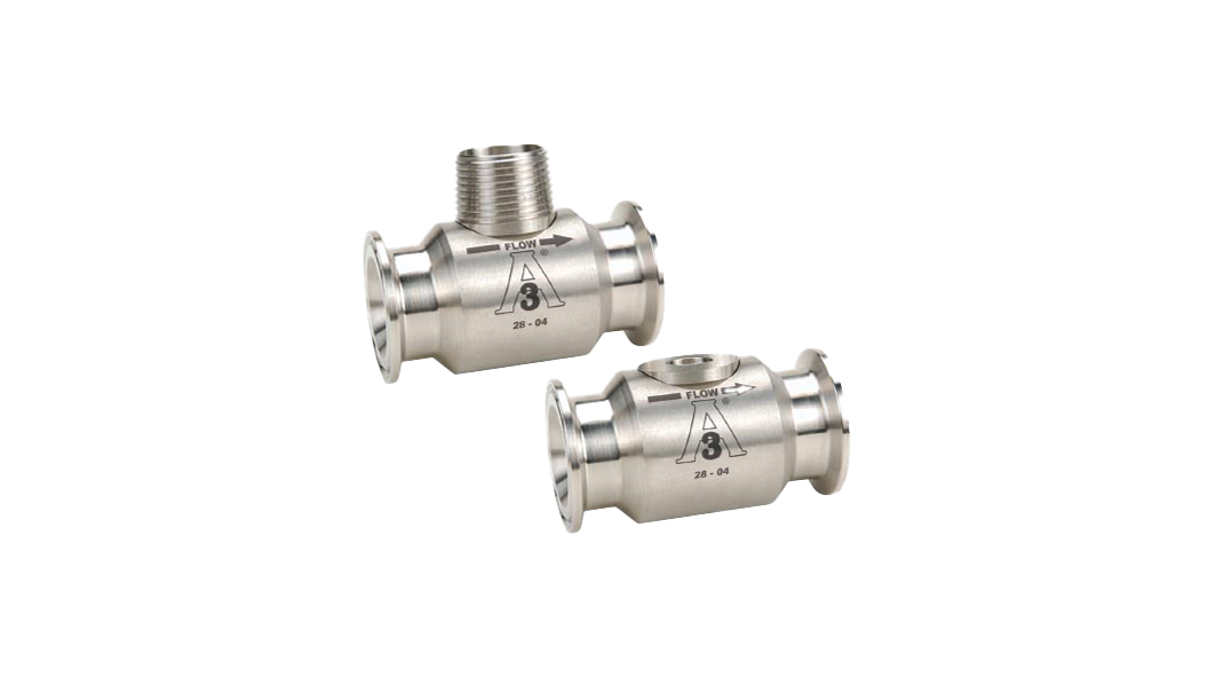

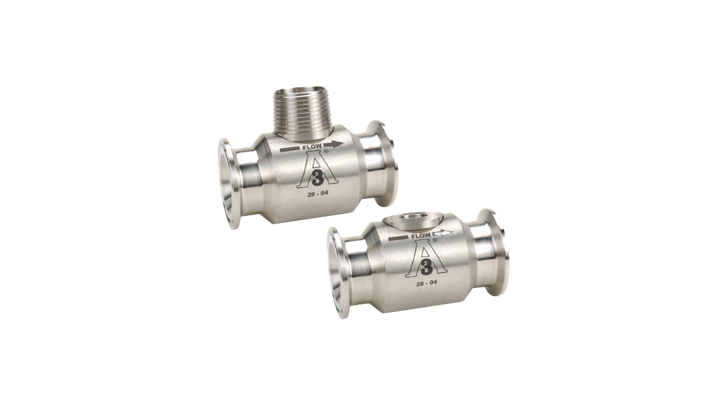

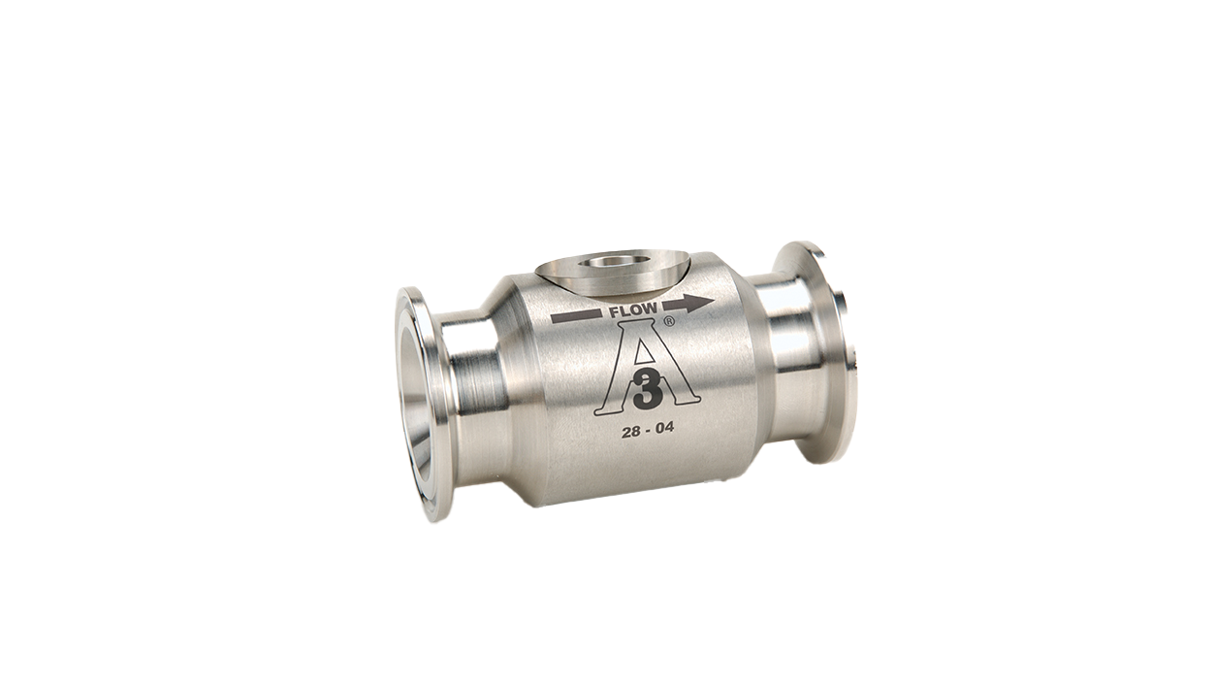

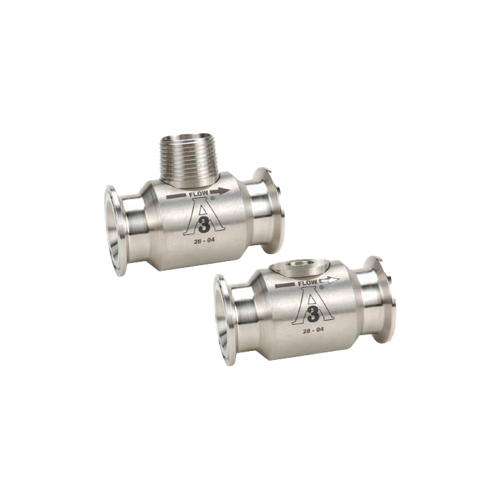

The G Series High Precision Meter is the most accurate of all Turbine Meters from Flomec. The G Series are volumetric flow measurement devices that are highly cost-efficient for low viscous liquids of up to 100 cSt.

More advantages:

Traditional design
Available in a variety of sizes
Low Profile option available

For sales or commercial inquiries please contact us at marine@insatech.com.

Typical Applications

The G Series Turbine flowmeters can be utilized for:

Fuel
Process Control
Batching
Chemical Feed Lines
Food & Beverage
Irrigation
Petro Chemicals
High Water Volume Mixing
Pharmaceuticals
High Precision / High Pressure
Thin Viscosity Fluids Under 100 Centipoise.

Does it match your need - contact us here

Choose the right turbine model

The G Series Sanitary Turbine flowmeters are volumetric flow measurement devices. A rotor is suspended in the flow stream of the meter, so the moving fluid is used to turn the rotor.

The blades start spinning on the rotor and as the pass the magnetic sensor an AC voltage pulse is generated and transmitted to the readout instrument.

This means that each pulse is equal to a given volume of liquid. Thus, the number of pulses are equal to a gallon, litre, pound, barrel, etc.

The turbine is a precision measuring instrument, but for this work optimal you have to make sure that the turbine model meets your particular requirements. Look into the following three parameters, that;

The flowrate is within the limits of your model
The liquid is compatible with the turbine’s wetted components
The system’s pressure does not exceed the turbine’s maximum pressure rating.

See all Turbine Meters here

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com

Technical Specifications
Meter Sizes Available	For GSCPS 1” (100) 1-1/2” (150) 2” (200)
Flow range	6,7 GPM(25 L/min) - 330 GPM(1250 L/min)
Accuracy (Linearity)	± 0.5%
Repeatability	± 0.1%
Pressure Rating	Limited by fitting size, clamp size and temperature.
Operating Temperature Range	For GSCPS: -100° F to 225° F (-74° C to 107° C) For SIP (up to 1 hour): 285° F (140° C)
Typical K-Factor	1” (100): 896 PPG (237 Pulses/L) 1-1/2”(150): 340 PPG (90 Pulses/L) 2” (200): 181 PPG (48 Pulses/L)
Wetted Materials	Housing: 316 Stainless Steel Bushings & Bearings: PEEK Shaft: 316 Stainless Steel Rotor: CD4MCu Stainless Steel Rotor Supports: 316 Stainless Steel Retaining Rings: 300 Series Stainless Steel
Recommended Strainer Size	1”: 40 mesh (420 μm) 1-1/2”: 18 mesh (1000 μm) 2”: 14 mesh (1410 μm)
Frequency Output	100 - 1000 Hz
Calibration Report	Comes standard with G Series meters. N.I.S.T. – Certification available.

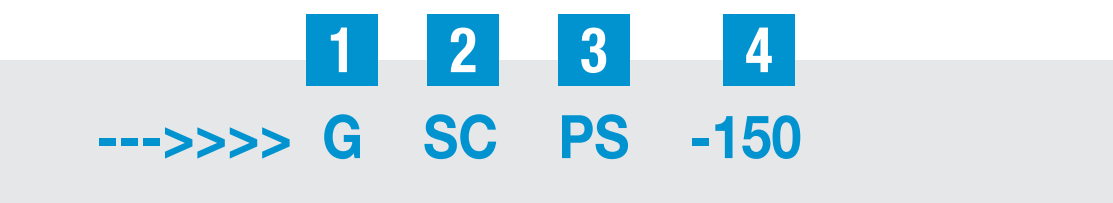

Model/ Type
Product Identifier	G: G Series Precision Turbine Meters
Fitting Type	SC: Sanitary Clamp
Shaft/ Sleeve Bearing/ Thrust Bearing	100: Sanitary Turbine HT 1 in., 1-1/2 in. Clamp (with 3A Certification) 150: Sanitary Turbine HT 1-1/2 in., 1-1/2 in. Clamp (with 3A Certification) 200: Sanitary Turbine HT 2 in., 2 in. Clamp (with 3A Certification) 100L: Sanitary Turbine HT 1 in., 1-1/2 in. Clamp - Low Profile Adapter (w/ 3A Certification) 150L: Sanitary Turbine HT 1-1/2 in., 1-1/2 in. Clamp - Low Profile Adapter (w/ 3A Certification) 200L: Sanitary Turbine HT 2 in., 2 in. Clamp - Low Profile Adapter (with 3A Certification)
Sensor Choice	blank: No Sensor - Turbine Body Only No Charge 2: Standard sensor with 300mm lead wires 307 3: IECEx/ATEX Intrinsically Safe 883 6: Digital (Di-Mag) 5-32VDC, pull-up to 10VDC max (note 3)
Electronic Choice (Local)	blank: No Electronics - Turbine Body Only R4: RT40 backlit rate totaliser in Aluminium housing (note 1 and requires external DC Power) R5: RT14 backlit rate totaliser with 4-20mA and pulse outputs, in GRN housing (note 1) R6: RT14 IECEx/ATEX Intrinsically Safe rate totaliser with 4-20mA and pulse outputs, in GRN housing (note 2) R7: RT40 backlit rate totaliser in GRN housing (note 1 and requires external DC Power)
Notes	Note 1. Requires sensor choice 2 Note 2. Requires sensor choice 3 Note 3. Requires 3-pin connector and cable to be purchased separately
