F-Series Field Mount Indicator

The Field Mount Indicator in the F Series from Flomec is a batch controller model. The F130-P is a microprocessor driven instrument designed for batching and filling from small up to large quantities. Additionally, it display the flow rate, the total and the accumulated total.

With the F-series you get:

  • Field-mountable with back enclosure (included)
  • Easy programming with a sensible menu-driven structure
  • Large 0.67 in. (17mm) 7 digit display
  • Accepts several different input signals.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Application Possibilities

The F-series are designed to work even in rough weather conditions like rain, snow, salty atmospheres and temperatures between -40° F up to 176° F (-40° C up to 80° C). Thus, the F103-P is perfect for safe and hazardous area applications.

Hence, the field mount indicator can be used;

  • Where net flow calculation at base conditions is desired without the influence of thermal product expansion.
  • Where a precise calculation over the full measurement range is required for the liquid flow measurement with mechanical flowmeters. As well as, where continuous flow rate monitoring is required.
  • For batching small up to very large quantities. Single or repeating batches.
  • Fuel consumption calculation for diesel engines on board of ships or trains.

So, the F103-P is applicable, where flows are split-up in two pipelines and total flow has to be calculated.

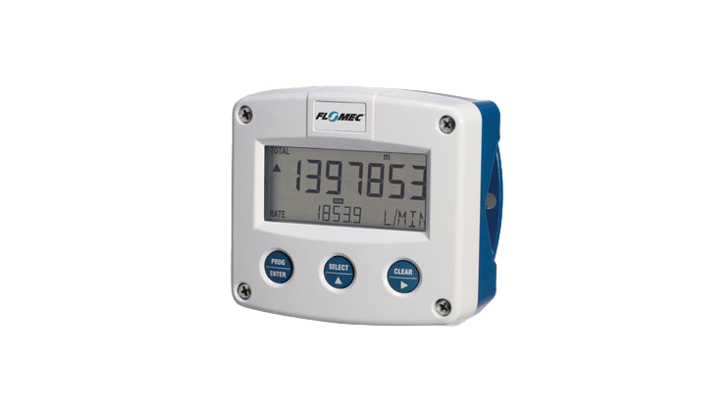

F Series Flomec 1024X16x9

What you get from the F-series

The F130-P has the following features that benefits you:

  • Batching
  • Net Use
  • 4-20mA Output
  • HART Protocol
  • High Low Alarms
  • Linearization
  • Two Stage Valve Control
  • Temperature Compensation.

Does it match your need - contact us here

Long-Life and Intrinsic safety

The Field Mount Indicator from the F-series has been designed with a focus on:

  • Ultra-low power consumption to allow long-life battery powered applications (type PB/PC)
  • Intrinsic safety for use in hazardous applications (type XI)
  • Several mounting possibilities with aluminum or GRP enclosures for harsh industrial surroundings
  • Ability to process all types of flowmeter signals
  • Receipt printer interface to print completed batch receipts.

Get more information here

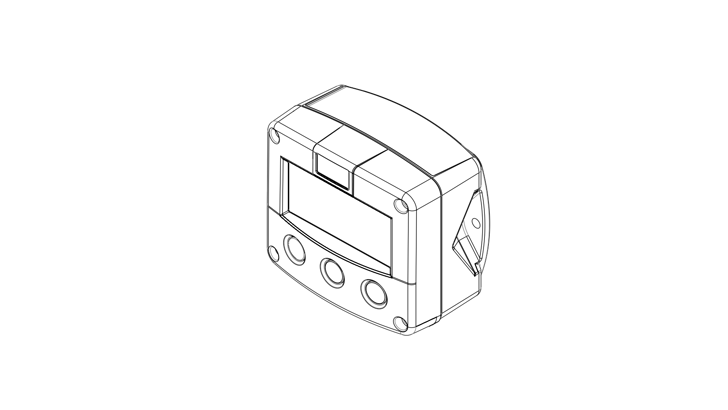

F Series Flomec 1 1024X16x9
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com


Contact us now

See owners Manual under Downloads


  • Owners Manual - F-Series - Flomec
    English | pdf

Didn't you find what you were looking for?

If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
