VEGAPULS 69 Instrument

Touchless radar level measurement lens antenna. Designed for continuous level measurement of solids under difficult conditions.

Measuring range up to 120 m and process temperature between -40 ... + 200 ° C.

For sales or commercial inquiries please contact us at marine@insatech.com.

Contact us now

Accurate level measurement

  • Level measurement of solids in all industries (DC value> 1.2).
  • Accuracy ± 5 mm.

Especially suitable for example:

  • Power plants: coal, lime, fly ash
  • Building materials: clinker, cement, sand, lime, stone, gravel
  • Food industry: cereals, flour, rice, sugar, milk powder
  • Chemical industry: plastics, powders, fertilizers, chemicals

Suitable for measuring under difficult conditions

  • Good focusing ability, 4 ° spread.
  • Good response time, <1s.
  • Independent of varying gas concentrations and different gases.
  • Unaffected by noise and strong air turbulence.

Easy to commission and service

  • Can be mounted and adjusted without having to fill or empty the container.
  • Easy setting with display, PC software or HART® terminal.

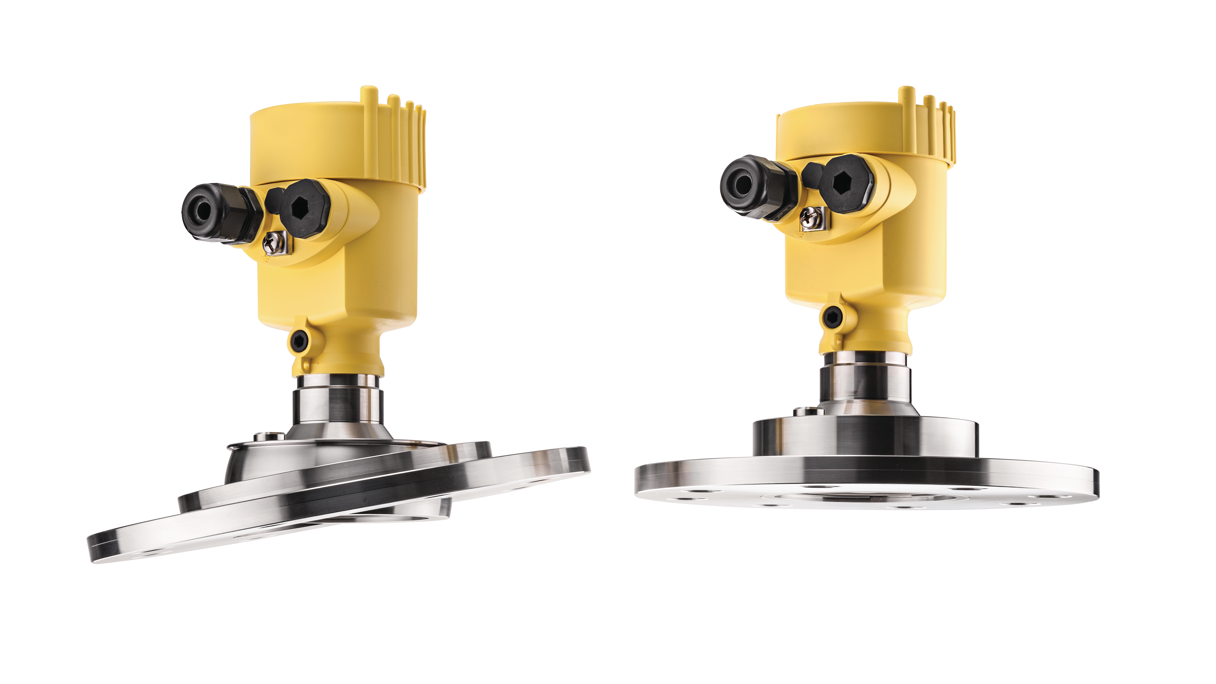

Insatech Group VEGAPULS 69
Insatech VEGAPULS 69 1

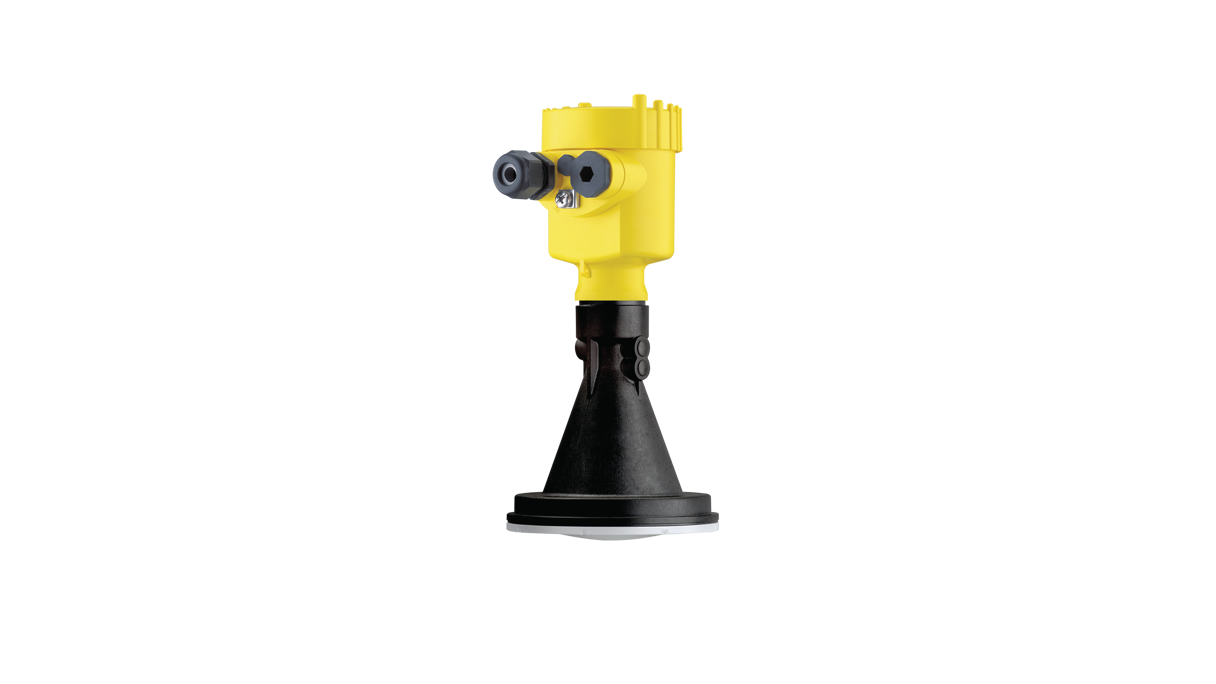

Insatech VEGAPULS 69 2

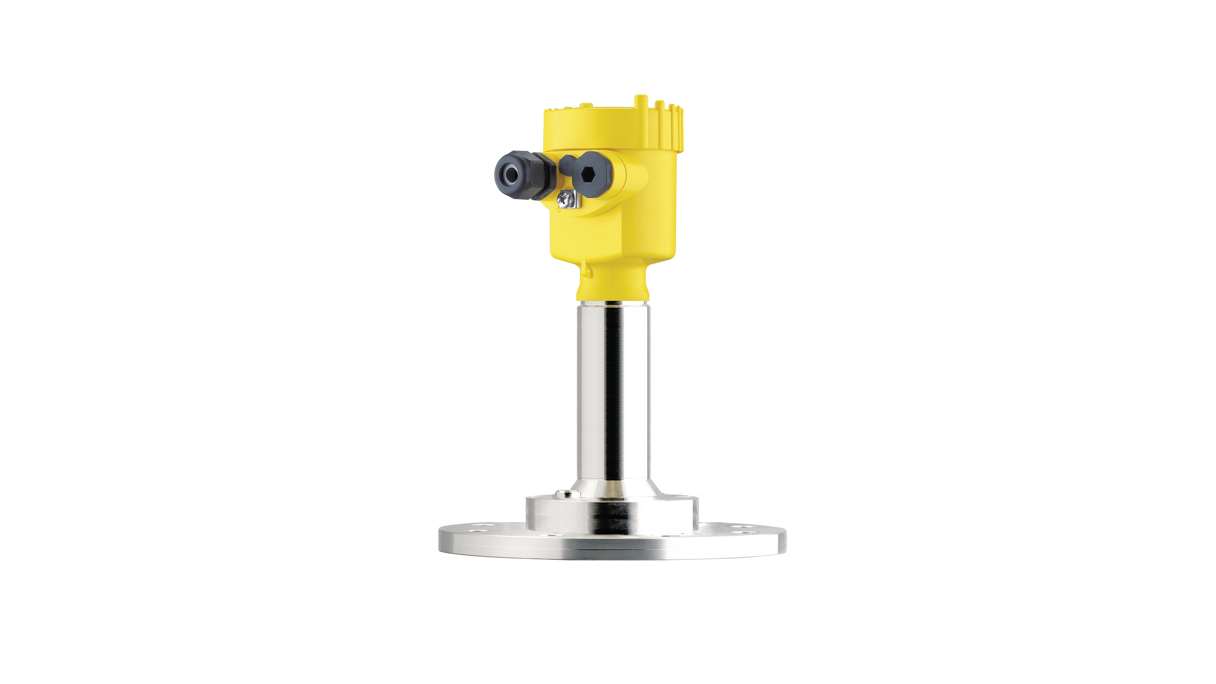

Insatech VEGAPULS 69 3
Insatech Group VEGAPULS 69
Insatech VEGAPULS 69 1
Insatech VEGAPULS 69 2
Insatech VEGAPULS 69 3
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut

Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

120 m
Process temperature

-40 ... 200 °C
Process pressure

-1 ... 20 bar
Accuracy

± 5 mm
Frequency

80 GHz
Beam angle

≥ 3,5°
Output
  • 4 … 20 mA/HART - four wire
  • 4 … 20 mA/HART - two wire
  • Modbus
  • Foundation Fieldbus
  • Profibus PA
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Ambient temperature

-40 ... 80 °C

Specifications & Manuals

  • Manual - VEGAPULS 69 - 4...20 mA HART two-wire
    English | pdf
  • Technical Specifications - VEGAPULS 69 - 4...20 mA HART two-wire
    English | pdf
  • Product Information VEGAPULS 67, SR 68, 68, 69 Bulk solids
    English | pdf
