VEGAPULS 66

Touch-free radar level measurement with horn antenna or fixed 2 ”standpipe. Suitable for continuous level measurement including in the chemical and petrochemical industries.

Measuring range up to 35 m and process temperature between -60 ... + 400 °C.

For sales or commercial inquiries please contact us at marine@insatech.com.

contact us now

Accurate level measurement

  • Level measurement of liquids and solids in all industries (DC value> 2).
  • Accuracy ± 8 mm.
  • Used in process plants with e.g. biogas, cellulose, water, wastewater, reactor, gasoline and oil.
  • All types of storage and process tanks with high temperatures.
  • Measurement is unaffected by process pressure, temperature and gases.

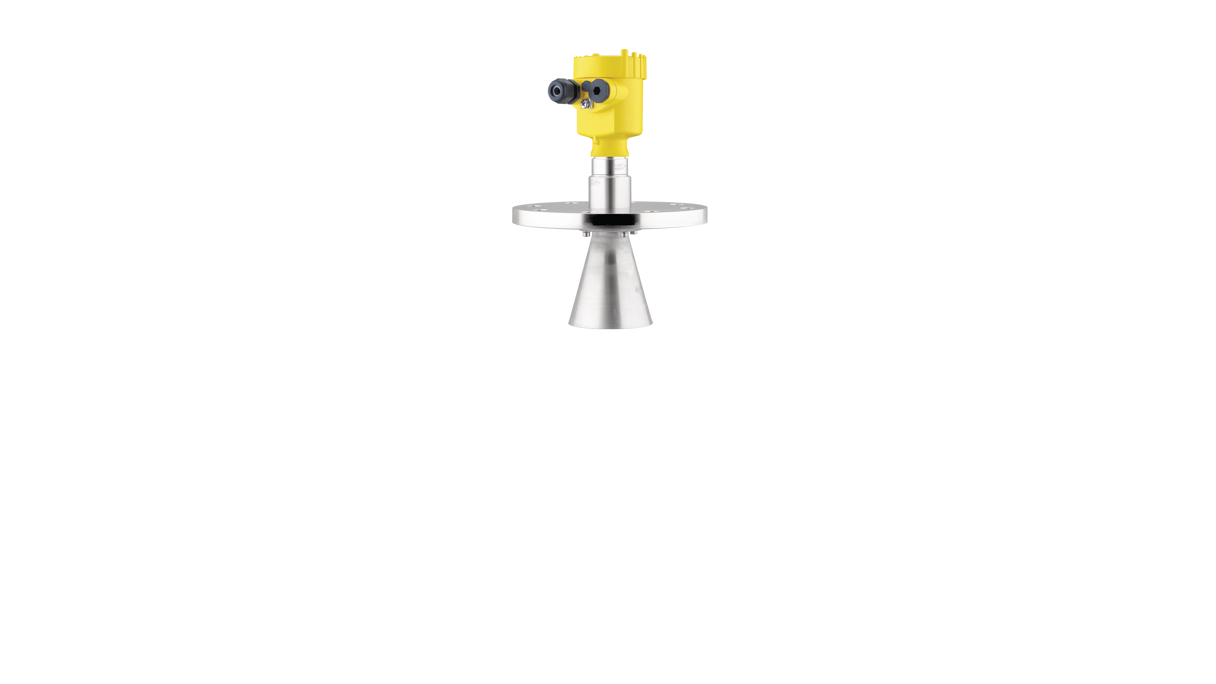

Insatech VEGAPULS 66 2

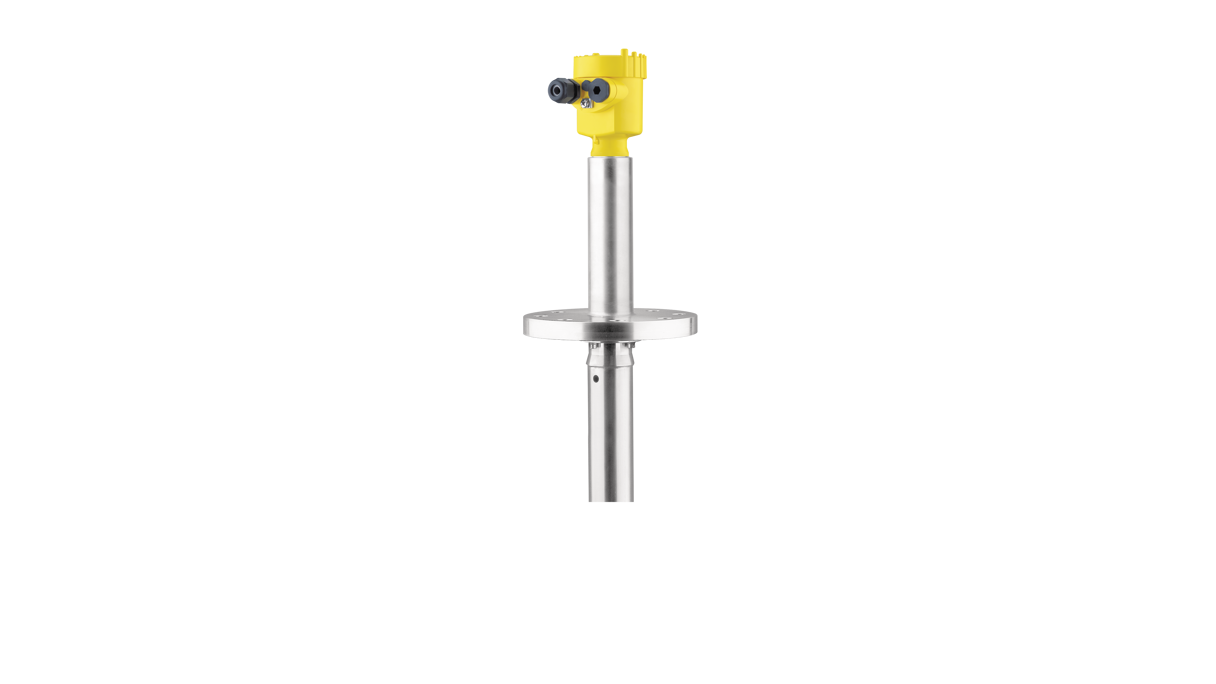

Insatech VEGAPULS 66 3

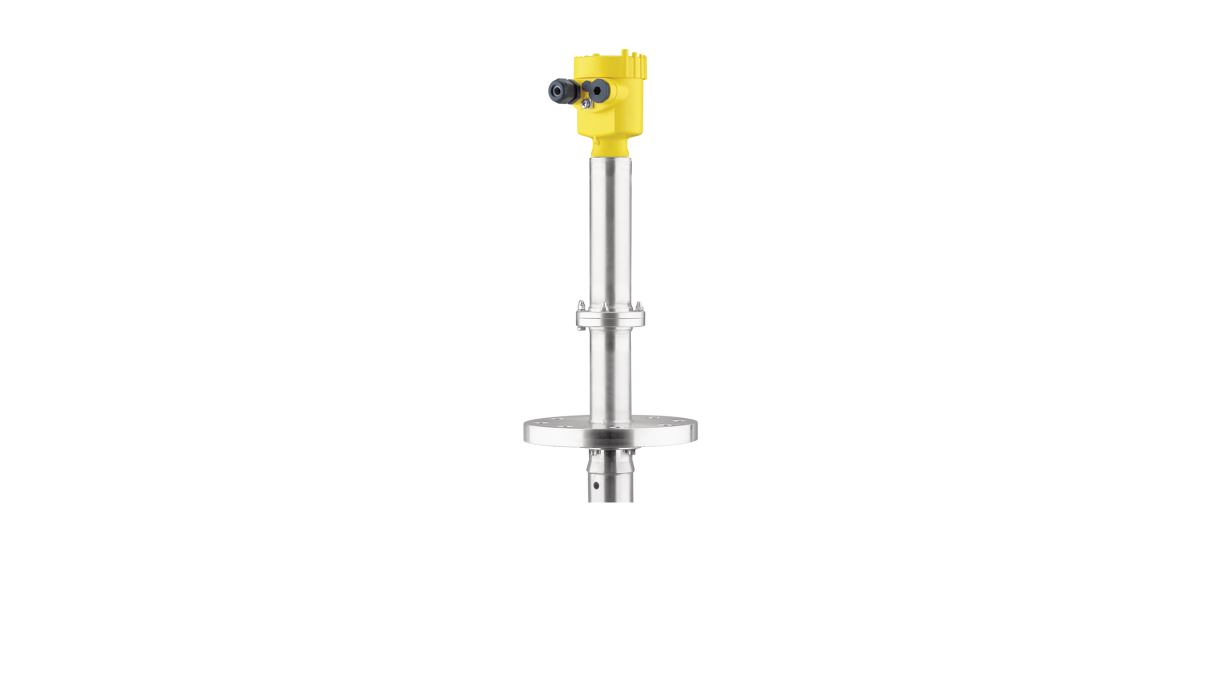

Insatech VEGAPULS 66 4

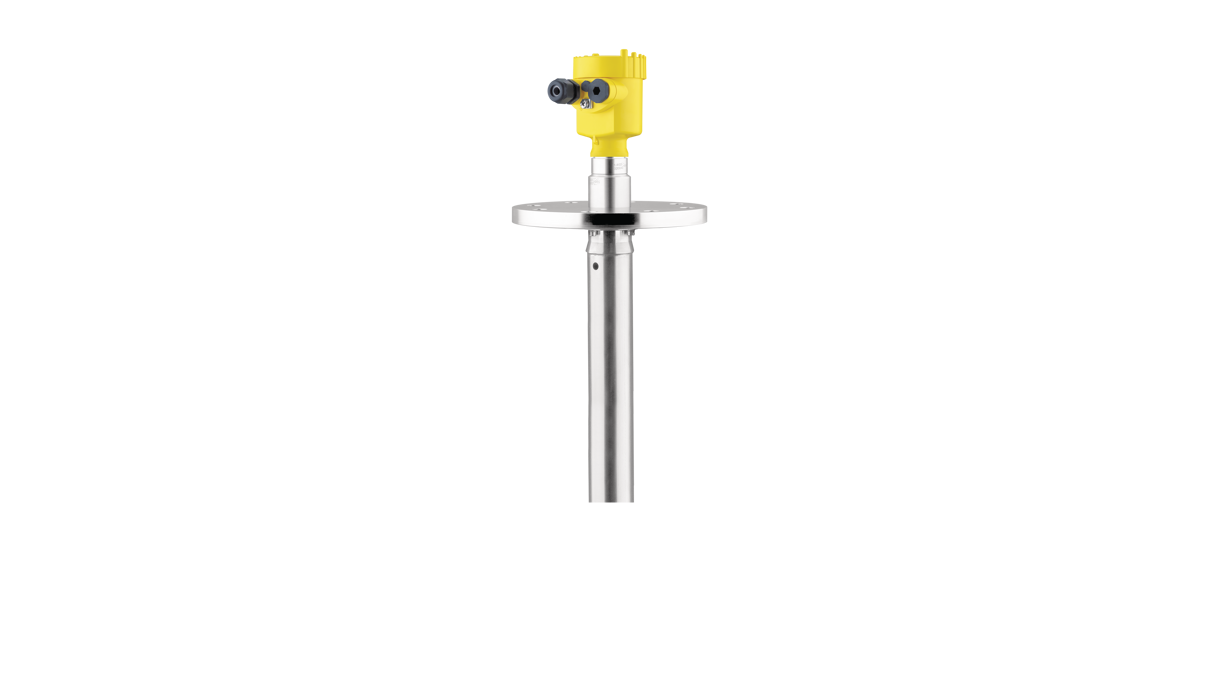

Insatech VEGAPULS 66 5

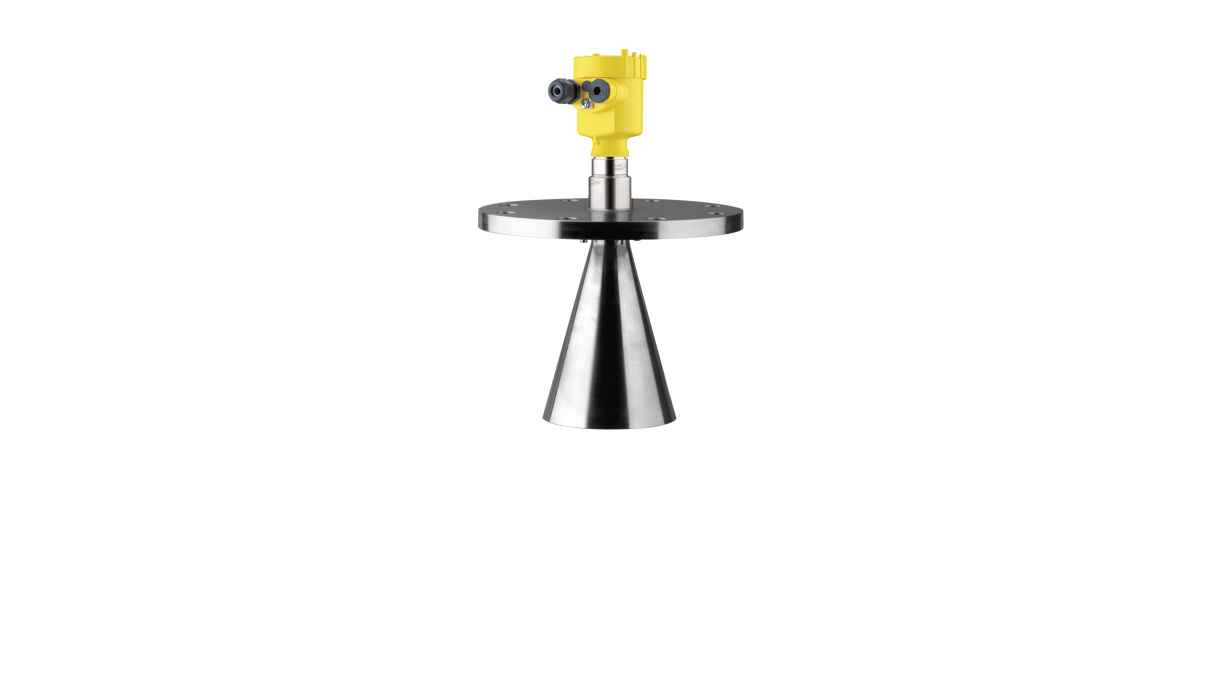

Insatech VEGAPULS 66 6

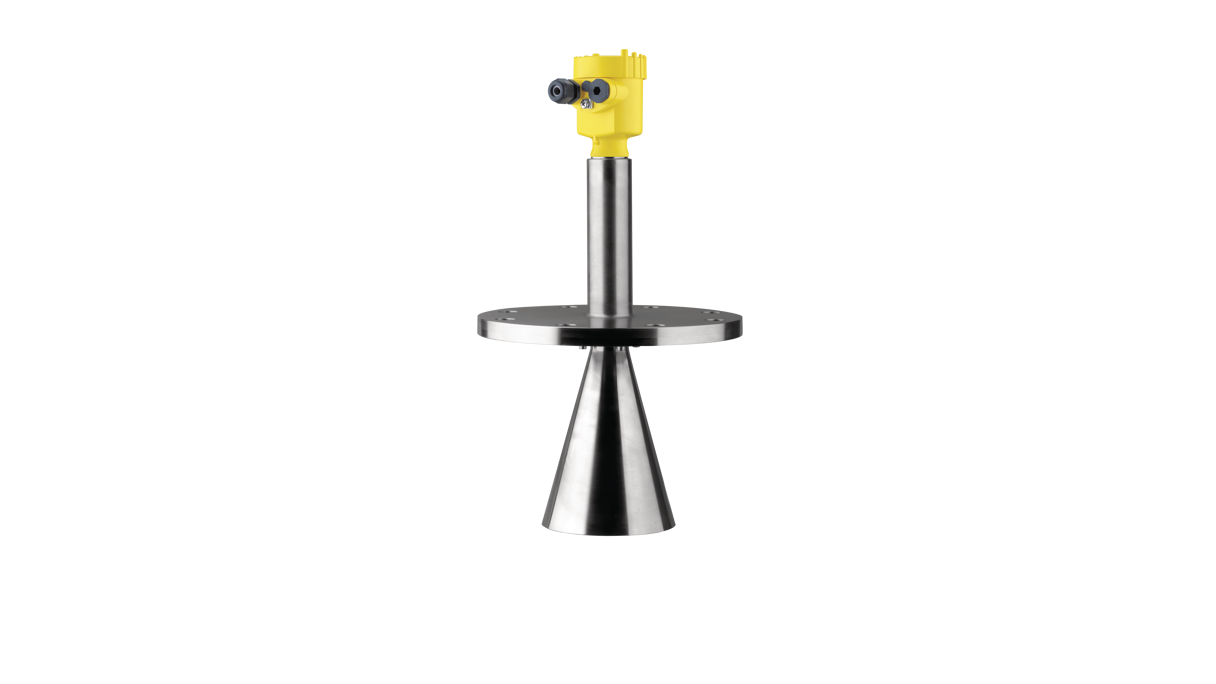

Insatech VEGAPULS 66 7

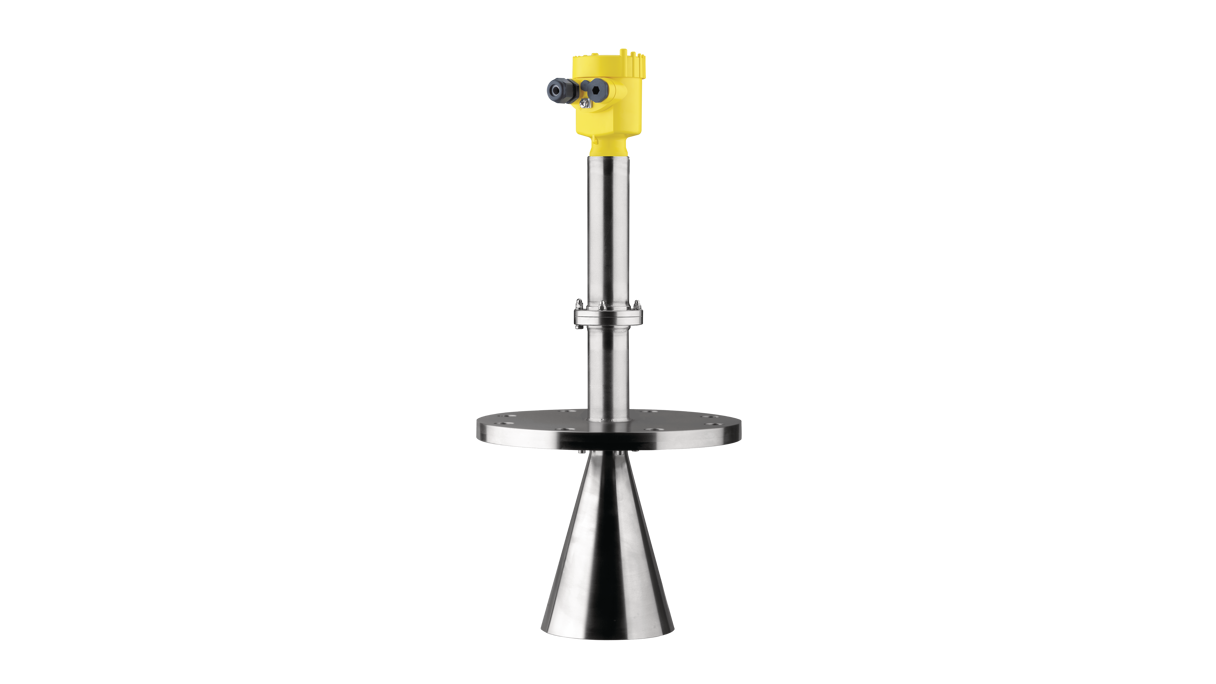

Insatech VEGAPULS 66 8

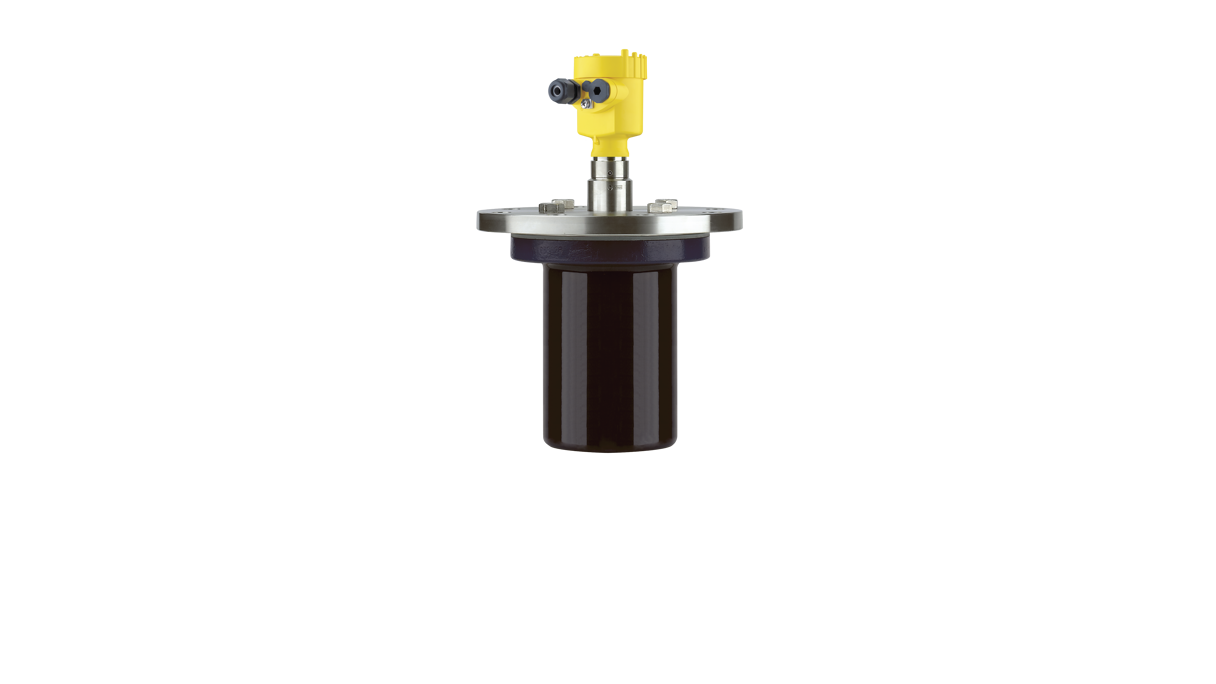

Insatech VEGAPULS 66 9
Insatech VEGAPULS 66 2
Insatech VEGAPULS 66 3
Insatech VEGAPULS 66 4
Insatech VEGAPULS 66 5
Insatech VEGAPULS 66 6
Insatech VEGAPULS 66 7
Insatech VEGAPULS 66 8
Insatech VEGAPULS 66 9

Suitable for measuring under difficult conditions

  • Used in process plants under difficult conditions such as troubled surfaces, agitators, obstructions and measurement in standpipes.
  • Low impact on the accuracy of temperature variations or high pressure / vacuum.
  • Independent of varying gas concentrations and different gases.
  • Unaffected by noise and strong air turbulence.
  • Microwaves are not dampened by dust or vapor particles.
  • Antennas and media-affected parts are made of highly resistant materials such as 316L, Hastelloy C22, PTFE or enamel coated.

Easy to commission and service.

  • Can be mounted and adjusted without having to fill or empty the container.
  • Easy setting with display, PC software or HART® terminal.
Insatech Medarbejdere Website MSR
For technical questions

Martin Søvind Jensen


Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

Insatech Medarbejdere Website ASMI
For commercial inquiries

Astrid Mihut


Tel.: +45 5537 2095

Email: Marine@insatech.com



Contact us now

Technical Specifications
Measuring range - Distance

35 m

Process temperature

-60 ... 400 °C

Process pressure

-1 ... 160 bar

Accuracy

± 8 mm

Frequency

6 GHz

Beam angle

≥ 14°

Output
  • 4 … 20 mA/HART - four wire
  • 4 … 20 mA/HART - two wire
  • Modbus
  • Foundation Fieldbus
  • Profibus PA
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Ambient temperature

-40 ... 80 °C
