x|act i

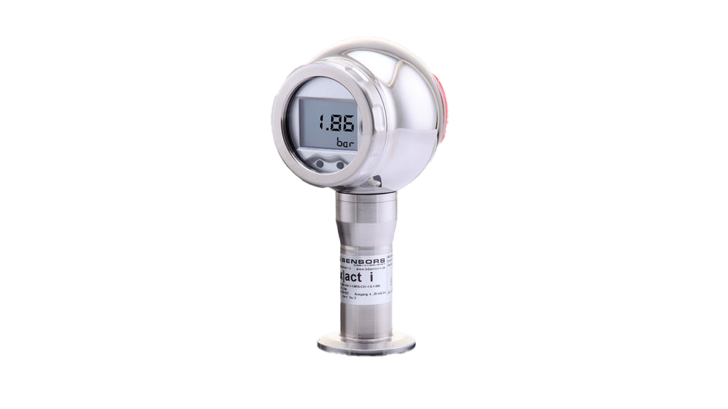

The x|act i from BD Sensors is a pressure transmitter that has been designed for the maritime industry, food industry, pharmacy, and biotechnology. This sensor measures the pressure of a various medias including:
For sales or commercial inquiries please contact us at marine@insatech.com.
The x|act i pressure transmitter is precise and has the following features that benefits you:
Furthermore, we have numerous process connections available e.g. thread or hygienic versions like Varivent, dairy pipe, and Clamp with a flush welded diaphragm. These connections can be merged with a cooling element for media temperatures up to 300 °C.
The x|act i from BD Sensors is applicable in various settings including:
The x|act i sensor is applicable in the settings above because of the robust stainless steel globe housing that has a high ingress protection IP 67. Moreover, the sensor has all the characteristics for a residue-free and antibacterial cleaning.
If you have a certain need the x|act i pressure transmitter is available with optional features like:
| Model/ Type | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure | 511: gauge 512: absolute (Note 1) |
||||||||||||||||||
| Input [bar] | 4000: 0 ... 0.4 (Note 1) |
||||||||||||||||||

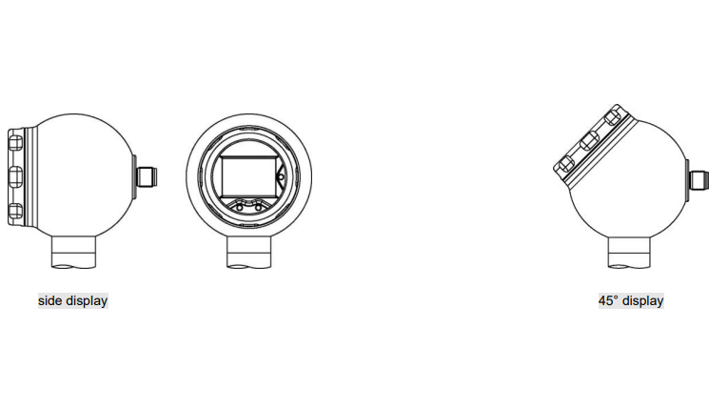

| Design | KH: side display |
||||||||||||||||||
| Output | 1: 4 … 20 mA / 2-wire E: intrinsic safety (ia) and 4 … 20 mA / 2-wire I: intrinsic safety (ia), 4 … 20 mA / 2-wire, and with HART®-communication 1S: (SIL2) 4 … 20 mA / 2-wire ES: (SIL2) intrinsic safety (ia), 4 … 20 mA / 2-wire, and with HART®-communication IS: (SIL2) flameproof equipment (d), 4 … 20 mA / 2-wire, and with HART®-communication 9: customer |
||||||||||||||||||
| Accuracy | 1: 0.1 % FSO |
||||||||||||||||||
| Electrical connection | M10: male plug M12x1 (4-pin), metal 999: customer |
||||||||||||||||||
| Mechanical connection | K31: G1" cone |
||||||||||||||||||
| Diaphragm | 1: stainless steel 1.4435 (316L) H: Hastelloy® T: Tantalum (Note 3) |
||||||||||||||||||
| Seals | 0: without |
||||||||||||||||||
| Filling fluids | 1: silicone oil 2: food compatible oil (FDA) / 3A C: Halocarbon 9: customer |
||||||||||||||||||
| Special version | 000: standard 200: with cooling element up to 300 °C 999: customer |
||||||||||||||||||
| Notes | 1: Absolute pressure possible from 1 bar |
||||||||||||||||||
If you are looking for some specific material, please write to us. Then we will try to find it for you, and send it as soon as possible.
