Actuators are used to open and close valves. They can use different activation methods for example electric current, hydraulic pressure or pneumatic pressure. Actuators are usually used for automation or automatic control purposes. We deliver both pneumatic, electric and hydraulic actuators.

7RESULTATER NULSTIL
169 Sa 10 2

Actuators

AUMA - valve and machine actuators

AUMA has a generally modular product concept. From a wide range of modules, you can tailor actuators for any application. Clear interfaces between the individual components make it possible to utilize the many variants - always with high demands on the quality of the products and the ease of use of the AUMA actuators.

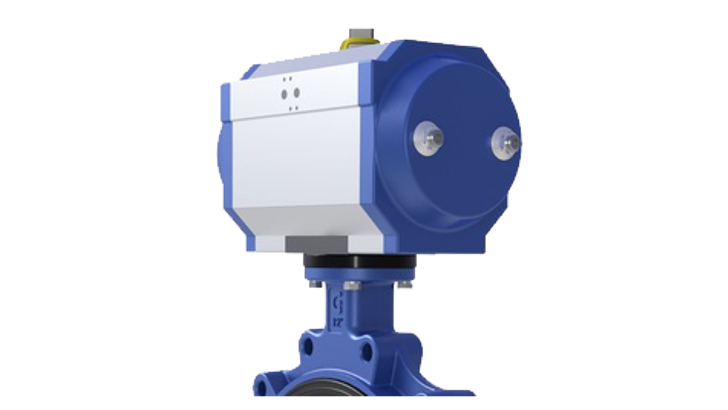

Ghibson Actuator pneumatic

Actuators

Ghibson - Pneumatic actuators

Double and single acting actuators for valves with 90 ° rotation. The side stops can be adjusted by ± 10 ° so that max. rotation is max 110 ° and min. Is 70 °. However, can be changed to higher or lower on request. The actuators are lifetime lubricated.

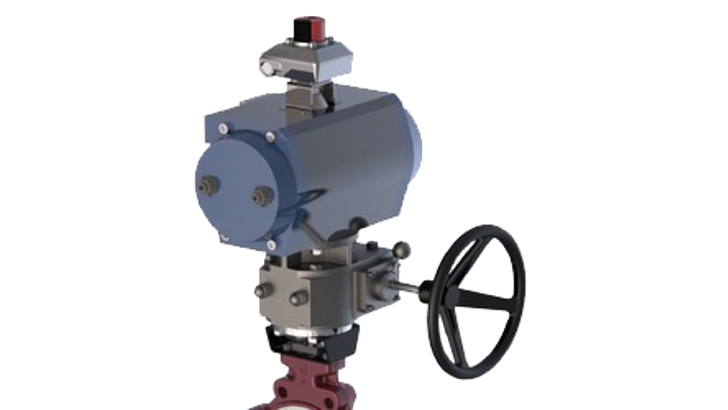

Ghibson Emergency gearbox Actuators

Actuators

Ghibson - Emergency gearbox for pneumatic actuators

It is possible to mount a gearbox between actuator and valve, which can be used in emergency situations, eg. in the absence of compressed air. The gearbox is disconnected during normal operation and can be quickly activated by means of a handle so that the handwheel of the gearbox can be operated.

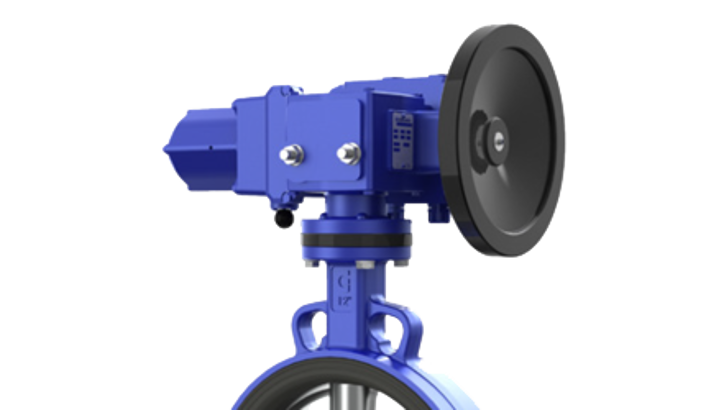

169 Medium Ghibson Actuator Bernard (1)

Actuators

Ghibson - Electric Actuators - Bernard

Electric actuator from Ghibson, adapted to their butterfly valves and ball valves. Media temperature from -20 ° C to + 70 °C and protection class IP 67 (IP 68 on request).

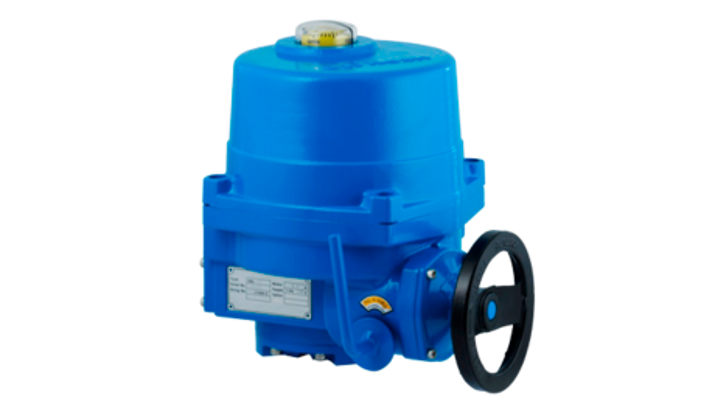

Blue Ghibson actuator model NA

Actuators

Ghibson - Electric Actuators - NA

Quarter-turn electric actuator "NA series" is designed to operate ball valves and butterfly valves. The actuator is strong and robust.

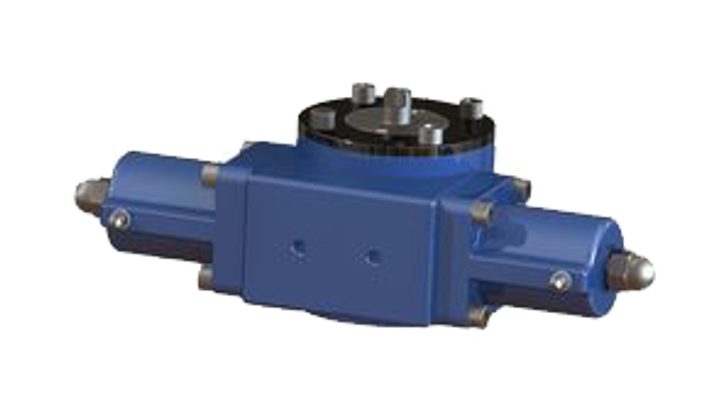

169 Medium Ghibson Actuator ARES

Actuators

Ghibson - Hydraulic actuators

Ghibson’s own manufactured hydraulic actuators (ARES series) are designed to fulfill the specific requirement in industrial applications: compact design and high performance are the main characteristicsof this product range.

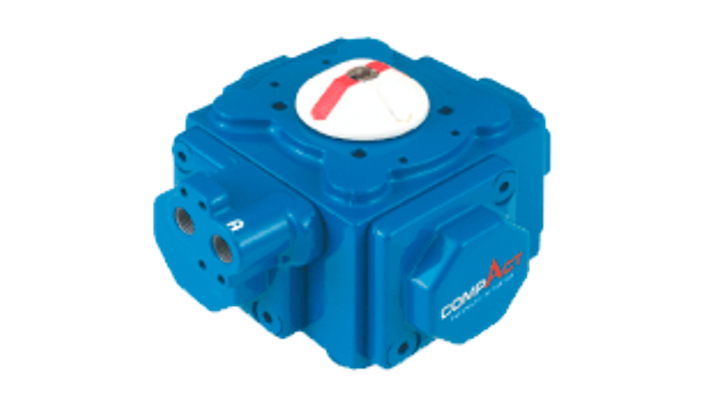

169 Compact2 E1500368004832

Actuators

Habonim - Compact ™ pneumatic actuators

The Compact ™ actuator from Habonim, with its 4-piston design and short piston travel, ensures a fast-acting actuator. The compact design is space-saving and results in approx. double torque versus a corresponding 2-piston actuator. Thus, the same torque can be achieved with a smaller actuator from Habonim, which lowers air consumption per activation.

No results found

What is an Actuator?

An actuator is a component used in engineering and automation that converts energy - whether electrical, pneumatic, hydraulic, or mechanical - into motion or force. In valve applications, actuators enable automatic or remote control of valve position, which improves response time, process efficiency, and reduces the need for manual intervention.

At Insatech, we offer a wide range of actuator technologies, including specialized models like the compact pneumatic actuator, ballast valve actuator, and electric units such as the AUMA actuator, tailored for marine and industrial use.

What’s the Difference Between Electric, Pneumatic, and Hydraulic Actuators?

Electric, pneumatic, and hydraulic actuators are three common types of devices used to operate valves. Below, we provide a brief overview of how each works, along with their advantages and disadvantages.

Electric Actuators

Electric actuators use electricity, typically from the mains or battery, to move the valve via a motor. They convert electrical energy into mechanical motion for precise valve control and are easy to integrate with automation systems like PLCs and SCADA.

See our selection of Actuators

Advantages

  • High positioning accuracy
  • Simple integration with digital systems
  • Low maintenance compared to pneumatic or hydraulic types

Disadvantages

  • Dependent on a stable power supply
  • May react slower in large-scale applications
  • Can overheat under continuous or high-duty operation

Pneumatic Actuators (Air)

Pneumatic actuators use compressed air to generate linear or rotary movement. Models like the compact pneumatic actuator and Habonim compact actuator are especially popular for their speed and compact form factor, ideal in industrial and marine settings.

See our selection of Actuators

Advantages

  • Quick response time
  • Reliable in explosive or harsh environments
  • Ideal for systems like ballast valve actuators

Disadvantages

  • Limited force output
  • Performance can be affected by air quality (moisture or dirt)

Hydraulic Actuators (Fluid)

Hydraulic actuators use pressurized fluid—typically oil—to create powerful movement. They are often found in heavy-duty industrial valve systems requiring high torque.

See our selection of Actuators

Advantages

  • High force and torque output
  • Well suited for large valves and harsh environments

Disadvantages

  • Prone to fluid leaks
  • More complex and maintenance-intensive
  • Environmental considerations with hydraulic fluids

Choosing the Right Actuator

Whether you're selecting a compact actuator for industrial valves or a large hydraulic unit, the choice depends on:

  • Application requirements (e.g., ballast systems, cleanroom, automation)
  • Available energy sources (electricity, air, oil)
  • Control integration (manual vs. automated)
  • Required force/torque
  • Environmental conditions (humidity, explosion risk)

Our team helps you choose the best fit - whether it’s a Habonim compact actuator, AUMA actuator, or a robust pneumatic unit for marine applications.
