The AIRMATIC electro-pneumatic safety valve is based on the CSV models from Carraro. The valve is fitted with a pneumatic servomotor, which is activated via a switch. This results in a controlled modulating opening / closing of the safety valve.

Carraro - type CS 71 is a safety valve for pressure equalization from Carraro type CS 71 for steam, gas and liquids. Can only be supplied with cap / hood.

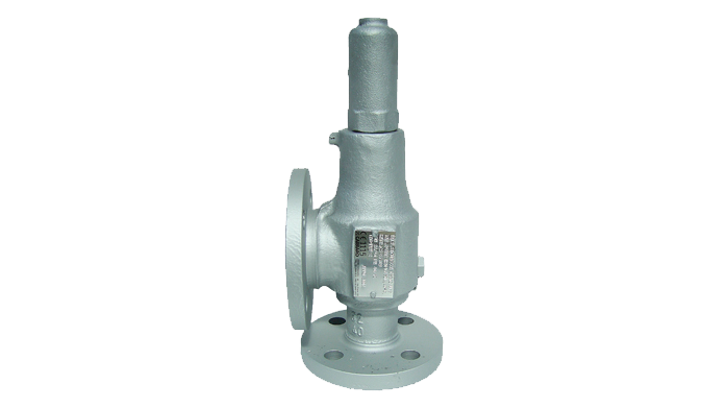

Carraro safety valve type CS 30-31 in compact design. Type 30 with open spring housing for air, steam and non-hazardous gases and type 31 with closed spring housing for liquids, hazardous vapors and gases. Can be supplied with cap or handle.

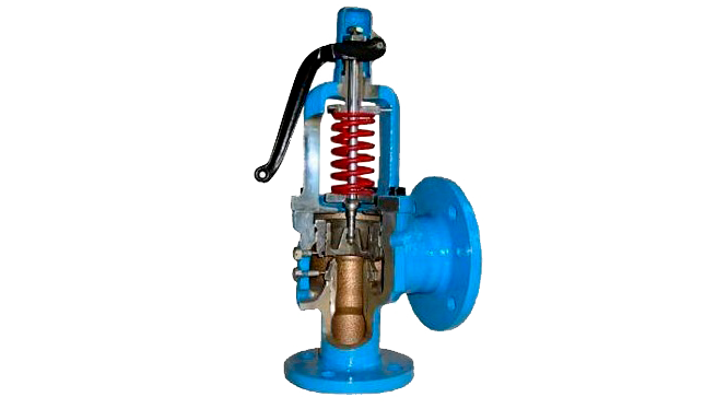

Safety valves steam and gases. Type CSV 55 is made of cast iron and with open spring housing. Type CSV 88 is made of cast steel, also with open spring housing. Both types are suitable for steam and non-hazardous gas applications. Can be supplied with cap / hood or handle.

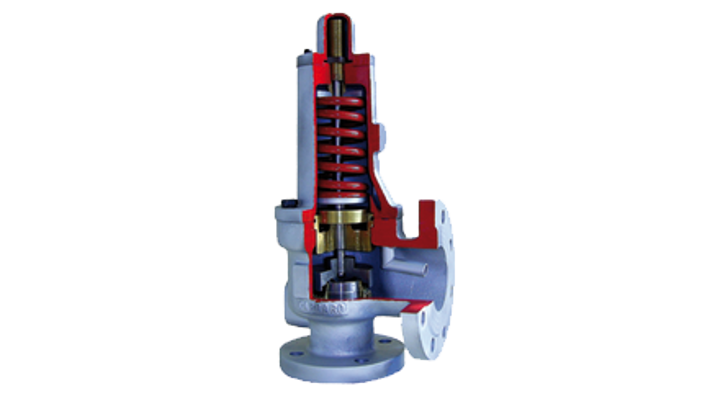

Carraro safety valve type CS 50/80/91 in compact design. Type CS 50 and CS 80 with open spring housing for air, steam and non-hazardous gases and type CS 91 with closed spring housing for liquids, hazardous vapors and gases. Can be supplied with cap / hood or handle.

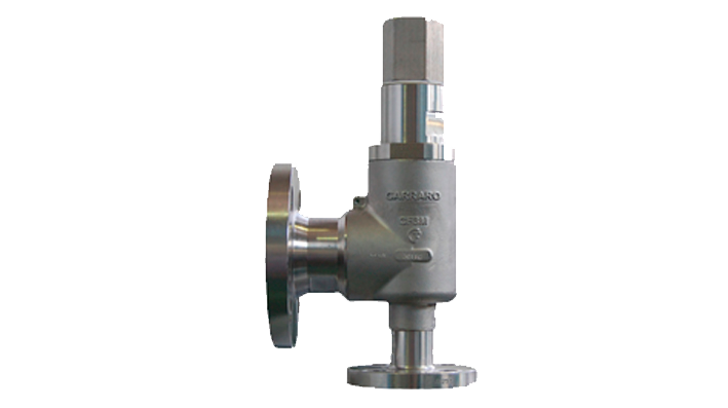

The proportional safety valve type CS 35 gradually opens from the set pressure to full lift at 10-20 % overpressure and is recommended for viscous liquids such as oil. The insert is provided with holes that guide the cone proportionally and thereby limits the capacity relative to the overpressure. The maintenance of the valve is very simple. Can only be supplied with cap / hood.

The 1900/P Series of safety valves from Consolidated is designed to easily adapt to a wide variety of application requirements and certified for gas, liquid and steam media. The flexible design allows you to easily replace parts and change the valve to other versions, such as converting from conventionak ti bellows design.

The 19000 Series of safety valves from Consolidated gives you seat tightness, blowdown and capacity on all types of media meet industry needs for overpressure protection in chemical, petrochemical, refinery, power generation (nuclear and conventional) and other commercial applications.

AT series even modulating temperature regulator, which utilizes steam pressure as the activating force. The reason for the rapid reaction is due to bellows seal, calibrated spring and the low thermal inertia. All of this makes the regulator respond quickly to very small deviations at the controlled temperature.

This valve type MAXOMATIC is characterized by the fact that there are no mechanical moving parts or sliding guides, thereby ensuring an extended service life and a unique reliability.

The M51 series is mechanically directly controlled pressure relief / pressure reduction valve. Single or double seat.

With valves in the UBB series, it is possible to achieve two different kinds of functions: Can work as a spring-loaded, direct acting pressure-reducing regulator or as a pressure-relief valve. The valve acts both pressure-reducing and counter-pressure controlling.
