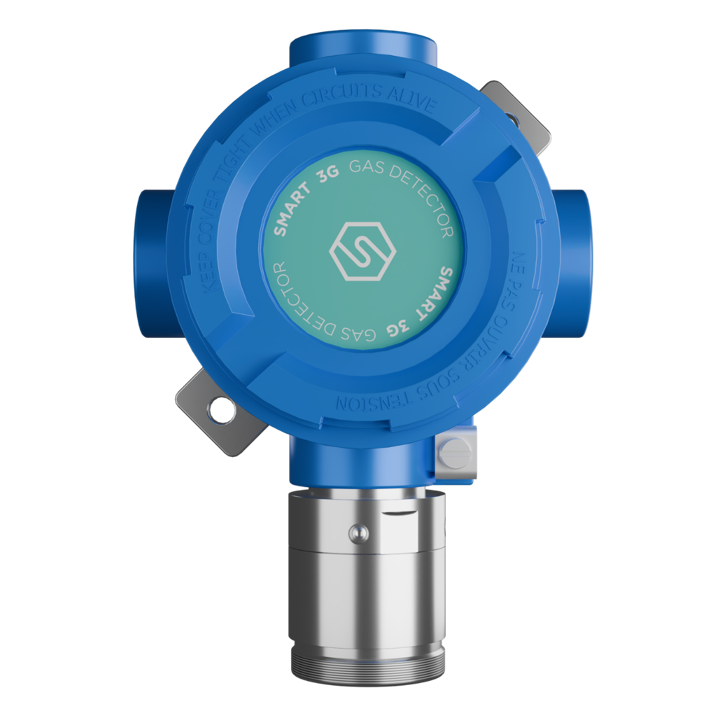

Sensitron SMART 3G C2

The Sensitron SMART 3G C2 is a fixed gas detector for Zone 1 hazardous areas, certified to ATEX Category 2 and rated SIL2 (hardware) / SIL3 (software). It detects flammable, toxic, VOC, and refrigerant gases across four sensor technologies - catalytic, infrared, electrochemical, and PID - and includes an integrated data logger exportable via STS/CKD-OLED or STS/CSW+ software.

Key Advantages:

Zone 1 / ATEX Category 2 certified for hazardous area installations
Four sensor technologies covering flammable, toxic, VOC, and refrigerant gases
Integrated data logger - exportable via STS/CKD-OLED or STS/CSW+
BIM files available for BIM-documented installations
SIL2 / SIL3 rated for functional safety requirements
Standard 4–20 mA output with optional 1- or 3-relay output card
Optional RS485 / Modbus communication
Continuous self-diagnostics with zero follower drift compensation

We deliver directly and globally to end-users, agents, and resellers.
Contact us at quotes@insatech.com.

Request a quote for the Sensitron SMART 3G C2

Detectable gases

The SMART 3G C2 is available in sensor-specific variants. The gas type must be matched to the correct sensor at time of order.

Catalytic sensor: Flammable gases: methane (CH₄), LPG, butane, propane, and other hydrocarbons

Electrochemical cell: Toxic gases and oxygen: carbon monoxide (CO), ammonia (NH₃), oxygen (O₂), and others

Electrochemical cell (intrinsically safe): Chlorine (Cl₂), sulphur dioxide (SO₂), nitrogen dioxide (NO₂)

Infrared (IR): Flammable gases, CO₂, SF₆, and refrigerant gases

PID: VOC (volatile organic compounds)

Zone 1 Gas Detection Across Marine and Industrial Installations

The SMART 3G C2 shares the same Zone 1 / Category 2 certification and sensor platform as the SMART 3G D2 and C2 LD, making all three suitable for the same classified hazardous areas. The choice between models comes down to housing form factor, data logging requirements, and specific installation constraints - rather than gas type coverage or certification level, which are consistent across the range.

For marine applications, Zone 1 hazardous area detectors are typically required in engine rooms, pump rooms, battery compartments, refrigeration machinery spaces, and other enclosed areas where flammable or toxic gas accumulation is possible in normal operating conditions. The C2's wide sensor range - covering ammonia, methane, carbon monoxide, oxygen, refrigerants, and VOCs - makes it a practical choice for installations covering multiple gas hazard types within a single vessel.

Choosing Between the SMART 3G C2, C2 LD, and D2

All three models are Zone 1 / ATEX Category 2 detectors with identical sensor technology options and certifications. The practical differences are:

SMART 3G D2 - Standard Zone 1 detector without data logger. The D2 features a 4-digit display and 5 status LEDs as standard, and non-intrusive calibration via magnetic pen.

SMART 3G C2 - Zone 1 detector with integrated data logger, exportable via STS/CKD-OLED or STS/CSW+. Also available with BIM files for building information modelling documentation.

SMART 3G C2 LD - Zone 1 detector with integrated data logger in a different housing configuration from the C2. Suited to installations where the C2 LD enclosure is the preferred or required form factor.

If you are unsure which model suits your installation or vessel type, contact our team and we will advise based on your specific requirements and any existing Sensitron equipment on board.

Have a question about the Sensitron SMART 3G C2?

Our technical team can help you confirm the right model for your installation, select the correct sensor configuration, and provide pricing and availability.

For technical questions

Martin Søvind Jensen

Tel: +45 2761 4502

Email: Marine@insatech.com

Write to Martin

For commercial inquiries

Our team of Sales Specialists

Tel.: +45 5537 2095

Email: quotes@insatech.com

Worldwide delivery from Insatech

Insatech delivers products to customers worldwide, supporting both individual product orders and ongoing supply needs for businesses, resellers, and agents.

We regularly supply customers across Europe, North America, the Middle East, and Asia-Pacific, including Germany, Spain, Italy, the USA, Canada, the UAE, Singapore, the Netherlands, the United Kingdom, Greece, India, Hong Kong, France, Norway, Sweden, Poland, Latvia, Japan, Portugal, Cyprus, Belgium, and Australia.

With reliable international delivery and experience handling global orders, we help ensure that the products you need can reach you wherever your business is located.

See how we deliver worldwide

We Deliver Directly to End Customers, Resellers, and Agents – Globally

At Insatech, we are proud to offer our high-quality products to all customers worldwide. Whether you’re an end customer, a reseller, or an agent, you can purchase directly from us.

By choosing us, you gain direct access to all our products, eliminating the need for intermediaries. Our global distribution possibilities ensure fast and reliable delivery to your doorstep, wherever you are.

We strive to make it easy for you as an end consumer to find the products you are looking for while supporting agents and resellers looking to grow their business. Whether you’re buying for your use or resale, we’re here to meet your needs.

Discover how simple it is to work directly with a trusted global distributor – shop with confidence at Insatech today!

Technical Specifications
Application	Zone 1, Category 2 (classified and non-classified areas)
Gas types detected	Flammable, toxic, VOC, refrigerant
Sensor technologies	Catalytic bead, infrared (IR), electrochemical cell, PID
Output signal	Standard 4–20 mA (3-wire)
Relay outputs	Optional 1- or 3-relay output card
Communication	Optional RS485 / Modbus protocol
Data logger	Yes - exportable via STS/CKD-OLED or STS/CSW+
BIM files	Available
Calibration	Standard calibration procedure
Self-diagnostics	Continuous
Drift compensation	Zero follower function
ATEX certification	II 2G Ex db IIC T5 Gb (standard)
ATEX (IS version)	II 2G Ex db [ib] IIC T6 Gb (intrinsically safe sensors)
Optional ATEX	II 2G D (dust) with optional adapter
SIL rating	SIL2 hardware / SIL3 software

Datasheets

SMART3G-C2 - Catalytic Sensor
English | pdf

Download
SMART3G-C2 - Electrochemical Sensor
English | pdf

Download
SMART3G-C2 - Intrinsically Safe Detector
English | pdf

Download
SMART3G-C2 -Infrared Sensor
English | pdf

Download
