Understanding the Construction of the BilgMon 488

Technical Overview, System Architecture, and Functional Design

The BilgMon 488 is one of the most widely used 15 ppm bilge alarm monitors in the marine industry. Built for reliability, compliance, and ease of maintenance, the system is engineered to ensure accurate monitoring of oil-in-water content in bilge discharges. Its construction consists of two compact but highly specialised components: the MASTER unit and the SENSOR unit, each designed to perform specific roles within the monitoring system.

This article explains how the BilgMon 488 is constructed, how the two units communicate, and why this architecture makes the system exceptionally robust and service-friendly.

For related technical resources, see also:

You may also explore the product pages:

Martin Søvind Jensen

Product Manager

Tel: +45 2761 4502

Email: Martin.Sovind@insatech.com

Write to Martin

1. Overview of the BilgMon 488 System

The BilgMon 488 is designed to monitor the oil concentration in bilge water and ensure compliance with IMO MEPC requirements for discharging bilge water (≤15 ppm). The system logs key data such as alarm events, timestamps, valve activations, and discharge records.

Its construction focuses on three core principles:

Accuracy - Reliable turbidity measurement
Safety - Hermetically sealed sensor electronics
Ease of maintenance - Quick measuring cell replacement and minimal service requirements

These principles are reflected in the split-unit architecture of the system.

2. The Two Main Components of the BilgMon 488

The BilgMon 488 is built around two primary units, each performing different functions:

The MASTER Unit
The SENSOR Unit

This division ensures operational stability, easy onboard service, and compliance with mandatory data recording requirements.

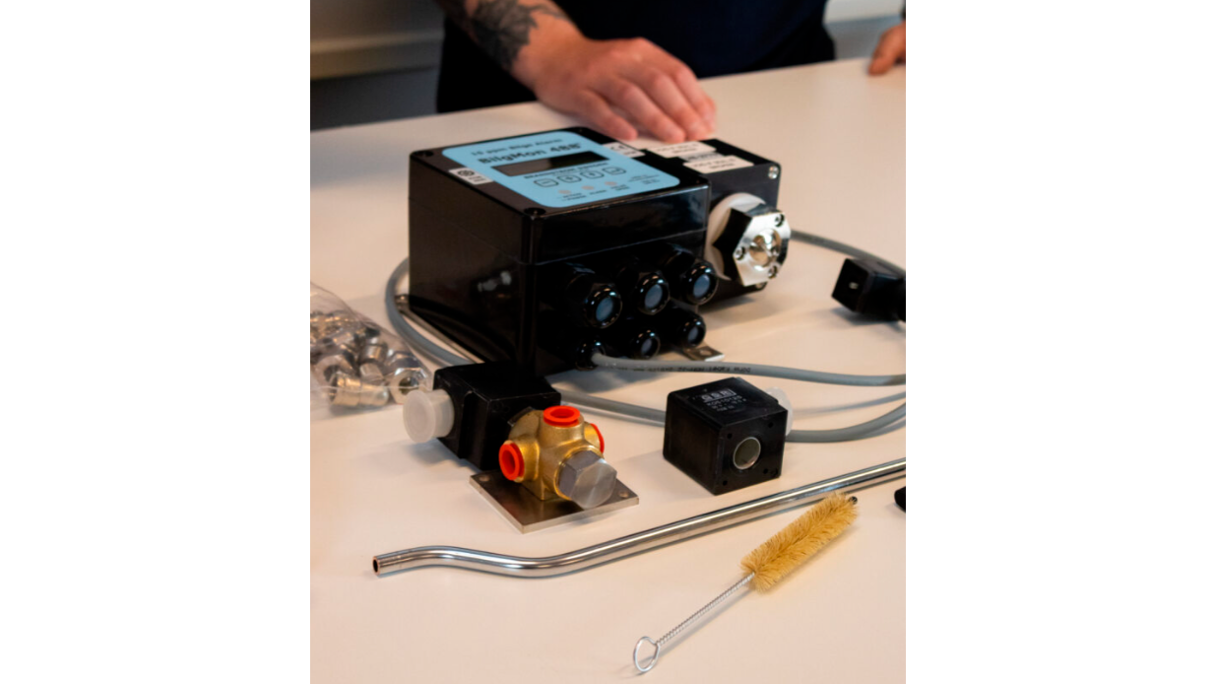

Insatech Brannstrom Bilge Monitor 15Ppm 16 9

3. The MASTER Unit

Control, Data Storage, Display, and User Interface

The MASTER unit acts as the brain of the BilgMon 488 system. It is responsible for running the monitoring process, handling alarms, logging data, and communicating with the ship’s bilge water discharge system.

Key Construction Features

LCD Display - Provides clear readings, menu navigation, alarm status, and maintenance information.
Button Interface - Allows the user to access system menus, initiate cleaning cycles, perform calibration checks, and view sensor information.
LED Indicators - Show operational status, alarms, and system readiness.
Main Electronics - Handle all signal processing from the SENSOR unit and control bilge discharge logic.
Internal Data Memory - Logs all alarm events and discharge records; located in the lid of the MASTER housing.
Power Supply Options - Available in 24 V or 115/230 V versions to support any vessel configuration.

Why the MASTER Unit Is Crucial

The MASTER unit ensures that all data required by IMO and class societies is recorded securely.
Because the data memory is built into the lid, crews can replace other components without compromising stored records.

You can review the dedicated product page here:

BilgMon 488 MASTER Unit

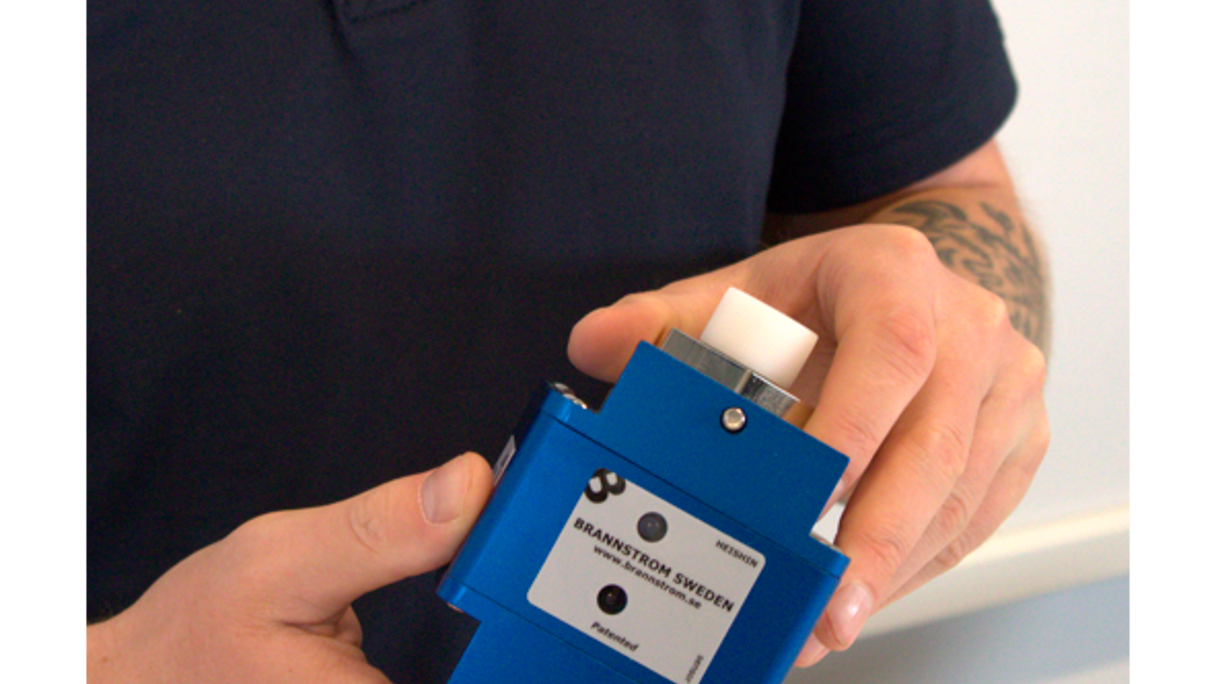

4. The SENSOR Unit

Measurement Electronics, Calibration Data, and Sample Handling

The SENSOR unit performs the core turbidity measurement and determines whether the bilge water exceeds the 15 ppm discharge limit.

Construction Details

Hermetically Sealed Housing - Protects internal electronics from moisture, vibration, and contamination.
Integrated Pipe Fittings - Ensure easy installation into existing bilge water piping systems and compatibility with all OWS (Oil Water Separators).
Internal Calibration Data - The measuring cell stores its own calibration information, which the MASTER unit reads wirelessly.
Optical Measurement Chamber - The glass tube inside the sensor enables precise turbidity measurement using transmitted light technology.
Wireless Communication - No connectors between MASTER and SENSOR units, ensuring long-term durability and eliminating failure points caused by moisture ingress.

Important notes

The sensor is completely sealed and must never be opened.
When the 5-year calibration certificate expires, the entire sensor unit must be replaced.
Replacement takes only a few minutes and requires no reconfiguration of the MASTER unit.

Explore the sensor unit product pages:

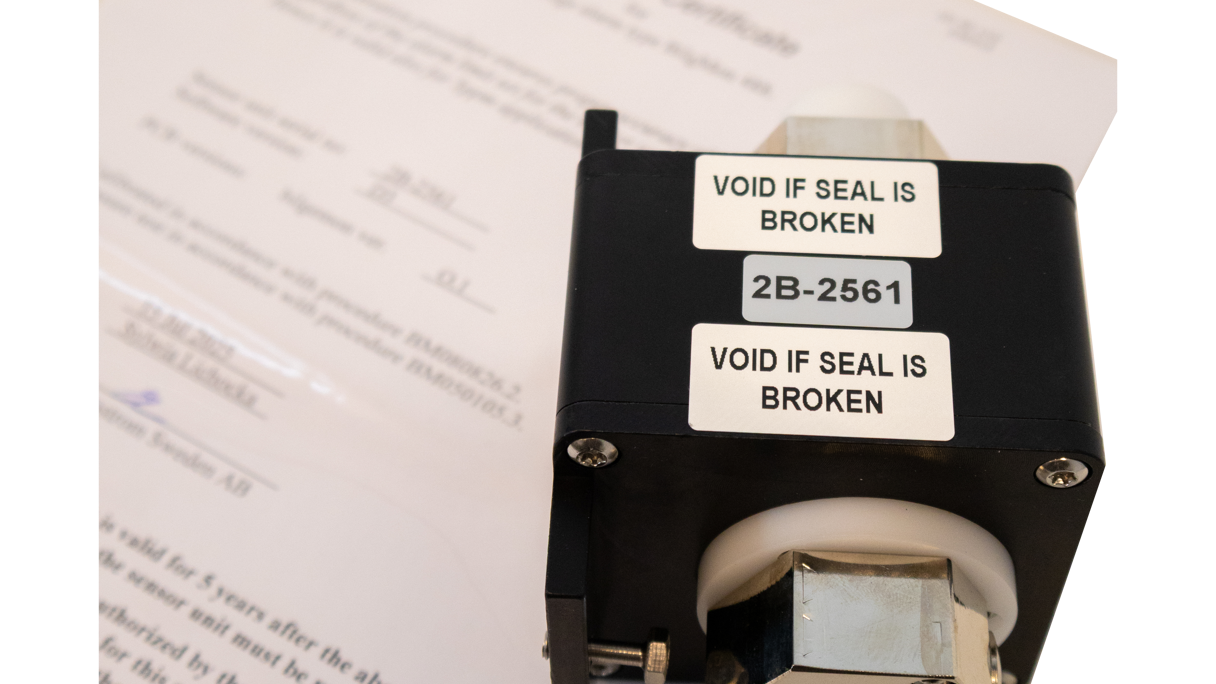

Brannstrom Sensor Unit Black Certificate (1)

5. Wireless Communication Between Units

One of the defining features of the BilgMon 488 is the wireless communication between the SENSOR unit and the MASTER unit.

Benefits of a Wireless Link

No cable glands or connectors that can corrode
No risk of water ingress in electrical joints
No need for recalibration after installation
Long-term stability in harsh engine room environments

This architecture is a major reason for the BilgMon 488’s reputation for reliability and low maintenance requirements.

6. Why the Construction Matters

The design of the BilgMon 488 offers several advantages:

Fast installation (see How to Install the BilgMon 488)
Minimal maintenance due to sealed electronics
Quick measuring cell replacement when the calibration certificate expires
Improved operational uptime
Simplified troubleshooting and onboard handling

The combination of a modular design, sealed sensor, and robust data logging makes the BilgMon 488 a preferred choice for shipowners, yards, and service technicians worldwide.

7. Summary

The BilgMon 488 is constructed around two highly specialised units - the MASTER unit and the SENSOR unit - working together via a wireless connection.

The MASTER unit manages control, logging, alarms, and user interaction.
The SENSOR unit performs accurate turbidity measurement and securely stores calibration data.
The sensor is hermetically sealed, maintenance-friendly, and replaced every five years with a new calibration certificate.
The complete system is compact, robust, and ideal for retrofit installation on any OWS.
